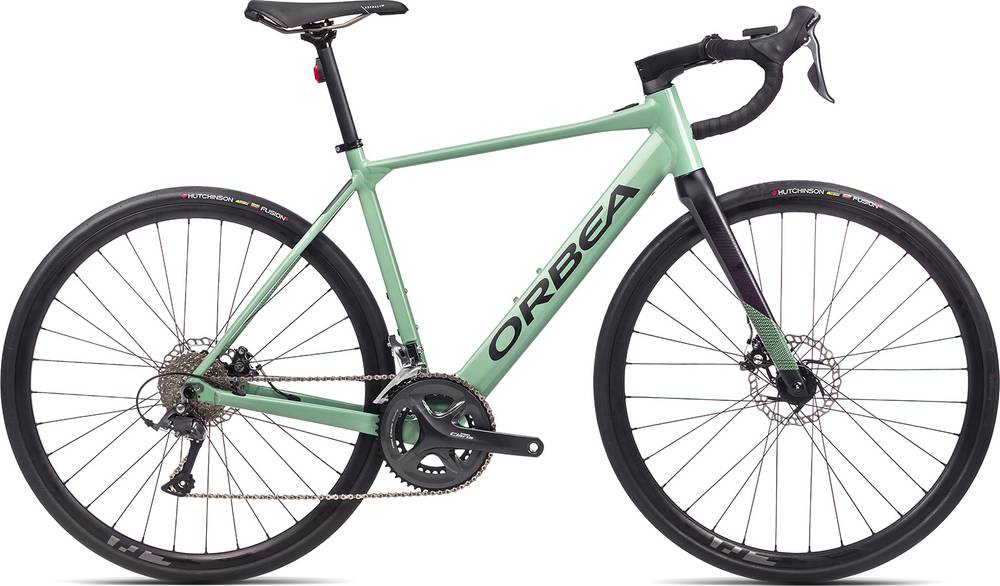

Orbea GAIN D50 20mph 2021
2021 E-bike
Estimate price |
2,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.
Suspension Fork
Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-GS
Front Derailleur
Shimano Claris FD-R2000-F
Shift Levers
Shimano Claris ST-R2000
Cassette
Shimano HG50 11-32t 8-Speed
Crank
Shimano Claris R2000 34x50t
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X8
Wheels
Rims
Ready GR
Tires
Hutchinson Fusion 5 Performance TLR 700x30
Brakes
Brakes
Shimano BR-RS305 Mechanical Disc
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
OC1 Road, reach 80mm, drop 125mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 579 mm | 593 mm | 608 mm | 627 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 58 mm | 58 mm | 54 mm |
| Stack | 517 mm | 542 mm | 567 mm | 592 mm | 617 mm |
| Reach | 358 mm | 369 mm | 380 mm | 391 mm | 402 mm |
| Top Tube Length | 499 mm | 522 mm | 539 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 97 mm | 122 mm | 146 mm | 172 mm | 196 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 980 mm | 994 mm | 1009 mm | 1028 mm | 1042 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 744 mm | 768 mm | 795 mm | 821 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN D50 20mph is part of the Orbea E Gain model. 78 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Orbea GAIN D50 2021 is the cheapest e-bike model and costs 2869$. Orbea GAIN M10i 20mph 2021 is the most expensive one and costs 9999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orbea GAIN D50 20mph price was 2999$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN D50 20mph price is 26.71% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
GAIN D50 20mph has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The GAIN D50 20mph 2021 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN D50 20mph comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
