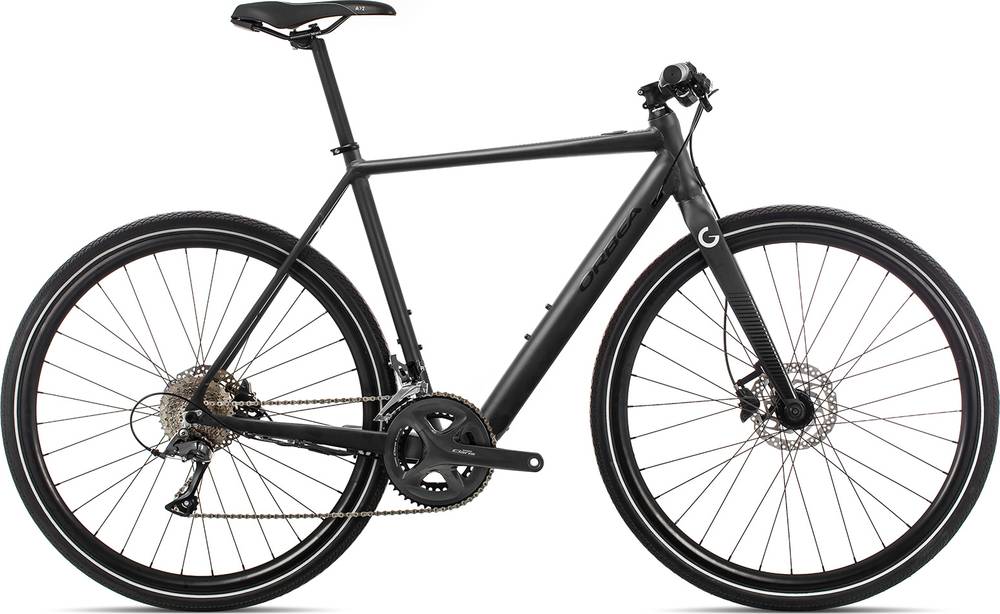

Orbea GAIN F30 20mph 2020
2020 E-bike
Estimate price |
2,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A ANT+ -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Hydro, Aluminum 6000 series, Orbea Tube Shaping, Flat Mount Disc Brakes, 135x9 QR, Carrier and Mudguards compatible, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, in
Suspension Fork
Speed 400mm Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-GS
Front Derailleur
Shimano Claris FD-R2000-F
Shift Levers
Shimano Claris SL-R2000
Cassette
Shimano HG50 11-34t 8-Speed
Crank
Shimano Claris R2000 34x50t
Chain
KMC X8
Pedals
VP-537 Black
Wheels
Rims
Airline Corsa
Tires
Kenda K1067 700x38C Reflective type+puncture protection
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy 31.8mm Riser 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Scientia A2
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.53 mm |
| Front Center | 746 mm | 751 mm | 767 mm | 780 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | -109 mm | -111 mm | -113 mm | -112 mm | -119 mm |
| Stack | 527 mm | 547 mm | 567 mm | 592 mm | 617 mm |
| Reach | 370 mm | 379 mm | 387 mm | 394 mm | 402 mm |
| Top Tube Length | 514 mm | 538 mm | 552 mm | 566 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 555 mm | 585 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.3 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 176 mm | 203 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1008 mm | 1014 mm | 1029 mm | 1043 mm | 1059 mm |
| Standover Height | 746 mm | 774 mm | 807 mm | 821 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN F30 20mph belongs to the Orbea E Gain model. Orbea launched 78 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Orbea GAIN F30 20mph 2020 is the most affordable e-bike of this model and has a price of 2699$. On the other hand, Orbea GAIN M10i 20mph 2020, is the most expensive and costs 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 2699$. In conclusion, this e-bike price is 40.79% lower than the price of the average Endurance e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
GAIN F30 20mph has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the GAIN F30 20mph model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
GAIN F30 20mph comes in 5 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
