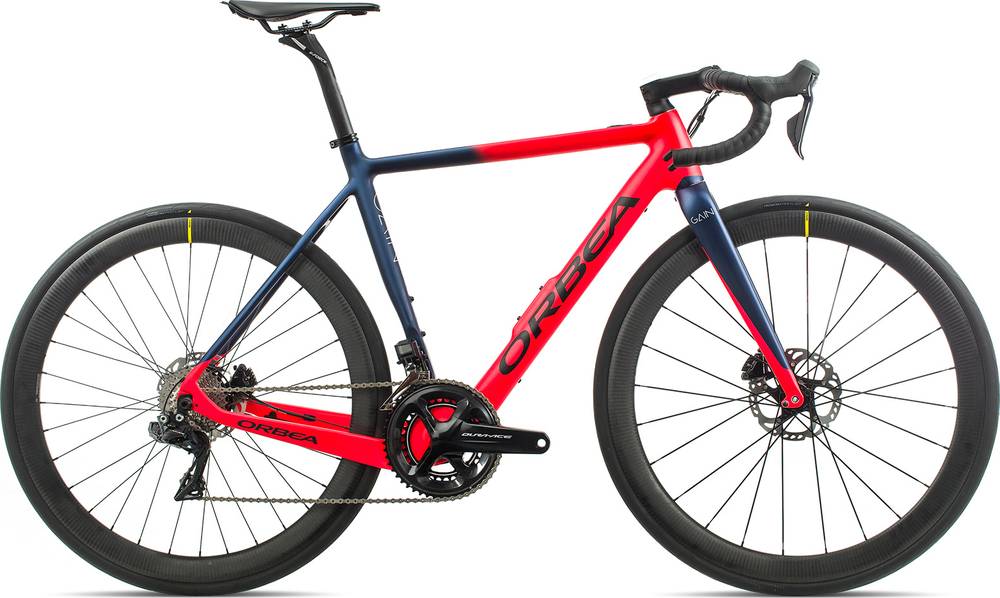

Orbea GAIN M10i 20mph 2020
2020 E-bike
Estimate price |
8,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A ANT+ -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135x9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Suspension Fork
Gain Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9150 Di2
Front Derailleur
Shimano Dura-Ace 9150 Di2
Shift Levers
Shimano R9170
Cassette
Shimano Dura-Ace R9100 11-30t 11-Speed
Crank
Shimano Dura-Ace 9100 34x50t
Chain
Shimano HG 901
Wheels
Rims
Mavic Cosmic Pro Carbon Disc UST
Tires
Mavic Yksion Pro 700x28 UST
Brakes
Brakes
Shimano R9170 Hydraulic Disc
Cockpit
Stem
OC2 Road -8º
Handlebar
OC2 Road Carbon, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Fizik Antares R5 Versus EVO Regular
Seatpost
FSA K-Force SB25 31.6x350mm Di2 compatible
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 580 mm | 590 mm | 598 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 74 mm | 64 mm | 58 mm | 54 mm |
| Stack | 517 mm | 532.2 mm | 552.1 mm | 567 mm | 581.5 mm |
| Reach | 357 mm | 362.2 mm | 377.4 mm | 392 mm | 409.6 mm |
| Top Tube Length | 519.9 mm | 530 mm | 551.5 mm | 570.8 mm | 593 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 555 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 71 ° | 71.9 ° | 72.5 ° |
| Head Tube Length | 98.7 mm | 115 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1007 mm | 1018 mm | 1026 mm | 1036 mm | 1053 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 717 mm | 743 mm | 767 mm | 780 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN M10i 20mph completes the Orbea E Gain model. Orbea released 78 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Orbea GAIN F30 20mph 2020 is the most economical model, with a starting price of 2699$. Orbea GAIN M10i 20mph 2020 on the other hand costs 8999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 8999$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN M10i 20mph price is 136.82% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
GAIN M10i 20mph components
Fork material
GAIN M10i 20mph has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The GAIN M10i 20mph 2020 e-bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN M10i 20mph comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Orbea GAIN M10i 20mph e-bike has 5 sizes, in the range of 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
