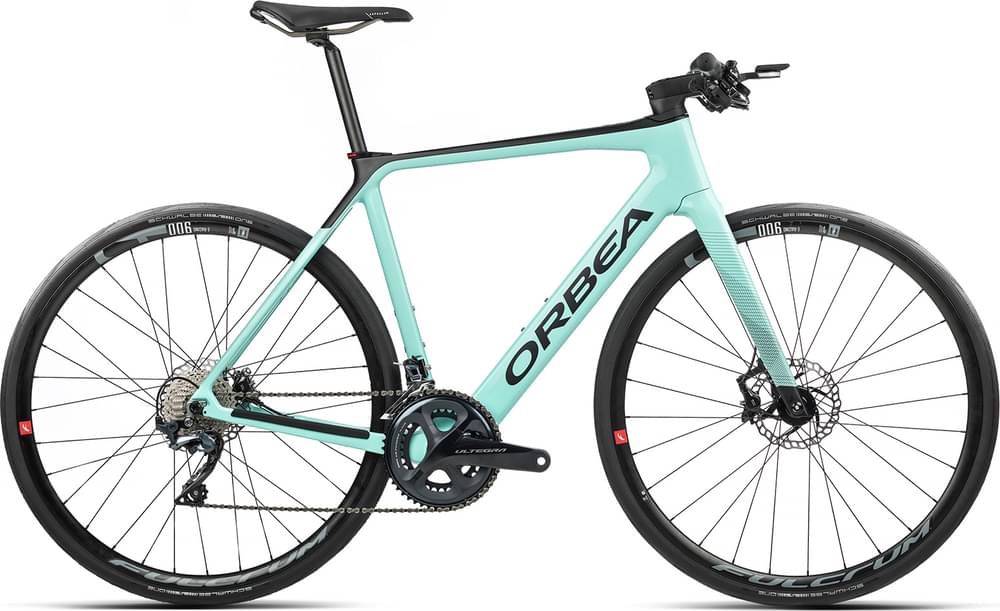

Orbea GAIN M20 Flat Bar 2021
2021 E-bike
Estimate price |
5,753$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Suspension Fork
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano SL-SR700
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Rims
FULCRUM E-Racing 900
Tires
Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX
Brakes
Brakes
Shimano XT M8100 Hydraulic Disc
Cockpit
Stem
Orbea ICR -8º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
OC2 Carbon 27.2 Offset 20
Motor & Battery
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Remote
Ebikemotion Pulsar One monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 578 mm | 593 mm | 613 mm | 632 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 53 mm | 53 mm | 56 mm |
| Stack | 529 mm | 554 mm | 579 mm | 604 mm | 629 mm |
| Reach | 370 mm | 381 mm | 392 mm | 403 mm | 414 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 95 mm | 120 mm | 146 mm | 172 mm | mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 990 mm | 1004 mm | 1025 mm | 1044 mm | 1052 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 712 mm | 789 mm | 823 mm | 843 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
Model Overview
GAIN M20 Flat Bar belongs to the Orbea E Gain model. There are 78 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Orbea GAIN D50 2021 has a starting price of 2869$. Orbea GAIN M10i 20mph 2021 on the other hand is the most expensive at 9999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Orbea released this model in 2021, its price was 5229$. In conclusion, this e-bike price is 37.61% higher than the price of the average Endurance e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
GAIN M20 Flat Bar has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the GAIN M20 Flat Bar model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN M20 Flat Bar comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
