Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135x9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Suspension Fork
Gain Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano ST-8020
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Chain
KMC e11 Turbo Silver
Pedals
N/A
Wheels
Front Hub
Orbea Road 12x100mm, thread M12xP1.5
Rims
Mavic Aksium Elite Disc UST
Tires
Mavic Yksion Pro 700x28 UST
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
FSA Energy
Handlebar
FSA Energy Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Kappa Space STN size 147mm
Seatpost
Orbea OC-III Carbon 31.6x350mm
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 580 mm | 590 mm | 598 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 74 mm | 128 mm | 58 mm | 54 mm |
| Stack | 517 mm | 532.2 mm | 552.1 mm | 567 mm | 581.5 mm |
| Reach | 357 mm | 362.2 mm | 377.4 mm | 392 mm | 409.6 mm |
| Top Tube Length | 519.9 mm | 530 mm | 551.5 mm | 570.8 mm | 593 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 555 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 67.1 ° | 71.9 ° | 72.5 ° |
| Head Tube Length | 98.7 mm | 115 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1007 mm | 1018 mm | 1026 mm | 1036 mm | 1053 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 717 mm | 743 mm | 767 mm | 780 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |

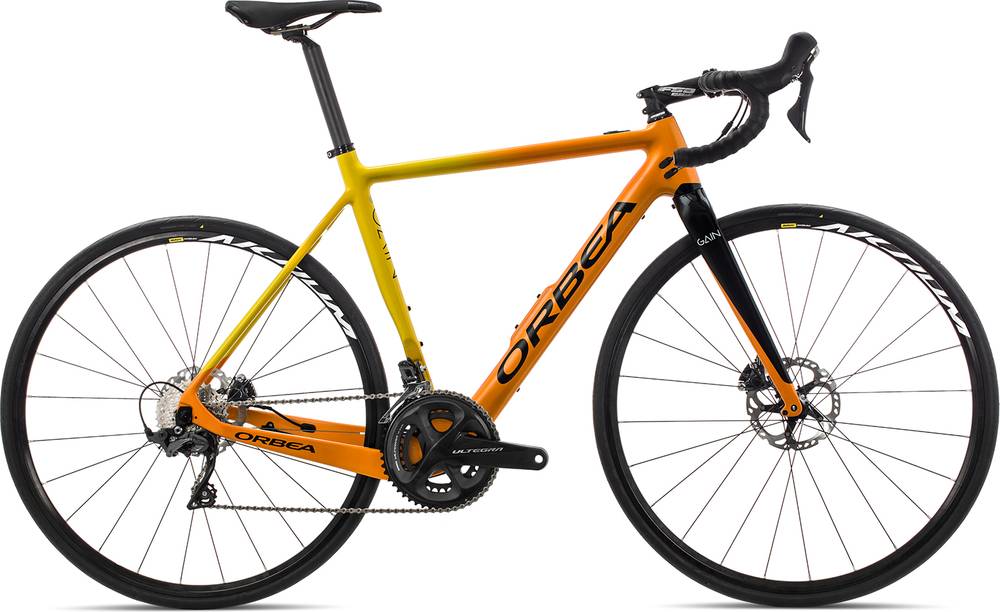

Model Overview
GAIN M20 USA is an Orbea E Gain model. There are 78 e-bikes that carry this model name. Take a sneak peek at all Orbea E Gain e-bikes models from 2019, by clicking here.
Model range prices
Orbea GAIN F30 USA 2019 is the most economical model, with a starting price of 2499$. Orbea GAIN M20i USA 2019 on the other hand costs 5799$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance e-bikes average price
If you want an acceptable Endurance e-bike you should know that the average price is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4799$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN M20 USA price is 26.29% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
GAIN M20 USA components
Fork material
GAIN M20 USA has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on GAIN M20 USA are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea GAIN M20 USA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
GAIN M20 USA comes in 5 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
