Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135x9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Suspension Fork
Gain Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano ST-7020
Cassette
Shimano 105 R7000 11-32t 11-Speed
Crank
Shimano 105 R7000 34x50t
Chain
KMC e11 Turbo Silver
Pedals
N/A
Wheels
Front Hub
Orbea Road 12x100mm, thread M12xP1.5
Rims
Mavic Aksium Elite Disc UST
Tires
Mavic Yksion Pro 700x28 UST
Brakes
Brakes
Shimano R7070 Hydraulic Disc
Cockpit
Stem
Orbea OC-III
Handlebar
FSA Gossamer Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Kappa Space STN size 147mm
Seatpost
Orbea OC-III Carbon 31.6x350mm
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 580 mm | 590 mm | 598 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 74 mm | 128 mm | 58 mm | 54 mm |
| Stack | 517 mm | 532.2 mm | 552.1 mm | 567 mm | 581.5 mm |
| Reach | 357 mm | 362.2 mm | 377.4 mm | 392 mm | 409.6 mm |
| Top Tube Length | 519.9 mm | 530 mm | 551.5 mm | 570.8 mm | 593 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 555 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 67.1 ° | 71.9 ° | 72.5 ° |
| Head Tube Length | 98.7 mm | 115 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1007 mm | 1018 mm | 1026 mm | 1036 mm | 1053 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 717 mm | 743 mm | 767 mm | 780 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |

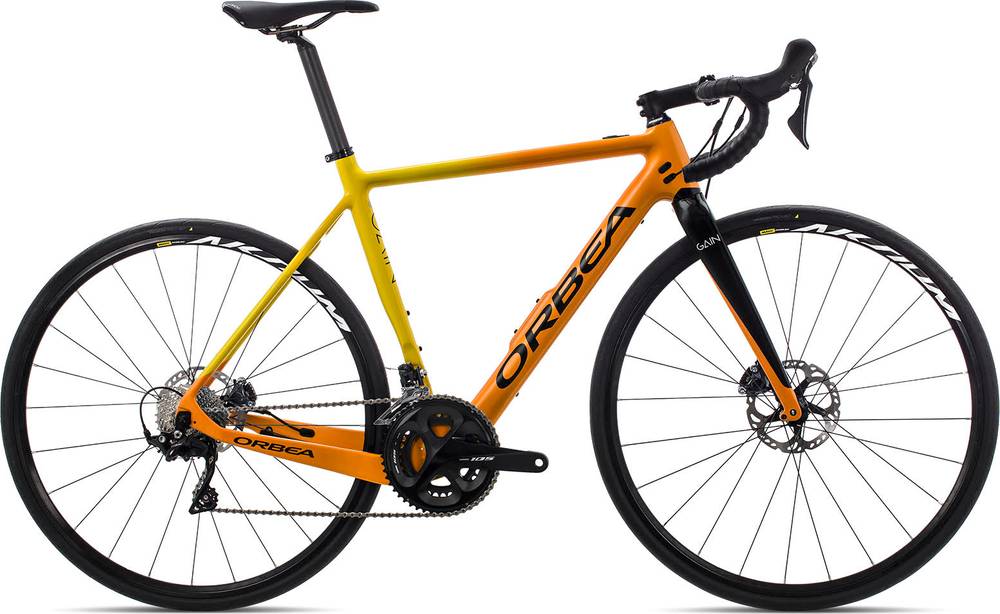

About this model
GAIN M30 USA is part of the Orbea E Gain model. Orbea launched 78 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Orbea GAIN F30 USA 2019 is the most economical model, with a starting price of 2499$. Orbea GAIN M20i USA 2019 on the other hand costs 5799$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 3999$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN M30 USA price is 5.24% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The GAIN M30 USA 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN M30 USA comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
