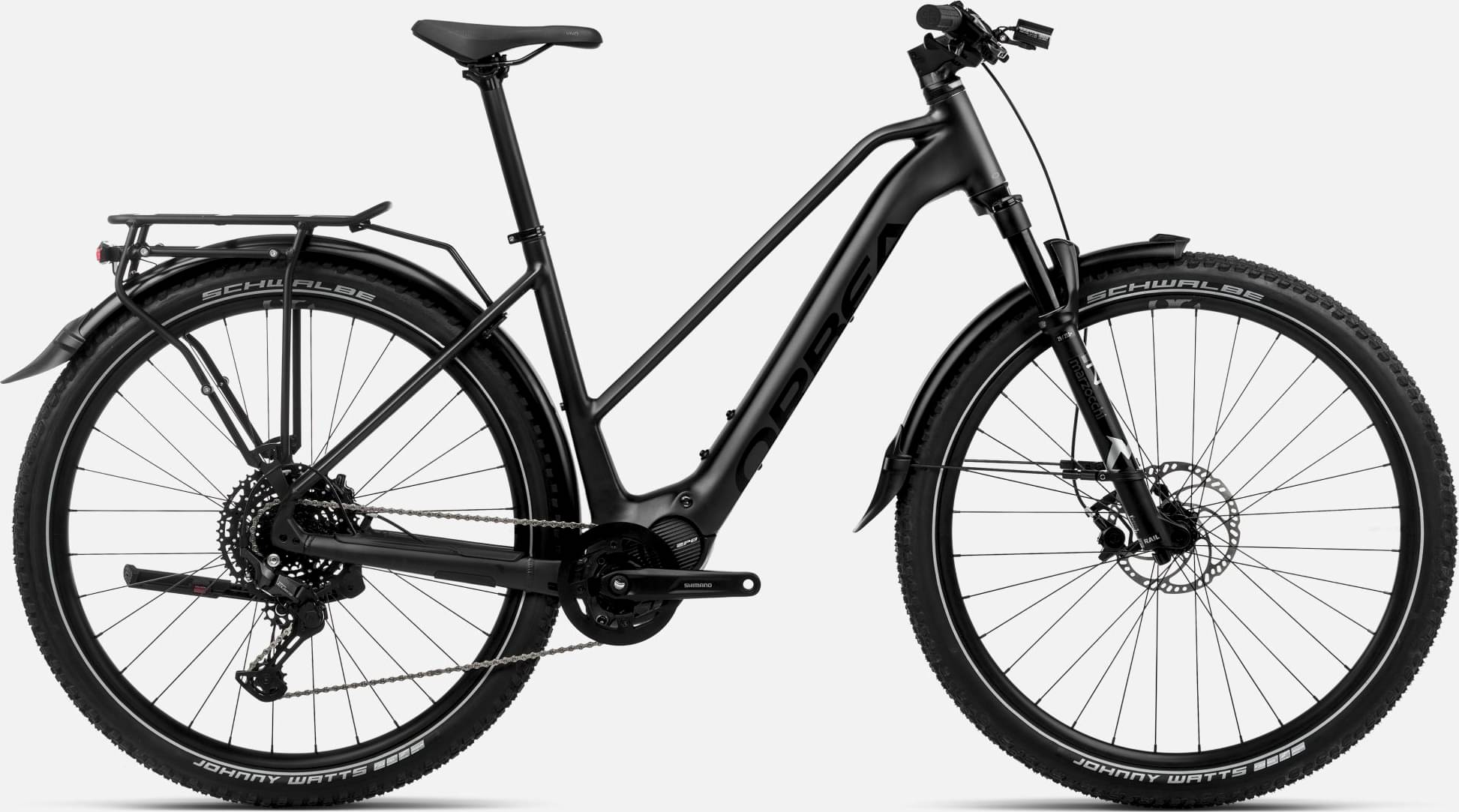

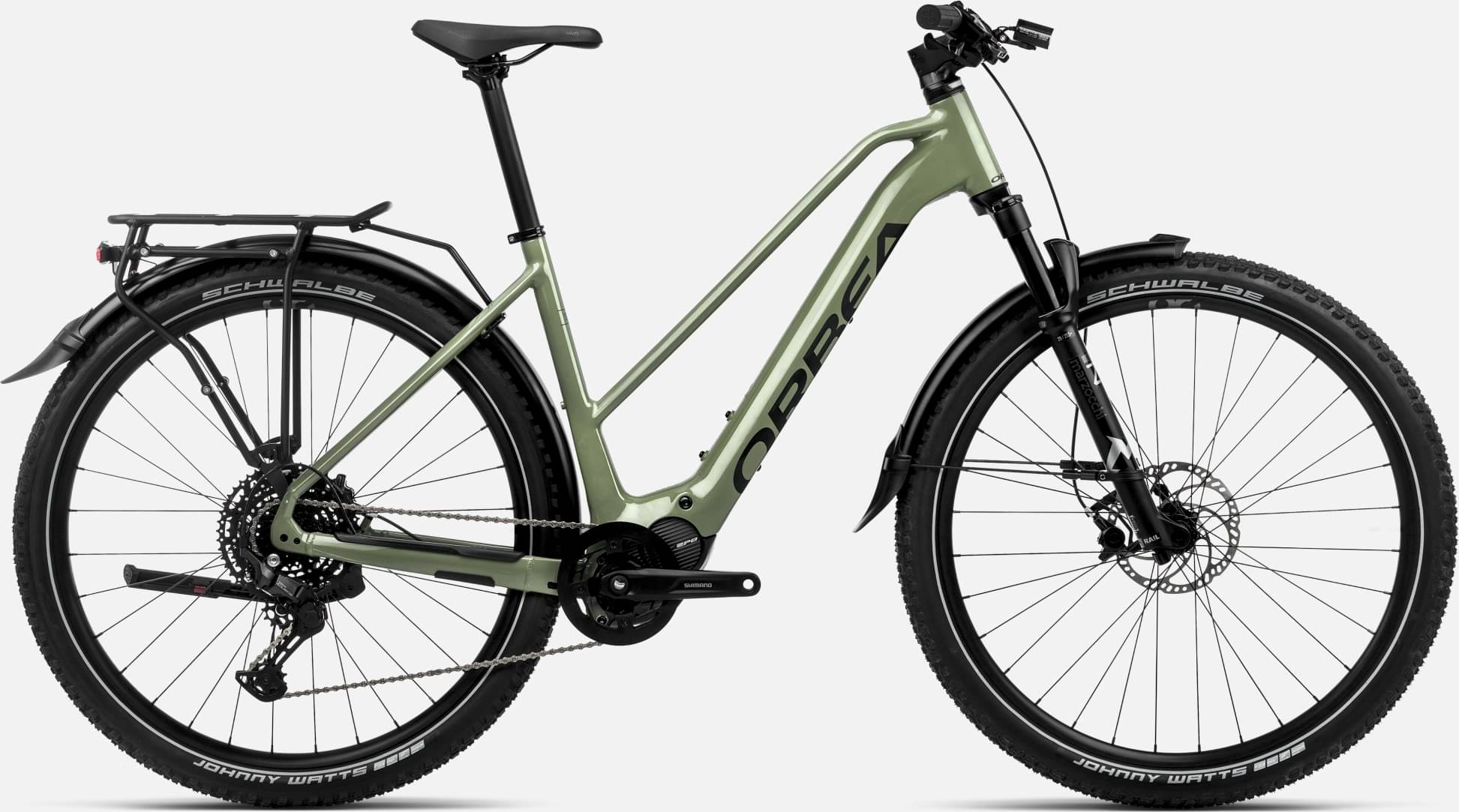

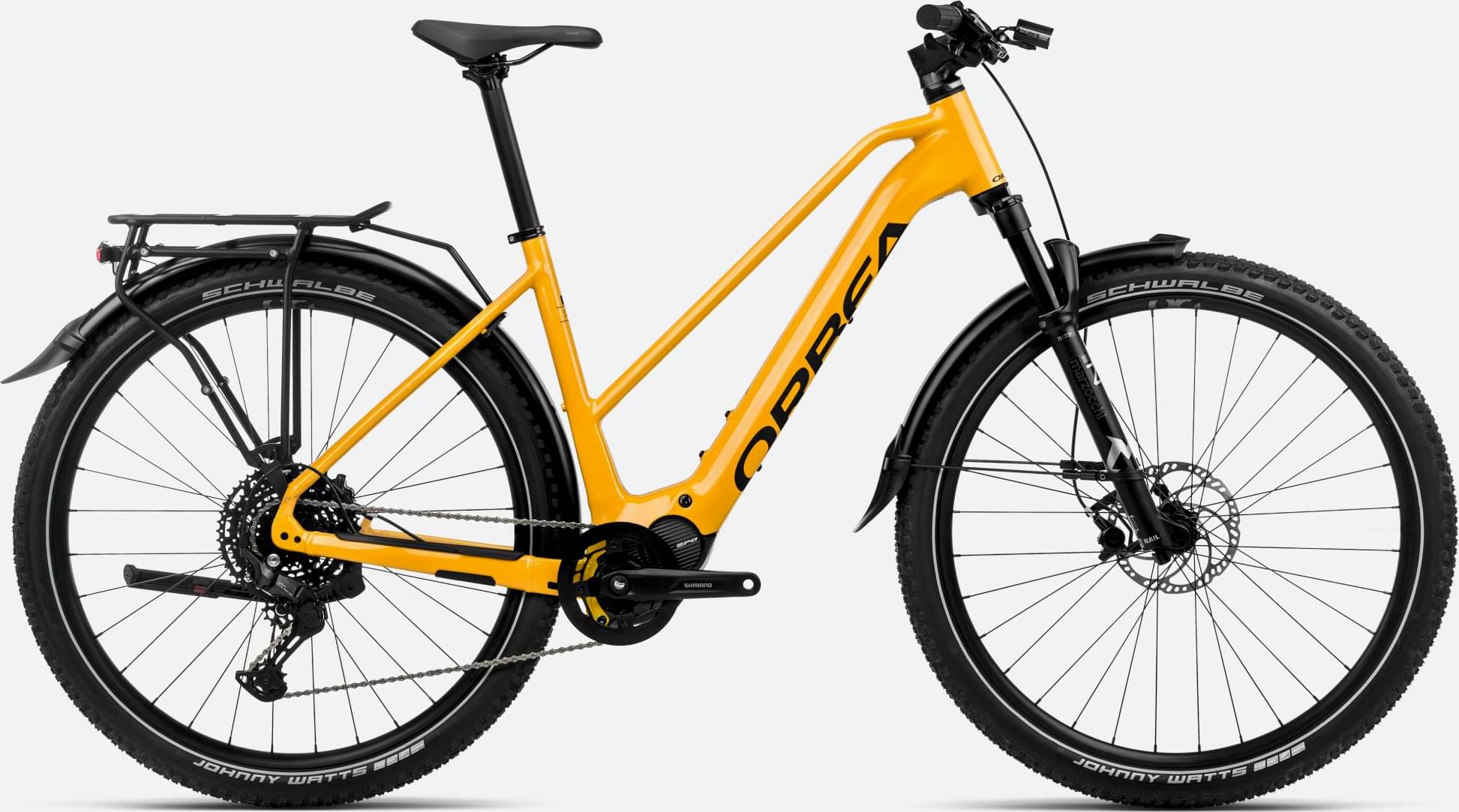

Orbea KEMEN MID SUV 30 20mph 2024
2024 E-bike
Estimate price |
4,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Marzocchi Bomber Z2
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
Drivetrain
Rear Derailleur
Shimano Cues U6000 GS Shadow
Shift Levers
Shimano Cues SL-U6000
Cassette
Shimano CS-LG300 11-48t 10-Speed
Crank
Alloy EP8 36t w/chainguard
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Brakes
Brakes
Magura AT2 Hydraulic Disc Easy Route Connection
Cockpit
Stem
Alloy forged, 35mm interface, -6º, ICR
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Grips
OC Lock On
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo Sport Women 160x249mm
Seatpost
Alloy 31.6x300mm Offset 0
Motor & Battery
Motor
Shimano EP801
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.504 mm | 1.455 mm |
| Bottom Bracket Height | 307.5 mm | 307.5 mm | 307.5 mm |
| Front Center | 696 mm | 704 mm | 735 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 104 mm | 99 mm | 100 mm |
| Stack | 617 mm | 624 mm | 640 mm |
| Reach | 405 mm | 415 mm | 440 mm |
| Top Tube Length | 563 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 453 mm | 483 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 115 mm | 132 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1134 mm | 1142 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Standover Height | 732 mm | 740 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm |
Model Overview
KEMEN MID SUV 30 20mph completes the Orbea E Kemen model. Orbea launched 47 e-bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Orbea KEMEN 40 2024 is the most affordable e-bike of this model and has a price of 4013$. On the other hand, Orbea KEMEN 10 2024, is the most expensive and costs 5594$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Orbea released this model in 2024, its price was 4399$. Comparing this to the average Commuter e-bike price, we see that the price is 71.23% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
KEMEN MID SUV 30 20mph components
Fork
This e-bike has the Marzocchi Bomber Z2 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the KEMEN MID SUV 30 20mph model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea KEMEN MID SUV 30 20mph has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
KEMEN MID SUV 30 20mph comes in 3 sizes, that range from 155 cm – 190 cm (5.09 ft – 6.23 ft). In short, you can easily find one that suits you.
