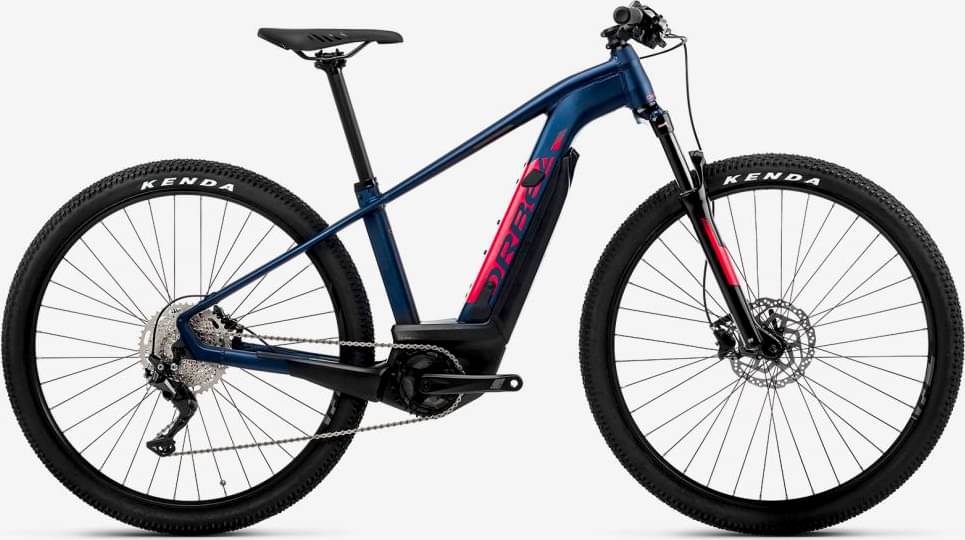

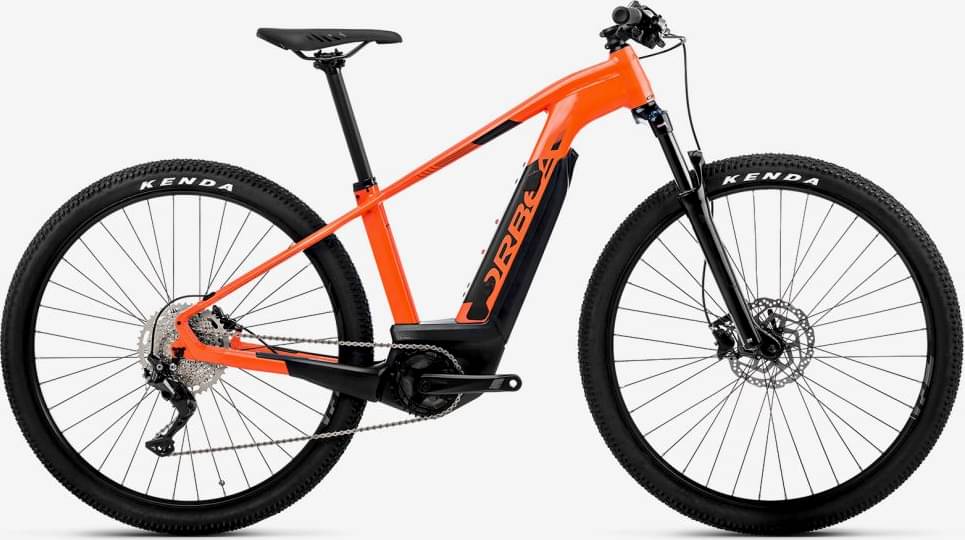

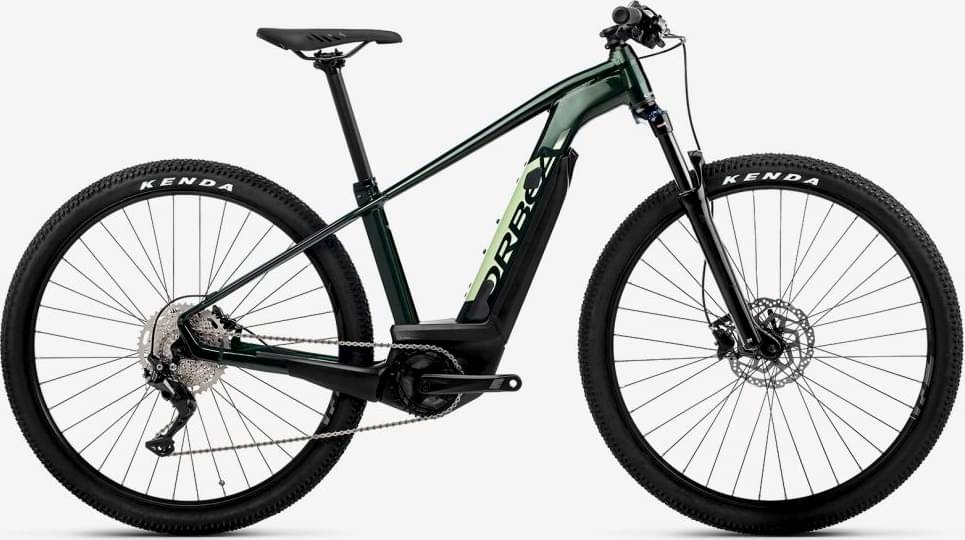

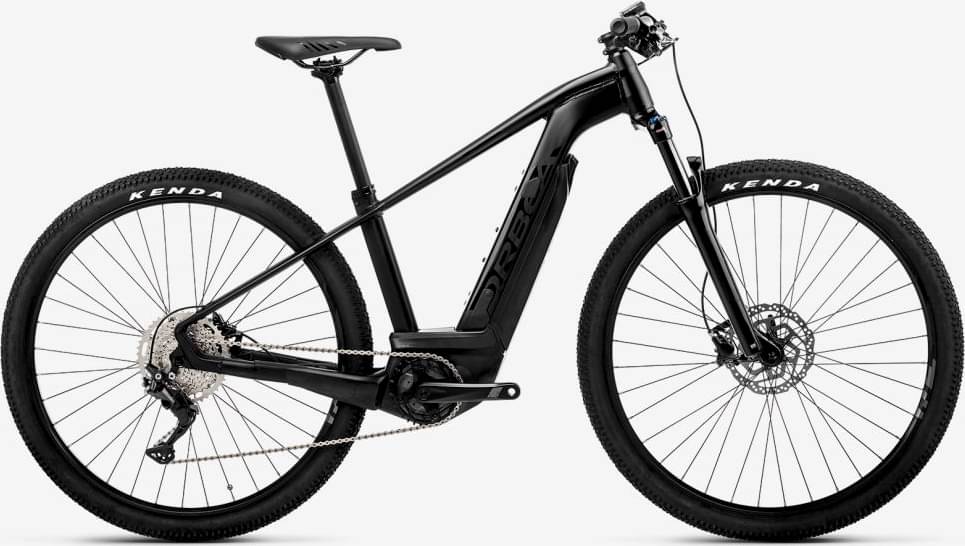

Orbea KERAM 30 20mph 2022
2022 E-bike
Estimate price |
2,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery BOSCH Performance 400Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible
Suspension Fork
SR Suntour X1 Coil LO 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
PW EB04-NW34 G3
Chain
KMC e10 Turbo Silver
Pedals
VP-537 Black
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 22TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
OC1 Flat 31.8mm 740mm
Seat
Saddle
Selle Royal 2077 DRN
Seatpost
Alloy 31.6x400mm Offset 0
Motor & Battery
Motor
BOSCH Active 20mph
Battery
BOSCH Performance 400Wh
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.696 mm | 1.639 mm | 1.749 mm |
| Bottom Bracket Height | 307 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 640 mm | 681 mm | 705 mm | 742 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 103 mm | 99 mm | 92 mm | 120 mm |
| Stack | 600 mm | 636 mm | 659 mm | 752 mm |
| Reach | 355 mm | 375 mm | 402 mm | 430 mm |
| Top Tube Length | 538 mm | 569 mm | 603 mm | 638.4 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 405 mm | 457 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 114 mm | 133 mm | 158 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1112 mm | 1149 mm | 1173 mm | 1210 mm |
| Bottom Bracket Drop | 43 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 798 mm | 825 mm | 861 mm | 893 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
About this model
KERAM 30 20mph is an Orbea E Keram model. Orbea released 11 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orbea KERAM 30 27.5 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Orbea KERAM SUV 20 2022, is the most expensive and costs 4034$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. In conclusion, this e-bike price is 22.26% higher than the price of the average Crosscountry e-bike.
Overview of components
Fork
The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the KERAM 30 20mph e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea KERAM 30 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
KERAM 30 20mph comes in 4 sizes, that range from 150 cm – 195 cm (4.92 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
