Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Suspension Fork
Fox 34 Float Performance 130 3-Position QR15x110 Fox 34 Float Factory 130 FIT4 3-Pos-Adj QR15x110 Kashima
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX PG-1230 Eagle 11-50t 12-Speed
Crank
SRAM Descendant CNC Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA)
Chain
SRAM NX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Sun Ringle Duroc 40 Tubeless Ready
Tires
Maxxis Rekon 2.8" 60 TPI Exo TLR
Brakes
Brakes
Shimano MT501 BR500 Hydraulic Disc Shimano XT M8000 Hydraulic Disc
Cockpit
Stem
Race Face Ride
Handlebar
Orbea OC-II Riser 760mm Race Face Aeffect35 Riser 20/760mm+Aeffect R35 Kit
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal Custom Trail II 2043 HRN Selle Italia XR Trail
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31,6x425/150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | MD | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 680 mm | 698 mm | 732 mm | 760 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 106 mm | 95 mm | 95 mm |
| Stack | 618.9 mm | 623.5 mm | 632.7 mm | 646.5 mm |
| Reach | 381.6 mm | 408.2 mm | 428 mm | 450.6 mm |
| Top Tube Length | 568 mm | 597 mm | 619 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1101 mm | 1119 mm | 1153 mm | 1181 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

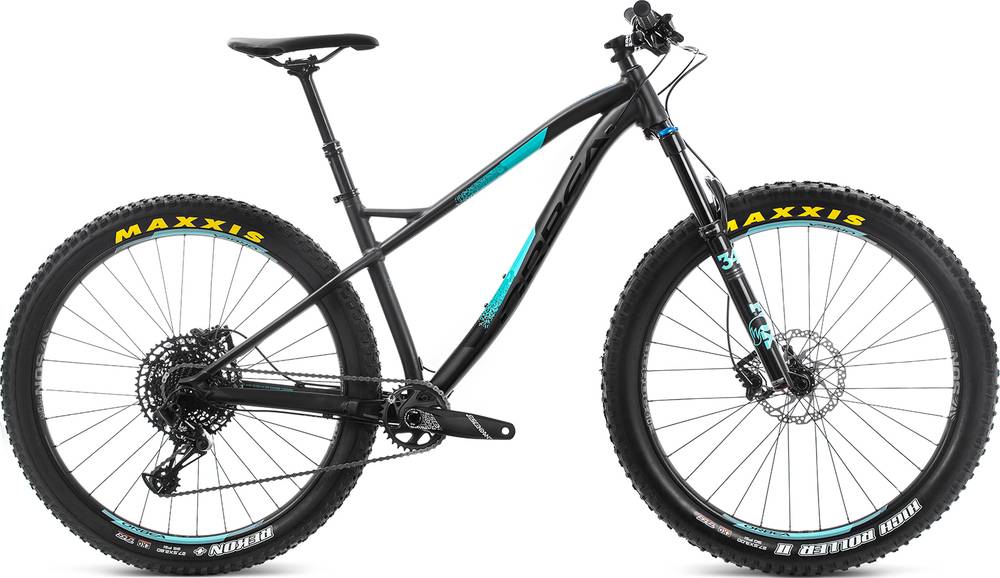

LAUFEY 27+ H10 is part of the Orbea Laufey model. 26 bikes variations carry this model name so far. Take a sneak peek at all Orbea Laufey bikes models from 2018, by clicking here.
Model range prices
Orbea LAUFEY 27+ H30 2018 is the most affordable bike of this model and has a price of 1499$. On the other hand, Orbea LAUFEY 27+ H-LTD 2018, is the most expensive and costs 3199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orbea LAUFEY 27+ H10 price was 2499$. Comparing the average cost of a Trail bike to this one, you will see that LAUFEY 27+ H10 price is 10.52% lower.
Overview of components
Fork
Orbea LAUFEY 27+ H10 2018 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the LAUFEY 27+ H10 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LAUFEY 27+ H10 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
