Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Suspension Fork
Fox 34 Float Performance 130 3-Position QR15x110
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX PG-1230 Eagle 11-50t 12-Speed
Crank
SRAM Descendant CNC Eagle Dub Boost 32t
Chain
SRAM NX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Sun Ringle Duroc 40 Tubeless Ready
Tires
Maxxis Rekon 2.8" 60 TPI Exo TLR
Brakes
Brakes
Shimano MT501 BR500 Hydraulic Disc
Cockpit
Stem
Race Face Ride
Handlebar
Orbea OC-II Riser 760mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal Custom Trail II 2043 HRN
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | MD | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 680 mm | 698 mm | 732 mm | 760 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 106 mm | 95 mm | 95 mm |
| Stack | 618.9 mm | 623.5 mm | 632.7 mm | 646.5 mm |
| Reach | 381.6 mm | 408.2 mm | 428 mm | 450.6 mm |
| Top Tube Length | 568 mm | 597 mm | 619 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1101 mm | 1119 mm | 1153 mm | 1181 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

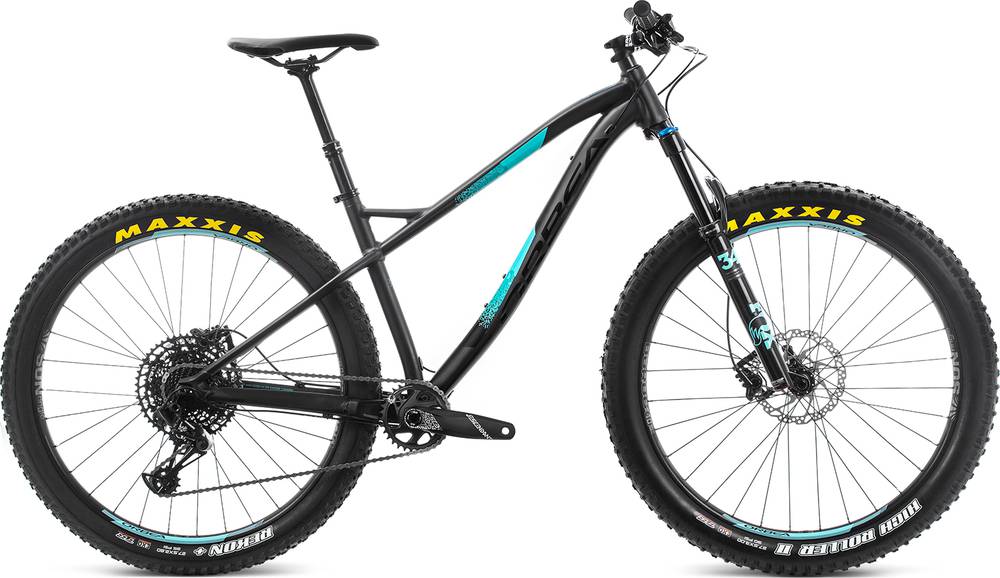

LAUFEY 27+ H10 is part of the Orbea Laufey model. Orbea launched 26 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea LAUFEY 27+ H30 2019 has a starting price of 1499$. Orbea LAUFEY 27+ H-LTD 2019 on the other hand is the most expensive at 3199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 2499$. Comparing this to the average Trail bike price, we see that the price is 10.52% smaller.
LAUFEY 27+ H10 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the LAUFEY 27+ H10 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LAUFEY 27+ H10 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the LAUFEY 27+ H10. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
