Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Altus -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
100cm - 116cm
20"
114cm - 136cm
24"
134cm - 156cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Hexatubing Aluminum. Mx Compact Geometry. Internal cable routing. Only disc.
Suspension Fork
Orbea Alu 20" only disc
Drivetrain
Rear Derailleur
Shimano Altus M310
Shift Levers
Shimano M310
Cassette
Shimano HG31 11-34t 8-Speed
Crank
Alloy 34t (127)
Chain
KMC Z8
Pedals
Resine BMX
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Kenda 1047 20x2.10" 60TPI Wire DTC
Brakes
Brakes
Shimano M396 Hydraulic Disc
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-I Riser 540mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Velo 7087
Seatpost
Orbea OC-I 27.2x250mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20" | 24" | 26" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.12 mm | 1.33 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 192 mm | 237 mm | 272 mm | 280 mm |
| Front Center | 433 mm | 488 mm | 554 mm | 594 mm |
| Rake | 35 mm | 33 mm | 36 mm | 39 mm |
| Stack | 317 mm | 419 mm | 494 mm | 532 mm |
| Reach | 282 mm | 314 mm | 347 mm | 365 mm |
| Top Tube Length | 379.3 mm | 439 mm | 513 mm | 530 mm |
| Seat Tube Angle | 73.2 ° | 73 ° | 72 ° | 73 ° |
| Seat Tube Length | 207 mm | 257 mm | 329 mm | 367 mm |
| Head Tube Angle | 71 ° | 72 ° | 71 ° | 70 ° |
| Head Tube Length | 90 mm | 95 mm | 90 mm | 90 mm |
| Chainstay Length | 305 mm | 337 mm | 381 mm | 419 mm |
| Wheelbase | 738 mm | 824 mm | 933 mm | 1009 mm |
| Bottom Bracket Drop | 8 mm | 16 mm | 30 mm | 45 mm |
| Standover Height | 436 mm | 527 mm | 654 mm | 707 mm |
| Wheels | 20" | 20" | 20" | 20" |
| Rider Min Height | 100 cm | 114 cm | 134 cm | 154 cm |
| Rider Max Height | 116 cm | 136 cm | 156 cm | cm |
Model Overview

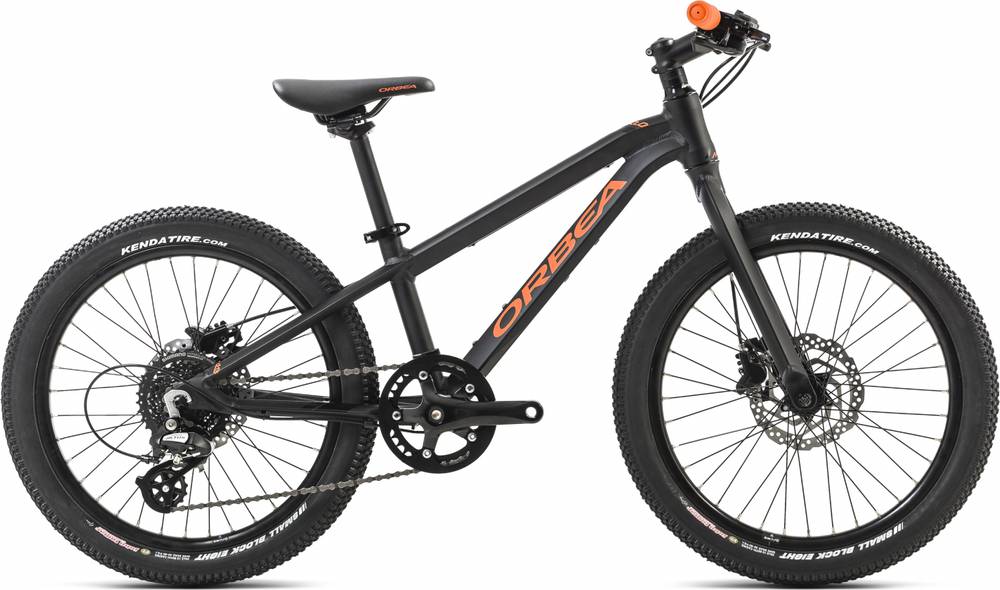

MX 20 TEAM DISC is an Orbea Mx model. There are 76 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea MX 20 XC 2019 has a starting price of 399$. Orbea MX 10 27.5 2019 on the other hand is the most expensive at 999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Mountain bikes average price
According to our calculations, the average cost of a Mountain bike that is reliable is 616$. However, even though the average price of a Mountain bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 539$. Comparing this to the average Mountain bike price, we see that the price is 14.29% lower.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
MX 20 TEAM DISC components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Orbea MX 20 TEAM DISC 2019, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea MX 20 TEAM DISC is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
