Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
100cm - 116cm
20"
114cm - 136cm
24"
134cm - 156cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea MX 24 Alu only disc
Suspension Fork
Orbea Alu 24" only disc
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS Shadow Plus
Shift Levers
Shimano Deore M6000
Cassette
Shimano HG50 11-36t 10-Speed
Crank
Alloy 32t (152)
Chain
Fsa Team Issue
Pedals
Resine BMX
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Kenda 1047 24x2,10" 60TPI Wire DTC
Brakes
Brakes
Shimano M396 Hydraulic Disc
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-I Riser 560mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Velo 5061
Seatpost
Orbea OC-I 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20" | 24" | 26" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.12 mm | 1.33 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 192 mm | 237 mm | 272 mm | 280 mm |
| Front Center | 433 mm | 488 mm | 554 mm | 594 mm |
| Rake | 35 mm | 33 mm | 36 mm | 39 mm |
| Stack | 317 mm | 419 mm | 494 mm | 532 mm |
| Reach | 282 mm | 314 mm | 347 mm | 365 mm |
| Top Tube Length | 379.3 mm | 439 mm | 513 mm | 530 mm |
| Seat Tube Angle | 73.2 ° | 73 ° | 72 ° | 73 ° |
| Seat Tube Length | 207 mm | 257 mm | 329 mm | 367 mm |
| Head Tube Angle | 71 ° | 72 ° | 71 ° | 70 ° |
| Head Tube Length | 90 mm | 95 mm | 90 mm | 90 mm |
| Chainstay Length | 305 mm | 337 mm | 381 mm | 419 mm |
| Wheelbase | 738 mm | 824 mm | 933 mm | 1009 mm |
| Bottom Bracket Drop | 8 mm | 16 mm | 30 mm | 45 mm |
| Standover Height | 436 mm | 527 mm | 654 mm | 707 mm |
| Wheels | 24" | 24" | 24" | 24" |
| Rider Min Height | 100 cm | 114 cm | 134 cm | 154 cm |
| Rider Max Height | 116 cm | 136 cm | 156 cm | cm |
Model Overview

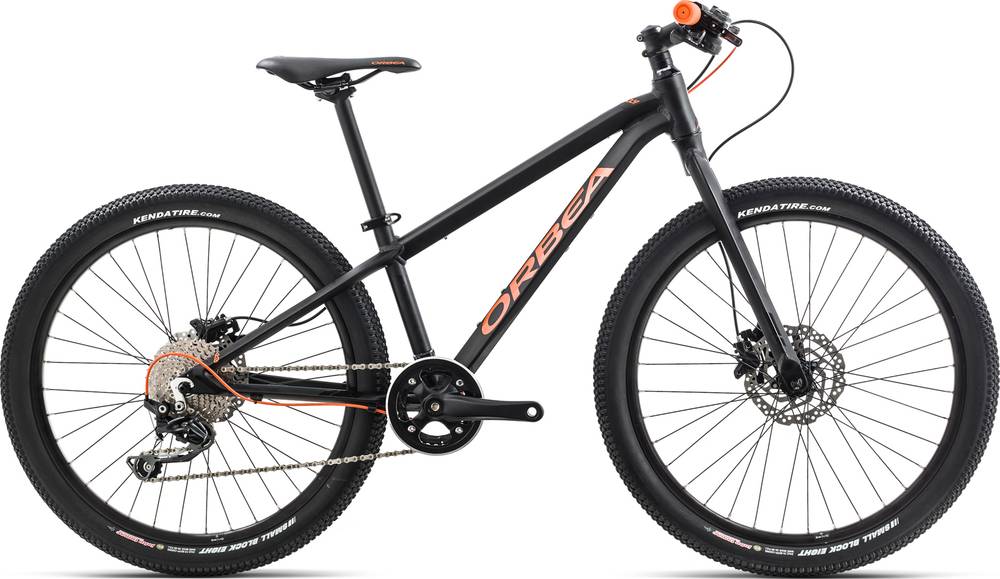

MX 24 TEAM-DISC-USA belongs to the Orbea Mx model. Orbea launched 76 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Orbea MX 20 XC 2018 is the most economical model, with a starting price of 399$. Orbea MX 10 29 2018 on the other hand costs 999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Mountain bikes
According to our calculations, the average cost of a Mountain bike that is reliable is 616$. However, you could also get a good Mountain bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Orbea released this model in 2018, its price was 649$. If we compare this with the average Mountain bike cost we notice that the price is 5.36% higher.
Overview of components
Fork material
MX 24 TEAM-DISC-USA has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Orbea MX 24 TEAM-DISC-USA 2018, has a 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
