Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork SunTour XCM -
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea MX Alloy only disc
Suspension Fork
SR Suntour XCM RL-Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M6000 SGS Shadow Plus Direct Mount
Front Derailleur
Shimano Deore M611 31.8mm
Shift Levers
Shimano Deore M6000
Cassette
Shimano HG50 11-36t 10-Speed
Crank
Prowheel Marvel-951-TT 22x30x40t
Chain
Fsa Team Issue
Pedals
VP-537 Black
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-I Riser 720mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Selle Royal 2062 HRN
Seatpost
Orbea OC-I 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.5 mm | 1.57 mm |
| Bottom Bracket Height | 312.5 mm | 312.5 mm | 312.5 mm |
| Front Center | 623 mm | 639 mm | 662 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 86 mm | 53 mm |
| Stack | 588 mm | 598 mm | 607 mm |
| Reach | 375 mm | 399 mm | 386 mm |
| Top Tube Length | 542 mm | 569 mm | 590 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 388 mm | 430 mm | 460 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 102 mm | 108 mm | 118 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1064 mm | 1080 mm | 1103 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 795 mm | 820 mm | 839 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

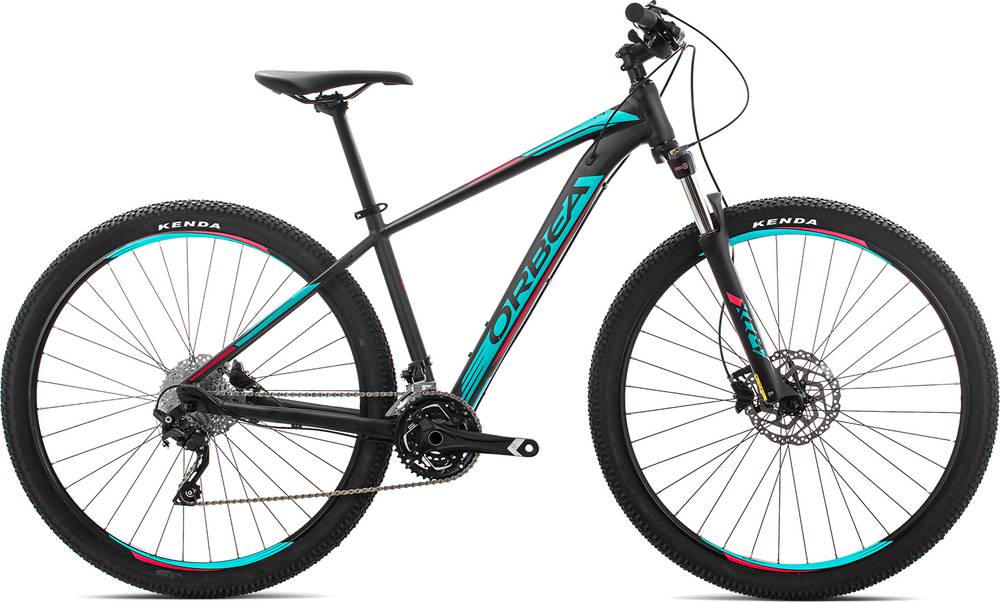

Model Overview
MX 30 27.5 is an Orbea Mx model. 76 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Orbea MX 20 XC 2019 has a starting price of 399$. Orbea MX 10 27.5 2019 on the other hand is the most expensive at 999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 849$. Comparing this to the average Crosscountry bike price, we see that the price is 124.38% smaller.
Overview of components
Fork
Orbea MX 30 27.5 2019 bike is equipped with the SunTour XCM fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on MX 30 27.5 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea MX 30 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
MX 30 27.5 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
