Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork SunTour XCM -
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea MX Alloy only disc
Suspension Fork
SR Suntour XCM RL-Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M6000 SGS Shadow Plus Direct Mount
Front Derailleur
Shimano Deore M611 31.8mm
Shift Levers
Shimano Deore M6000
Cassette
Shimano HG50 11-36t 10-Speed
Crank
Prowheel Marvel-951-TT 22x30x40t
Chain
Fsa Team Issue
Pedals
VP-537 Black
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-I Riser 720mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Selle Royal 2062 HRN
Seatpost
Orbea OC-I 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.53 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 636 mm | 656 mm | 697 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 619 mm | 629 mm | 651 mm |
| Reach | 377 mm | 393 mm | 426 mm |
| Top Tube Length | 555 mm | 574 mm | 614 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 104 mm | 115 mm | 138 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1074 mm | 1094 mm | 1135 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 819 mm | 833 mm | 877 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

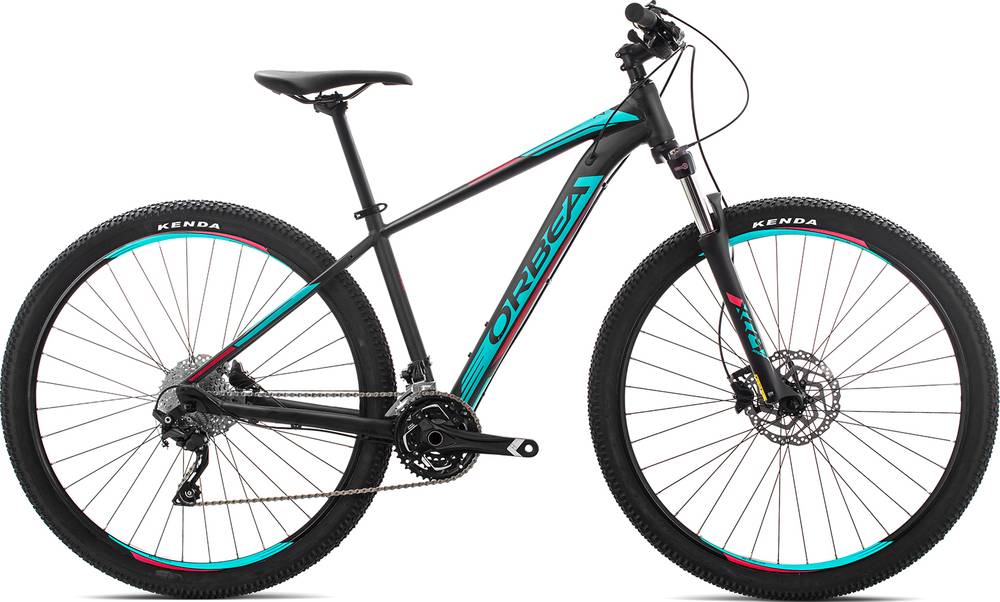

MX 30 29 completes the Orbea Mx model. Orbea launched 76 bikes of this model so far. Take a sneak peek at all Orbea Mx bikes models from 2018, by clicking here.
Model range prices
Orbea MX 20 XC 2018 is the cheapest bike model and costs 399$. Orbea MX 10 29 2018 is the most expensive one and costs 999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 849$. In conclusion, this bike price is 124.38% lower than the price of the average Crosscountry bike.
MX 30 29 components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The MX 30 29 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MX 30 29 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
