Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork SunTour -
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea MX Alloy only disc
Suspension Fork
SR Suntour XCE 28 Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Acera M360
Front Derailleur
Shimano M315 31.8mm
Shift Levers
Shimano SL-M315
Cassette
Sun Race CSM66 11-34t 8-Speed
Crank
Alloy forged 22x36t 7/8S
Chain
KMC X8
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy Flat 31.8mm 720mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal 2058 DRN
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.5 mm |
| Bottom Bracket Height | 312.5 mm | 312.5 mm |
| Front Center | 623 mm | 639 mm |
| Rake | 42 mm | 42 mm |
| Trail | 91 mm | 86 mm |
| Stack | 588 mm | 598 mm |
| Reach | 375 mm | 399 mm |
| Top Tube Length | 542 mm | 569 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 388 mm | 430 mm |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 102 mm | 108 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1064 mm | 1080 mm |
| Bottom Bracket Drop | 45 mm | 45 mm |
| Standover Height | 795 mm | 820 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm |
| Rider Max Height | 166 cm | 180 cm |

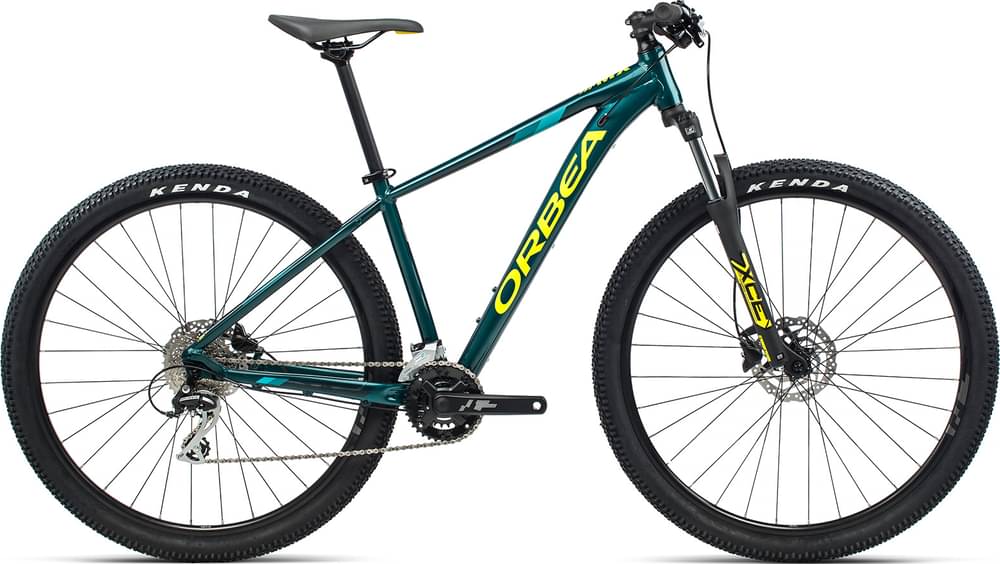

About this model
MX 50 27.5 belongs to the Orbea Mx model. 76 bikes variations carry this model name so far. Take a sneak peek at all Orbea Mx bikes models from 2021, by clicking here.
Model range prices
Orbea MX 50 27.5 2021 is the cheapest bike model and costs 656$. Orbea MX 20 27.5 2021 is the most expensive one and costs 996$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 656$. Comparing the average cost of a Crosscountry bike to this one, you will see that MX 50 27.5 price is 190.4% smaller.
MX 50 27.5 components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on MX 50 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 155 cm – 180 cm (5.09 ft – 5.91 ft). In conclusion, it won’t take much to find one that’s right for you.
