Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork SunTour XCT -
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea MX Alloy only disc
Suspension Fork
SR Suntour XCT 30 Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Altus M313 31.8mm
Shift Levers
Shimano M310
Cassette
Shimano HG200 12-32t 8-Speed
Crank
Shimano TY301 24x34x42t
Chain
KMC X8
Pedals
VP-537 Black
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Orbea OC
Handlebar
Orbea OC Riser 720mm
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Selle Royal 2073
Seatpost
Orbea OC 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.53 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 636 mm | 656 mm | 697 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 619 mm | 629 mm | 651 mm |
| Reach | 377 mm | 393 mm | 426 mm |
| Top Tube Length | 555 mm | 574 mm | 614 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 104 mm | 115 mm | 138 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1074 mm | 1094 mm | 1135 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 819 mm | 833 mm | 877 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

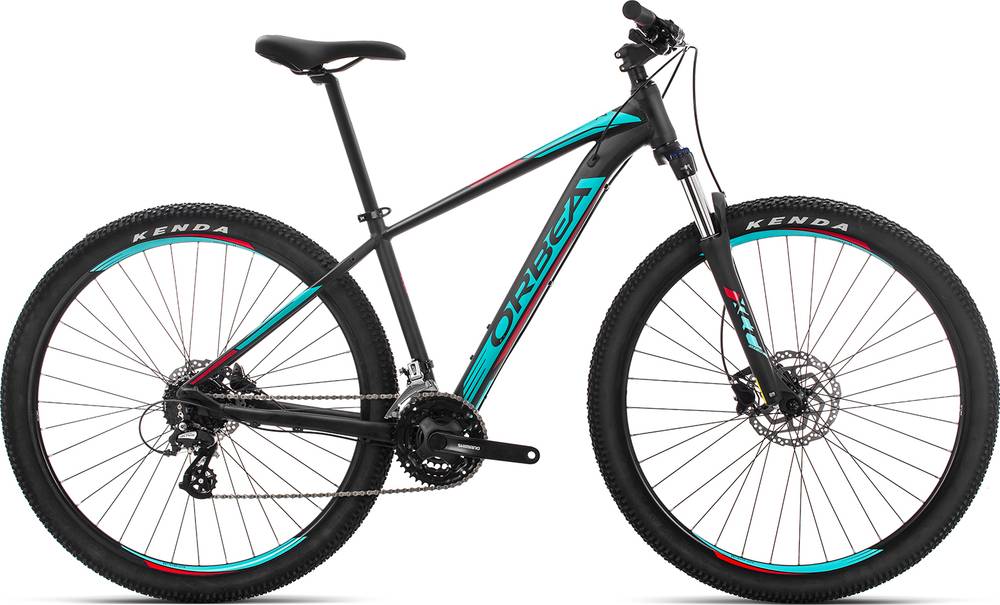

MX 50 29 belongs to the Orbea Mx model. Orbea launched 76 bikes of this model so far. Take a sneak peek at all Orbea Mx bikes models from 2018, by clicking here.
Model range prices
Orbea MX 20 XC 2018 is the most affordable bike of this model and has a price of 399$. On the other hand, Orbea MX 10 29 2018, is the most expensive and costs 999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Orbea released this model in 2018, its price was 649$. Comparing this to the average Crosscountry bike price, we see that the price is 193.53% smaller.
MX 50 29 components
Fork
The SunTour XCT is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the MX 50 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea MX 50 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
