Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam TR 2018 Hydro Triple Butted 120mm travel 29/27.5+ C-Boost 12x148 PF
Suspension Fork
RockShox Recon RL 130 Air Q15x110 Boost
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 184x44mm
Drivetrain
Rear Derailleur
Shimano XT M8000 GS Shadow Plus Direct Mount
Front Derailleur
Shimano SLX M7020 Direct mount
Shift Levers
Shimano SLX M7000
Cassette
Sun Race 11-42t 11-Speed
Crank
Prowheel Claw-551-TT-Boost 26x36t
Chain
Shimano HG601-11
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Mach1 Klixx, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Mach1 Klixx, 110x15mm Boost front, 148x12mm Boost rear
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Maxxis Forekaster 2.35" 60 TPI FB Dual
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Brake Levers
Shimano M365 Hydraulic
Cockpit
Stem
Orbea OC-II
Handlebar
Orbea OC-II Flat 760mm
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal Custom Trail II 2043 HRN
Seatpost
Orbea Digit 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 689 mm | 717 mm | 740 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 107 mm | 106 mm | 106 mm |
| Stack | 589 mm | 599 mm | 608 mm | 622 mm |
| Reach | 399 mm | 424 mm | 443 mm | 465 mm |
| Top Tube Length | 565 mm | 592 mm | 614 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1115 mm | 1143 mm | 1166 mm | 1194 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 718 mm | 736 mm | 762 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

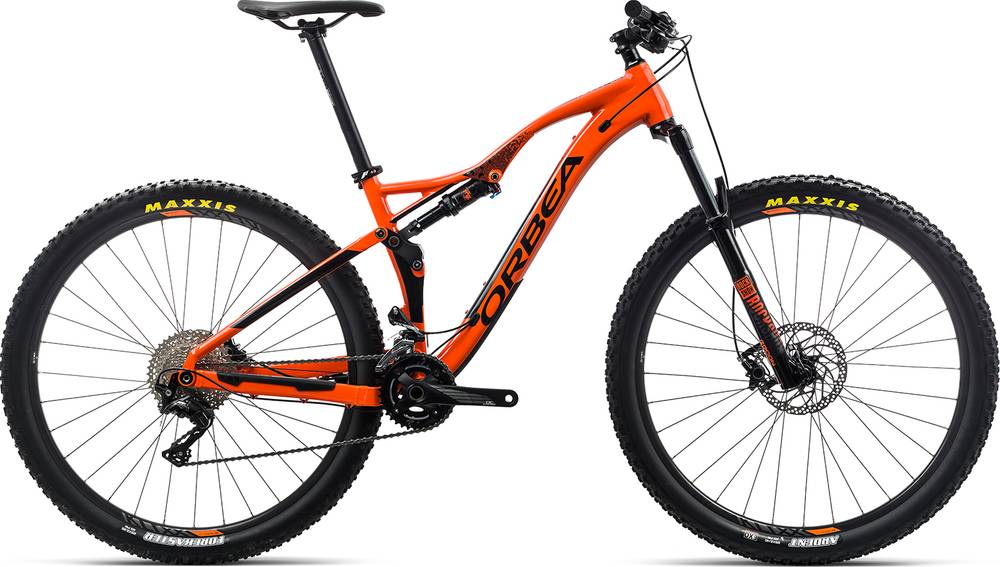

OCCAM TR H50 is an Orbea Occam model. Orbea launched 80 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Orbea OCCAM TR H50 2018 is the most affordable bike of this model and has a price of 2499$. On the other hand, Orbea OCCAM AM M-LTD 2018, is the most expensive and costs 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. If we compare this with the average Trail bike cost we notice that the price is 10.52% smaller.
OCCAM TR H50 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS Performance 3-Position Evol custom tune 184x44mm model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The OCCAM TR H50 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea OCCAM TR H50 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
