Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Suspension Fork
Fox 32 Float SC Factory 100 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima TR Suspension Pack 120mm Front/Rear
Rear Shock
Fox i-line DPS Factory Remote Push-Unlock Evol custom tune190x40mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM X1 Eagle Dub Carbon Boost 34t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Mavic Crossmax Elite TL 6-Bolt Mavic Crossmax Pro Carbon TL 6-Bolt
Tires
Maxxis Ikon 2.20" TLR 120 TPI 3C Exo Maxxis Forekaster 2.35" TLR (F) / Ardent Race 2.2" TLR (R)
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc SRAM Ultimate Carbon Gold Hydraulic Disc Shimano XTR M9100 Hydraulic Disc
Cockpit
Stem
FSA SL-K
Handlebar
FSA SL-K Flat 740mm FSA K-Force Flat 760mm Kit (Bar+Stem+Spost)
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia X-LR Ti Flow Selle Italia X-LR Kit Carbonio S
Seatpost
FSA SL-K SB0 31.6x400mm Di2 compatible Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.43 mm | 1.35 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 328 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 658 mm | 663 mm | 692 mm | 717 mm | 742 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 563 mm | 591 mm | 596 mm | 605 mm | 619 mm |
| Reach | 412 mm | 412 mm | 440 mm | 461 mm | 481 mm |
| Top Tube Length | 562 mm | 569 mm | 598 mm | 622 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 405 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 90 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 430 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1086 mm | 1099 mm | 1128 mm | 1153 mm | 1178 mm |
| Bottom Bracket Drop | 29 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 722 mm | 722 mm | 737 mm | 747 mm | 754 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

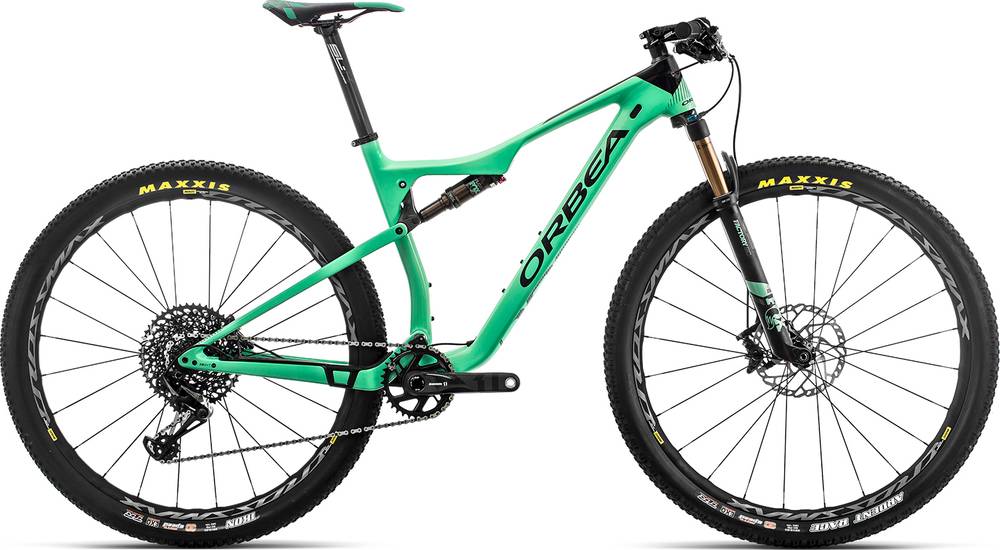

OIZ M10 is an Orbea Oiz model. Orbea launched 78 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Orbea OIZ M50 2018 is the most economical model, with a starting price of 3499$. Orbea OIZ M-LTD 2018 on the other hand costs 8299$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2018 for 4999$. In conclusion, this bike price is 80.99% higher than the price of the average Trail bike.
OIZ M10 components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Orbea OIZ M10 2018, has a 27.5″ carbon model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OIZ M10 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orbea OIZ M10 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
