Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Suspension Fork
Fox 34 Float SC Factory 120 FIT4 Remote-Adj Push-Unlock QR15x110 Kashima
Rear Shock
Fox i-line DPS Factory Remote Push-Unlock Evol custom tune190x45mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM X1 Eagle Dub Carbon Boost 34t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Mavic Crossmax Elite TL 6-Bolt Mavic Crossmax Pro Carbon TL 6-Bolt
Tires
Maxxis Ardent 2.2" TLR Exo Dual
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc SRAM Ultimate Carbon Gold Hydraulic Disc Shimano XTR M9100 Hydraulic Disc
Cockpit
Stem
FSA SL-K
Handlebar
FSA SL-K Flat 740mm FSA K-Force Flat 760mm Kit (Bar+Stem)
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia X-LR Ti Flow Selle Italia X-LR Kit Carbonio S
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.43 mm | 1.35 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 328 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 658 mm | 662 mm | 691 mm | 716 mm | 741 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 110 mm | 111 mm | 111 mm | 111 mm |
| Stack | 563 mm | 591 mm | 596 mm | 605 mm | 619 mm |
| Reach | 412 mm | 412 mm | 440 mm | 461 mm | 481 mm |
| Top Tube Length | 562 mm | 569 mm | 598 mm | 622 mm | 646 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 405 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 90 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 430 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1086 mm | 1099 mm | 1128 mm | 1153 mm | 1178 mm |
| Bottom Bracket Drop | 29 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 722 mm | 722 mm | 737 mm | 747 mm | 754 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

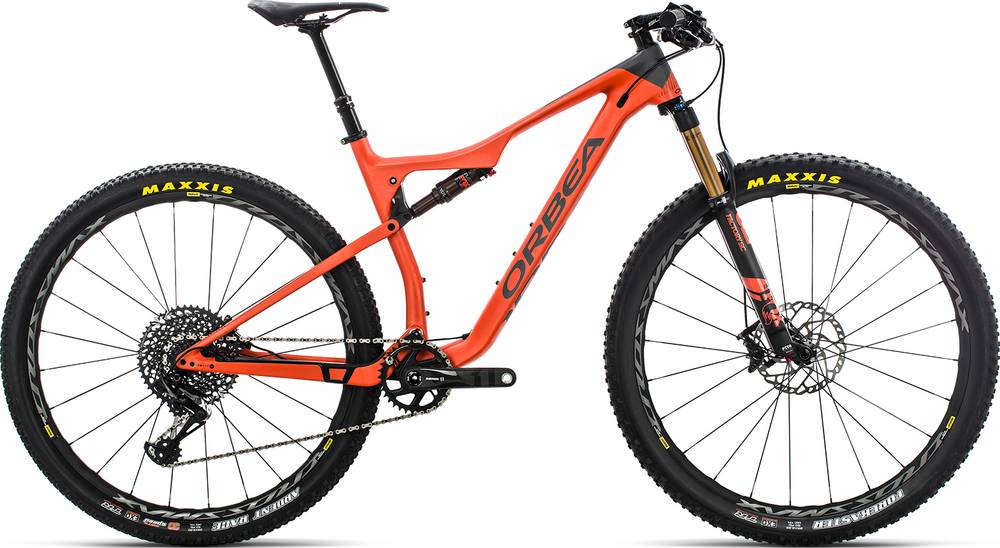

OIZ M10-TR is an Orbea Oiz model. Orbea released 78 bikes variations of this model so far. You can easily view all of the Orbea Oiz bikes models from 2018, here.
Model range prices
The most economical model, the Orbea OIZ M50 2018 has a starting price of 3499$. Orbea OIZ M-LTD 2018 on the other hand is the most expensive at 8299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 5399$. In conclusion, this bike price is 95.47% higher than the price of the average Trail bike.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on OIZ M10-TR are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the OIZ M10-TR. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
