Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 180cm
MD
165cm - 180cm
LG
178cm - 190cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Oiz Carbon OMP 2017 Boost Press Fit Taper DCR
Suspension Fork
Fox 32 Float SC Performance 100 Remote Push-Lock QR15x110 Fox Factory Kashima PTU Pack
Rear Shock
Fox Float DPS Performance Remote Push-lock Evol custom tune165x38mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM X1 Eagle Dub Carbon Boost 34t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Chain
SRAM GX Eagle 12-Speed
Pedals
N/A
Wheels
Rims
Mavic Crossmax TL 6-Bolt Mavic Crossmax Elite TL 6-Bolt
Tires
Maxxis Ikon 2.20" TLR 120 TPI 3C Exo
Brakes
Brakes
Shimano XT M8000 Hydraulic Disc
Cockpit
Stem
Race Face Ride
Handlebar
Race Face Ride Flat 710mm FSA SL-K Flat 700mm Kit (Bar+Stem+Spost)
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia SL X-Cross Flow Selle Italia Lady Flow Selle Italia X-LR Ti Flow
Seatpost
Race Face Ride 31.6x375mm Race Face Aeffect Dropper 31.6x385/125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.43 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 633 mm | 661 mm | 662 mm | 686 mm | 712 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 94 mm | 95 mm | 95 mm |
| Stack | 571 mm | 580 mm | 603 mm | 612 mm | 622 mm |
| Reach | 396 mm | 421 mm | 423 mm | 445 mm | 467 mm |
| Top Tube Length | 558 mm | 586 mm | 595 mm | 619 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 432 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1063 mm | 1091 mm | 1104 mm | 1128 mm | 1154 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 707 mm | 717 mm | 734 mm | 754 mm | 796 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 165 cm | 178 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 180 cm | 190 cm | 198 cm |
About this model

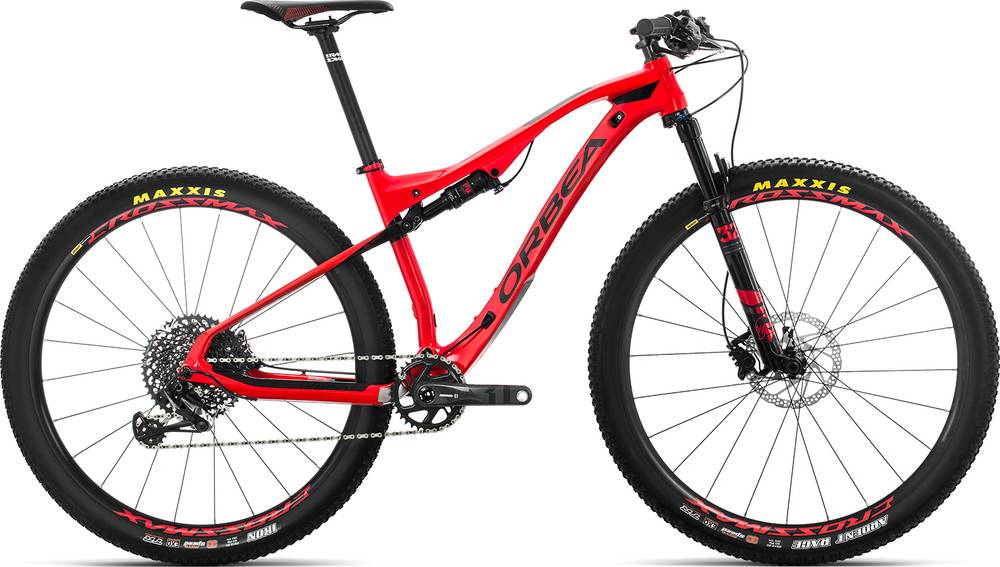

OIZ M30 completes the Orbea Oiz model. Orbea released 78 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Orbea OIZ M50 2018 is the most economical model, with a starting price of 3499$. Orbea OIZ M-LTD 2018 on the other hand costs 8299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 3999$. Doing a quick comparison, we notice that OIZ M30 price is 109.92% higher than the average cost of a Crosscountry bike.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Orbea OIZ M30 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OIZ M30 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 158 cm – 198 cm (5.18 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orbea OIZ M30 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
