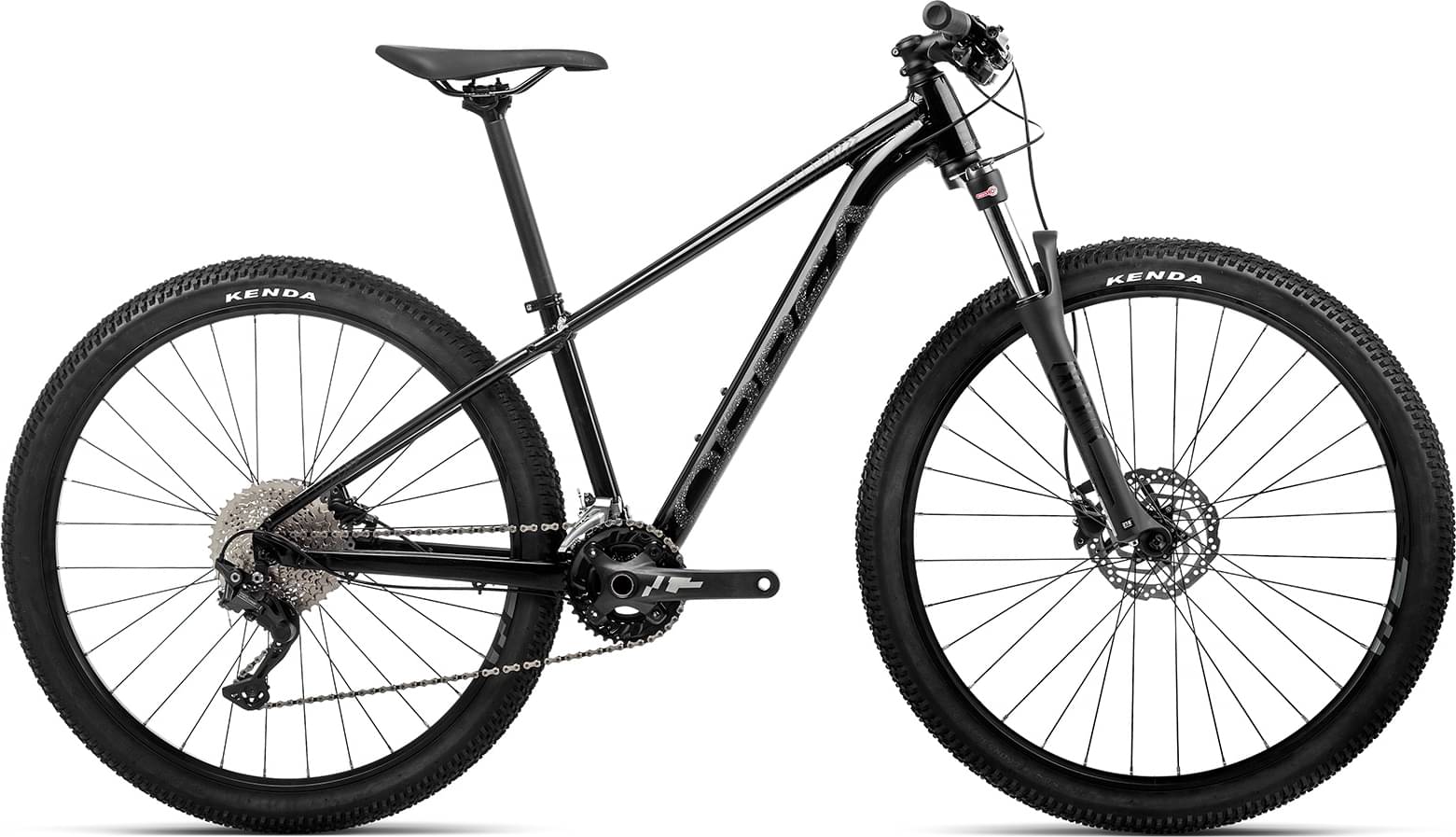

Orbea ONNA 27 XS JUNIOR 30 2022
2022 Mountain
Estimate price |
974$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Fork Suntour XCM -
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
145cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Suspension Fork
SR Suntour XCM RL-Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M4120 SGS Shadow
Front Derailleur
Shimano Deore M6025 31.8mm
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-42t 10-Speed
Crank
Alloy forged 26x36t 10S
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Pedals
VP-537 Black
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy Flat 31.8mm 720mm
Headset
1"-1/8 Semi-Integrated
Seat
Saddle
Selle Royal 2058 DRN
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.59 mm |
| Bottom Bracket Height | 312 mm |
| Front Center | 623 mm |
| Rake | 42 mm |
| Trail | 95 mm |
| Stack | 583 mm |
| Reach | 366 mm |
| Top Tube Length | 527 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 431 mm |
| Wheelbase | 1050 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 669 mm |
| Wheels | 27" |
| Rider Min Height | 145 cm |
| Rider Max Height | 160 cm |
About this model
ONNA 27 XS JUNIOR 30 is an Orbea Onna model. Orbea launched 25 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Orbea ONNA 27 XS JUNIOR 50 2022 has a starting price of 668$. Orbea ONNA 10 2022 on the other hand is the most expensive at 1337$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 901$. Comparing this to the average Crosscountry bike price, we see that the price is 111.43% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ONNA 27 XS JUNIOR 30 components
Fork
The ONNA 27 XS JUNIOR 30 comes factory-installed with the Suntour XCM fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on ONNA 27 XS JUNIOR 30 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ONNA 27 XS JUNIOR 30 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Orbea ONNA 27 XS JUNIOR 30 2022 is available in one size only. In conclusion, double-check its size to make sure it’s a good fit for you.
