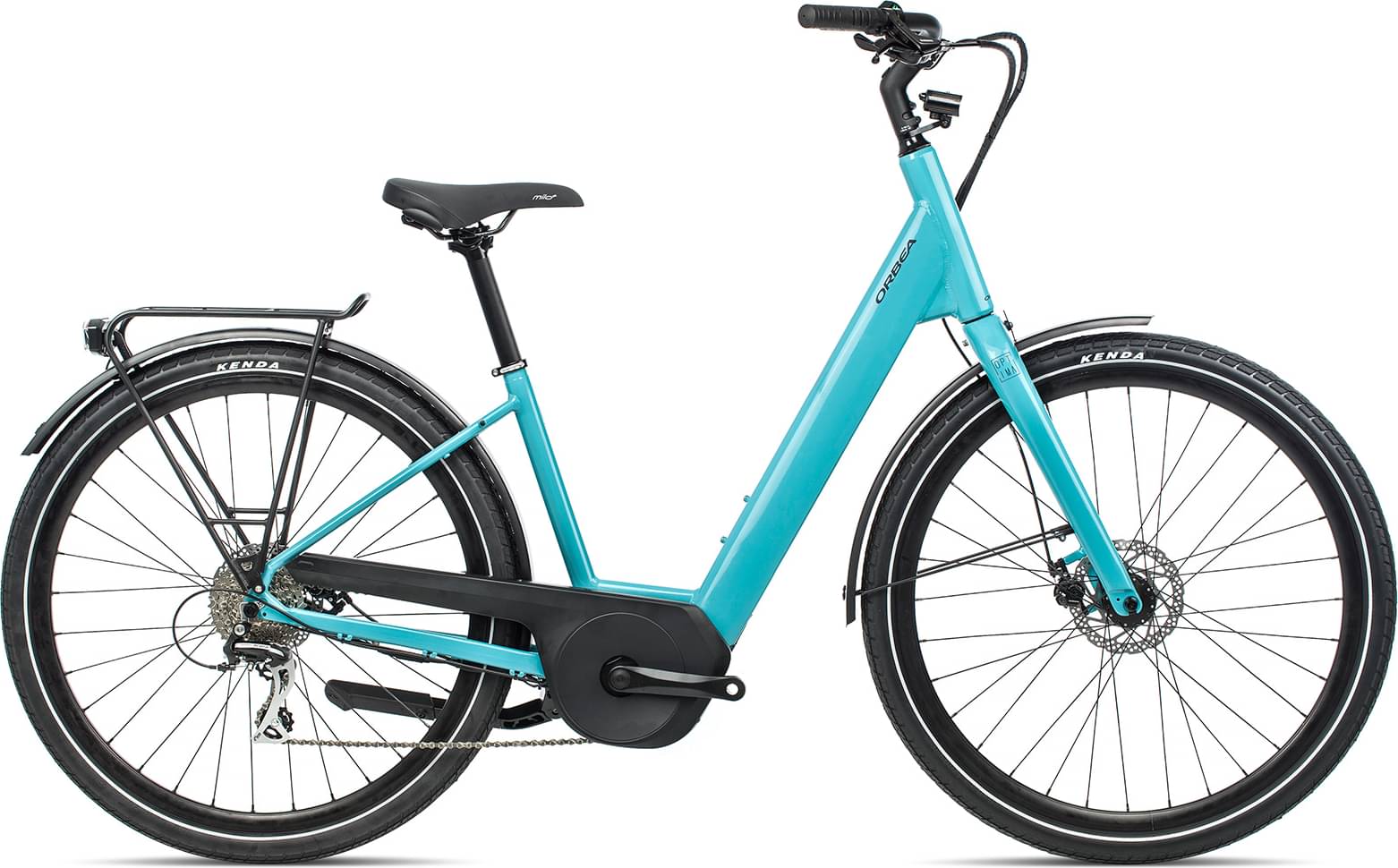

Orbea OPTIMA E50 20mph 2022
2022 E-bike
Estimate price |
2,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Suspension Fork
Optima 400mm Alloy Post mount
Drivetrain
Rear Derailleur
Shimano Tourney TX800
Shift Levers
Shimano SL-M315
Cassette
Sun Race CSM66 11-34t 8-Speed
Crank
Orbea Alloy 42t
Chain
KMC X8
Chain Guide
Sunon A017
Pedals
VP-857 Black
Wheels
Rims
Ready GR 29-700 C
Tires
Kenda 1172 700x50c
Brakes
Brakes
Shimano TX805 Mechanical Disc
Brake Levers
Shimano Alivio BL-T4010
Cockpit
Stem
Orbea TDS-D617
Handlebar
Orbea City Riser Alu 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Milo Plus DR
Seatpost
Alloy 31.6x400mm Offset 0
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.74 mm | 1.67 mm |
| Bottom Bracket Height | 272.5 mm | 272.5 mm | 272.5 mm |
| Front Center | 669 mm | 692 mm | 738 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 68 mm | 70 mm | 68 mm |
| Stack | 667 mm | 714 mm | 742 mm |
| Reach | 402 mm | 410 mm | 445 mm |
| Top Tube Length | 630 mm | 653 mm | 698 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 190 mm | 240 mm | 270 mm |
| Chainstay Length | 515 mm | 515 mm | 515 mm |
| Wheelbase | 1168 mm | 1192 mm | 1238 mm |
| Bottom Bracket Drop | 95 mm | 95 mm | 95 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm |
| Rider Max Height | 166 cm | 181 cm | 200 cm |
About this model
OPTIMA E50 20mph completes the Orbea E Optima model. Orbea launched 17 e-bikes of this model so far. Take a sneak peek at all Orbea E Optima e-bikes models from 2022, by clicking here.
Model range prices
Orbea OPTIMA E50 2022 is the most affordable e-bike of this model and has a price of 2441$. On the other hand, Orbea OPTIMA E40 20mph 2022, is the most expensive and costs 3199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2899$. Comparing this to the average Commuter e-bike price, we see that the price is 12.85% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the OPTIMA E50 20mph model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The OPTIMA E50 20mph comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, you can easily find one that suits you.
