Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca carbon OME, monocoque,tapered 1-1/8" - 1,5", PF 86mm, powermeter compatible, brake internal cable routing, EC/DC compatible, 130mm rear spacing, 27,2mm seat tube.
Suspension Fork
Orca OME carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra ST-4700
Cassette
Shimano Tiagra HG-500 11-32t 10-Speed
Crank
Shimano Tiagra 4700 34x48t
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X10
Wheels
Rims
Shimano RS100 Clincher
Tires
Vittoria Zafiro IV 700x25
Brakes
Brakes
Shimano Tiagra 4700
Cockpit
Stem
OC1 Road -6º
Handlebar
OC1 Road, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Aluminium Cup ACB Bearings
Seat
Saddle
Selle Royal Seta RS
Seatpost
Alloy 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 575 mm | 580 mm | 586 mm | 585 mm | 593 mm | 603 mm | 617 mm |
| Rake | 50 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 61 mm | 57 mm | 58 mm | 58 mm | 57 mm | 59 mm |
| Stack | 521 mm | 536 mm | 553 mm | 570 mm | 590 mm | 609 mm | 633 mm |
| Reach | 373 mm | 376 mm | 381 mm | 388 mm | 393 mm | 399 mm | 408 mm |
| Top Tube Length | 513 mm | 528 mm | 541 mm | 556 mm | 567 mm | 581 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm | 220 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 978 mm | 983 mm | 989 mm | 989 mm | 997 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 744 mm | 761 mm | 779 mm | 799 mm | 818 mm | 837 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model

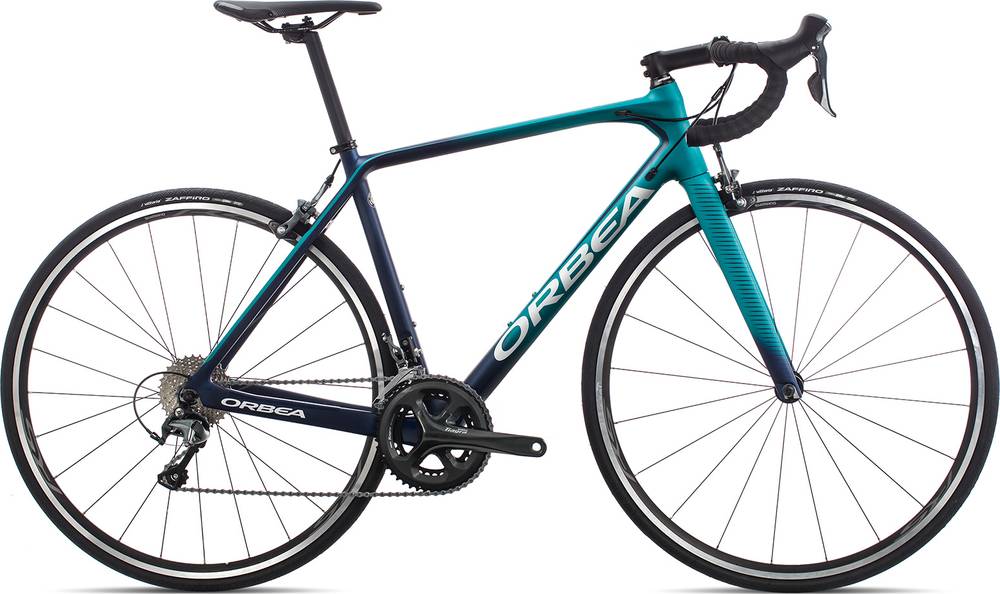

ORCA M40 completes the Orbea Orca model. 214 bikes variations carry this model name so far. Take a sneak peek at all Orbea Orca bikes models from 2020, by clicking here.
Model range prices
Orbea ORCA M40 2020 is the most affordable bike of this model and has a price of 1799$. On the other hand, Orbea ORCA M11eLTD-D 2020, is the most expensive and costs 9599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 1799$. Comparing this to the average Race bike price, we see that the price is 86.21% smaller.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the ORCA M40 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea ORCA M40 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Orbea ORCA M40 bike has 7 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
