Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
160cm - 172cm
MD
167cm - 180cm
LG
175cm - 187cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ordu carbon OMP, monocoque, 1" - 1 1/8" mini tapered head tube, BB386 °46mm, powermeter compatible, internal cable routing, EC/DC compatible, 130mm rear spacing, vertical dropouts, UCI legal.
Suspension Fork
Ordu OMP carbon fork, aluminum steerer, 1" - 1 1/8" mini tapered head tube
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9150 Di2
Front Derailleur
Shimano Dura-Ace 9150 Di2
Shift Levers
Shimano SW-671
Cassette
Shimano Dura-Ace 9100 11-28t 11-Speed
Crank
Rotor Flow 36x52At
Bottom Bracket
BB86/BB92, press-fit
Chain
Shimano HG 901
Pedals
N/A
Wheels
Rims
DT ARC 1400 Dicut 48 Carbon TL
Tires
Hutchinson Fusion 5 All SeasonTLR 700x25
Brakes
Brakes
Tri Rig Omega X Standart
Brake Levers
Vision Metron Carbon
Cockpit
Handlebar
Vision Metron Carbon with SnakeBite stem
Headset
FSA 1-1/8"-1" Integrated Aluminium Cup
Seat
Saddle
Tgale Tirox size 132 mm
Seatpost
Orbea Ordu OMP
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.26 mm | 1.26 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 280 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 569 mm | 594 mm | 601 mm | 624 mm | 646 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60 mm | 60 mm | 59 mm | 56 mm | 56 mm |
| Stack | 456 mm | 481 mm | 506 mm | 531 mm | 556 mm |
| Reach | 361 mm | 381 mm | 401 mm | 421 mm | 436 mm |
| Top Tube Length | 460 mm | 485 mm | 510 mm | 535 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 77 ° |
| Seat Tube Length | 493 mm | 508 mm | 533 mm | 559 mm | 587 mm |
| Head Tube Angle | 71 ° | 71 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 71.6 mm | 85 mm | 103.7 mm | 128 mm | 154 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 957 mm | 979 mm | 986 mm | 1009 mm | 1032 mm |
| Bottom Bracket Drop | 60 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 751 mm | 766 mm | 771 mm | 816 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 167 cm | 175 cm | 182 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 187 cm | 195 cm |
Model Overview

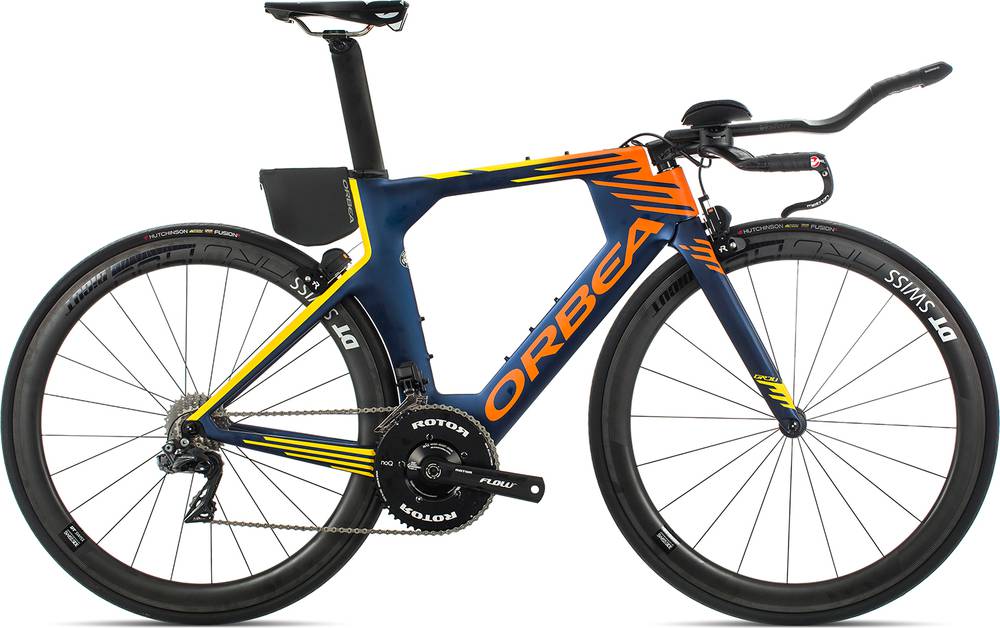

ORDU M10iTEAM belongs to the Orbea Ordu model. 35 bikes variations carry this model name so far. Take a sneak peek at all Orbea Ordu bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Orbea ORDU M30 2019 has a starting price of 2399$. Orbea ORDU M10iTEAM 2019 on the other hand is the most expensive at 8999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 8999$. Comparing this to the average Triathlon bike price, we see that the price is 115.44% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the ORDU M10iTEAM model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORDU M10iTEAM is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
