Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
153cm - 164cm
SM
161cm - 176cm
MD
173cm - 186cm
LG
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ordu carbon OME, monocoque, 1-1/8" head tube, PF 86mm, powermeter compatible, internal cable routing, EC/DC compatible, 130mm rear spacing, vertical dropouts, UCI legal, external battery compatible.
Suspension Fork
Ordu OME carbon fork, aluminum steerer, 1-1/8" head tube
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano Bar End SL-BSR1
Cassette
Shimano 105 R7000 11-28t 11-Speed
Crank
FSA Gossamer Compact MegaExo 36x52t
Bottom Bracket
BB86/BB92, press-fit
Chain
Fsa Team Issue
Pedals
N/A
Wheels
Rims
Vision Team 25 Clincher
Tires
Vittoria Rubino Foldable 700x23 60TPI G+
Brakes
Brakes
Orbea OC-II
Brake Levers
Vision Trimax Aero Alloy
Cockpit
Stem
Orbea OC-III
Handlebar
Vision Trimax Alloy
Headset
FSA 1-1/8" Integrated Carbon Cup
Seat
Saddle
Prologo Zero Tri T2,0
Seatpost
Ordu OME Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 608 mm | 616 mm | 650 |
| Rake | 53 mm | 54 mm | 44 mm | 46 mm |
| Trail | 63 mm | 59 mm | 57 mm | 55 mm |
| Stack | 496 mm | 524 mm | 552 mm | 581 mm |
| Reach | 366 mm | 393 mm | 420 mm | 444 mm |
| Top Tube Length | 471 mm | 504 mm | 540 mm | 578 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 77 ° |
| Seat Tube Length | 520 mm | 550 mm | 575 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 73 ° | 73 ° |
| Head Tube Length | 92 mm | 120 mm | 139 mm | 169 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 970 mm | 1003 mm | 1011 mm | 1045 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 750 mm | 778 mm | 803 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 161 cm | 173 cm | 184 cm |
| Rider Max Height | 164 cm | 176 cm | 186 cm | 195 cm |
About this model

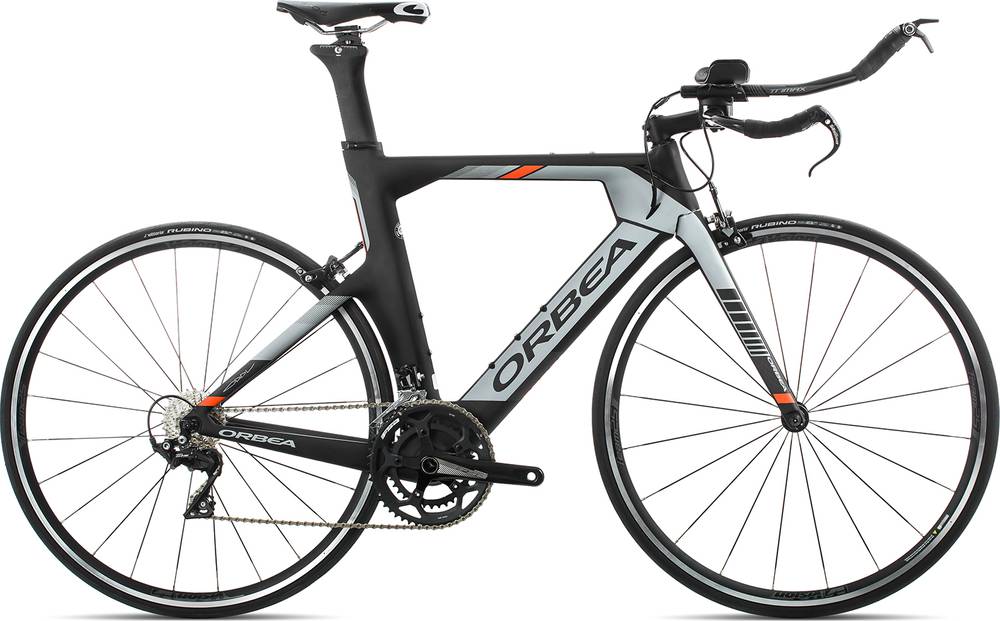

ORDU M30 belongs to the Orbea Ordu model. 35 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Orbea ORDU M30 2019 has a starting price of 2399$. Orbea ORDU M10iTEAM 2019 on the other hand is the most expensive at 8999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. Comparing this to the average Triathlon bike price, we see that the price is 74.11% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the ORDU M30 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORDU M30 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
ORDU M30 comes in 4 sizes, that range from 153 cm – 195 cm (5.02 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
