Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
170cm - 180cm
MD/LG
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing.
Suspension Fork
Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, thread M12x2P1, Speed release compatible dropout. UCI Legal.
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150
Front Derailleur
Shimano 105 Di2 R7150
Shift Levers
Shimano R9180
Cassette
Shimano 105 R7100 11-34t 12-Speed
Crank
Shimano 105 R7100 34x50t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano M7100
Wheels
Rims
Vision 55 SC Disc Carbon TLR CL
Tires
Vittoria Rubino Pro IV G2.0 700x25c
Brakes
Brakes
Shimano R9270 Hydraulic Disc
Cockpit
Handlebar
Orbea Ordu OMX
Headset
FSA 1-1/8"-1" Integrated Aluminium Cup
Seat
Saddle
Fizik Argo Vento R5 size 140mm
Seatpost
Orbea Ordu OMX, w/Micro tilt adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM/MD | MD/LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 0.75 mm | 0.776 mm | 0.776 mm | 0.821 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 578 mm | 614 mm | 614 mm | 654 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 481 mm | 516 mm | 516 mm | 566 mm |
| Reach | 641 mm | 665 mm | 665 mm | 689 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Length | 59 mm | 96 mm | 96 mm | 149 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 971 mm | 1007 mm | 1007 mm | 1048 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 746 mm | 781 mm | 781 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 180 cm | 185 cm | cm |
About this model

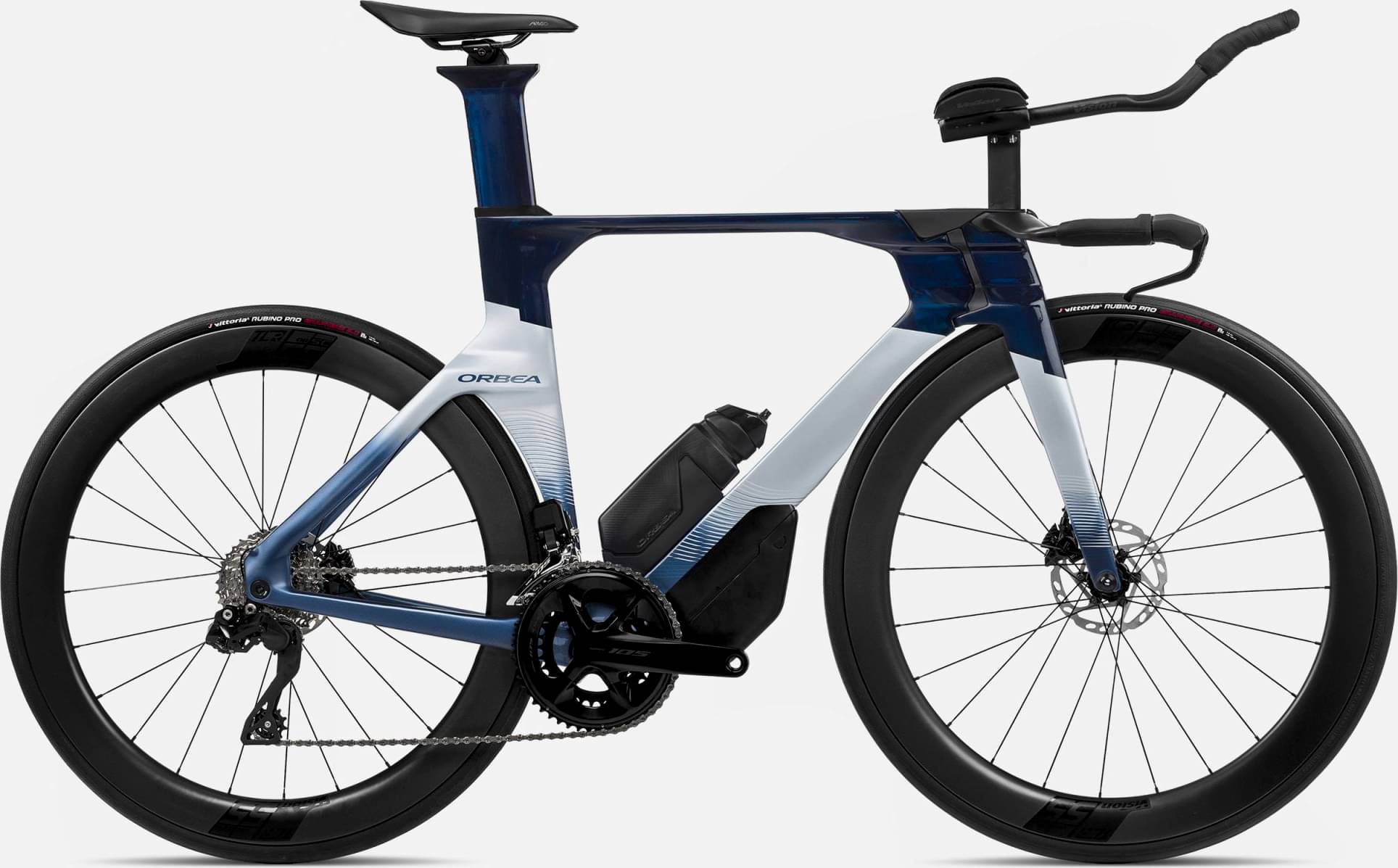

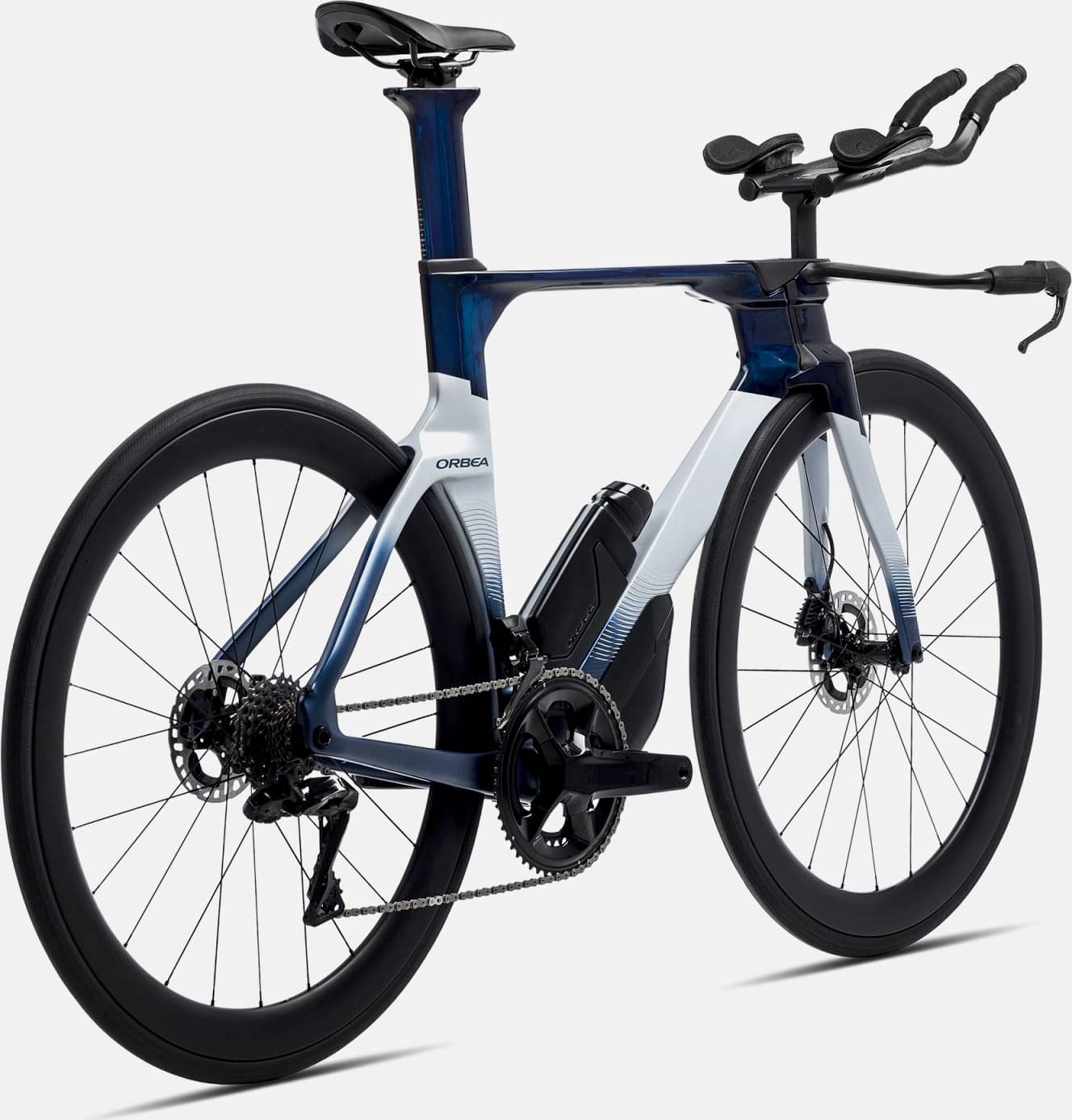

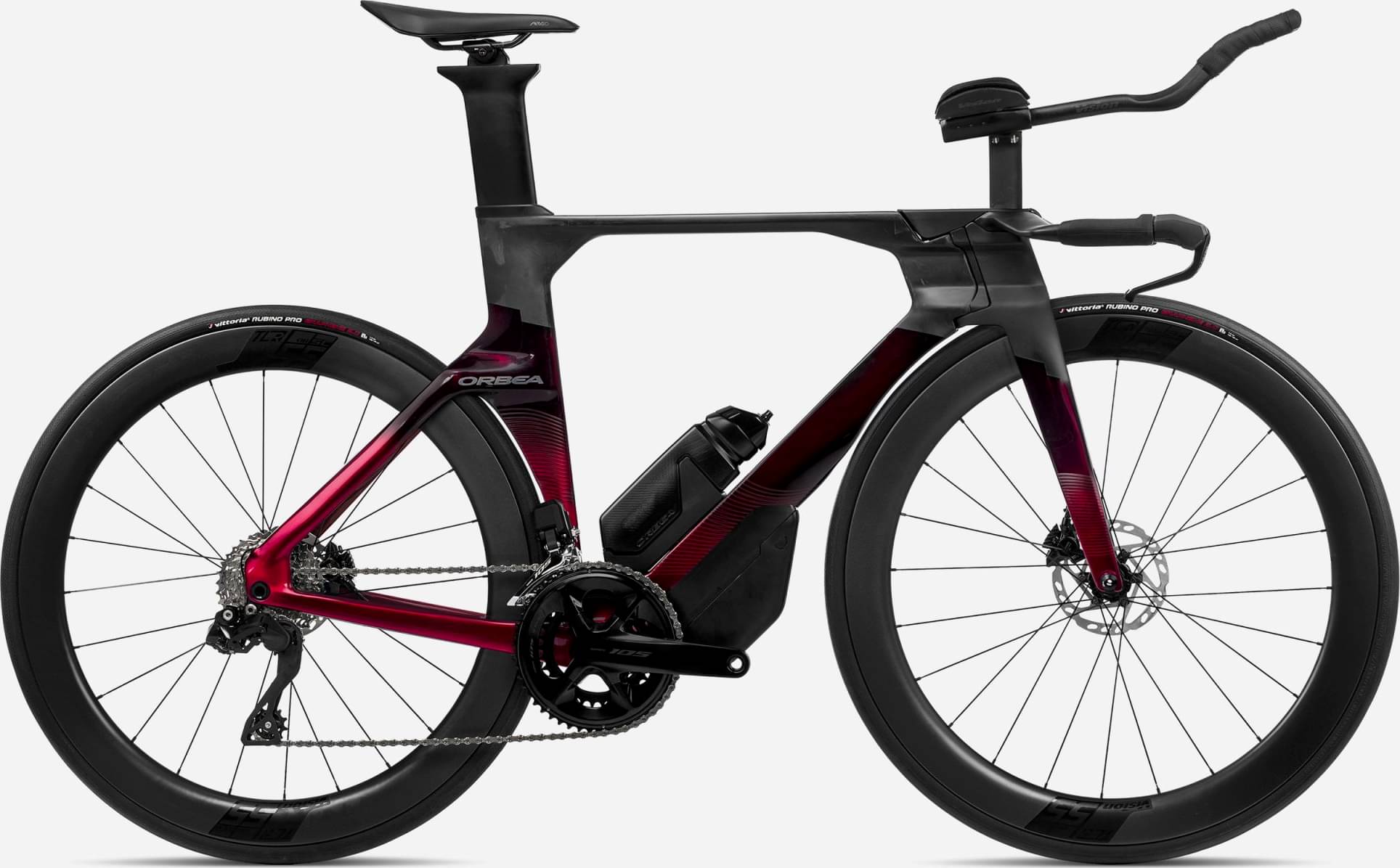

ORDU M30iLTD is part of the Orbea Ordu model. There are 35 bikes that carry this model name. You can easily view all of the Orbea Ordu bikes models from 2023, here.
Model range prices
The most economical model, the Orbea ORDU M30iLTD 2023 has a starting price of 7299$. Orbea ORDU M10iLTD 2023 on the other hand is the most expensive at 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 7299$. If we compare this with the average Triathlon bike cost we notice that the price is 74.74% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the ORDU M30iLTD model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ORDU M30iLTD comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
