Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 150mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Suspension Fork
Fox 36 Float Factory 160 Grip2 RC2 QR15x110 Kashima
Rear Shock
Fox DHX2 Factory 2-Position Adjust SLS Spring Kashima 230x60mm Fox Float X2 Factory 2-Position Adjust Kashima custom tune 2 Fox DPX2 Factory 3-Position Adjust Evol Kashima 230x60mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle Gold
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle Gold
Cassette
SRAM XX1 XG-1299 Eagle 10-50t 12-Speed
Crank
SRAM XX1 Eagle Dub Black Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Chain
SRAM XX1 Eagle 12-Speed Gold
Chain Guide
OneUp Components ISCG05 Guide
Pedals
N/A
Wheels
Front Hub
DT Swiss XMC-1200 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rear Hub
DT Swiss XMC-1200 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rims
ENVE M730 DT 240 TL 15/110mm (6-bolt) TL DT E-1501 Spline 30c TLR IS (6-bolt)
Tires
Maxxis Aggressor 2.50" 60 TPI Exo TLR
Brakes
Brakes
SRAM Code RSC Hydraulic Disc
Brake Levers
Avid Guide RSC Hydraulic
Cockpit
Stem
Race Face Turbine R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 800mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail Selle Italia X-LR Ti Flow
Seatpost
Crank brothers Highline 31.6x425/150mm Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31.6x465/170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 753 mm | 783 mm | 819 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 116 mm | 115 mm | 115 mm |
| Stack | 621 mm | 630 mm | 643 mm |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 589 mm | 617 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1193 mm | 1223 mm | 1259 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 743 mm | 773 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 170 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 198 cm |
About this model

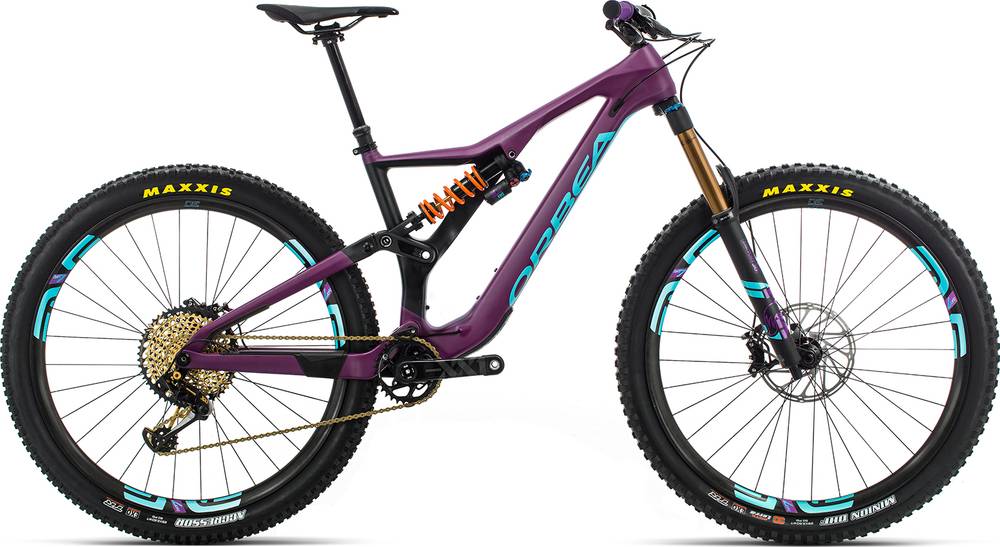

RALLON M-LTD is an Orbea Rallon model. There are 25 bikes that carry this model name. Take a sneak peek at all Orbea Rallon bikes models from 2018, by clicking here.
Model range prices
Orbea RALLON M10 2018 is the most affordable bike of this model and has a price of 5499$. On the other hand, Orbea RALLON M-LTD 2018, is the most expensive and costs 9999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2018, its price was 9999$. If we compare this with the average Enduro bike cost we notice that the price is 177.83% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Orbea RALLON M-LTD 2018 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The RALLON M-LTD has a rear shock with a travel of 150mm. The model Fox DHX2 Factory 2-Position Adjust SLS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the RALLON M-LTD bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The RALLON M-LTD has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 198 cm (5.18 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
