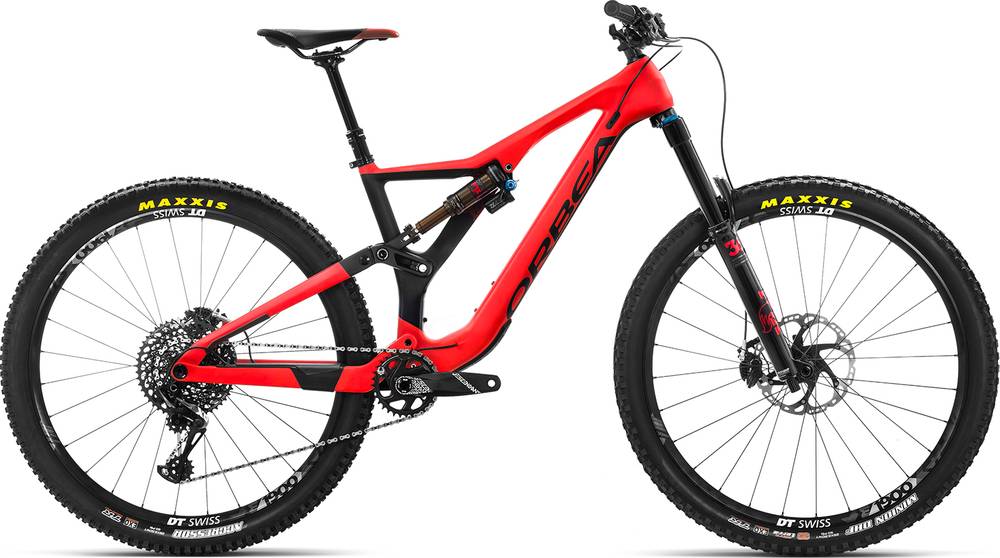

Orbea RALLON M10 2018
2018 Mountain
Estimate price |
5,499$
Weight | 14.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 150mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Suspension Fork
Fox 36 Float Performance 160 3-Position QR15x110 Fox 36 Float Factory 160 Grip2 RC2 QR15x110 Kashima
Rear Shock
Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 230x60mm Fox Float X2 Factory 2-Position Adjust Kashima custom tune 2 Fox DHX2 Factory 2-Position Adjust SLS Spring Kashima 230x60
Drivetrain
Rear Derailleur
SRAM X01 Eagle Gold
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX XG-1275 Eagle 10-50t 12-Speed
Crank
SRAM Descendant CNC Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Chain
SRAM GX Eagle 12-Speed
Chain Guide
ONE-UP ISCG05 Chainguide
Pedals
N/A
Wheels
Front Hub
DT Swiss E-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rear Hub
DT Swiss E-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rims
DT E-1900 Spline 30c TLR 15/110mm IS (6-bolt) DT E-1501 Spline 30c TLR IS (6-bolt)
Tires
Maxxis Aggressor 2.50" 60 TPI Exo TLR
Brakes
Brakes
Shimano XT M8020 Hydraulic Disc SRAM Code RSC Hydraulic Disc
Brake Levers
Shimano XT M8000 Hydraulic
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Aeffect 35 20mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail Selle Italia X-LR Ti Flow
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31,6x425/150mm Crank brothers Highline 31.6x465/170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 753 mm | 783 mm | 819 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 116 mm | 115 mm | 115 mm |
| Stack | 621 mm | 630 mm | 643 mm |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 589 mm | 617 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1193 mm | 1223 mm | 1259 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 743 mm | 773 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 170 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 198 cm |
Model Overview
RALLON M10 is part of the Orbea Rallon model. There are 25 bikes that carry this model name. Take a sneak peek at all Orbea Rallon bikes models from 2018, by clicking here.
Model range prices
Orbea RALLON M10 2018 is the cheapest bike model and costs 5499$. Orbea RALLON M-LTD 2018 is the most expensive one and costs 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orbea RALLON M10 price was 5499$. Doing a quick comparison, we notice that RALLON M10 price is 52.79% more expensive than the average cost of an Enduro bike.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Orbea RALLON M10 it’s weighing 14.27 kg (31.46 lbs). At this weight, is equally heavier with average. In conclusion, the average Enduro bike weighs 0% less than RALLON M10.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory 3-Position Adjust Evol model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Orbea RALLON M10 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea RALLON M10 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 198 cm (5.18 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orbea RALLON M10 comes with a dropper post. Therefore, climbing or descending will be a breeze.
