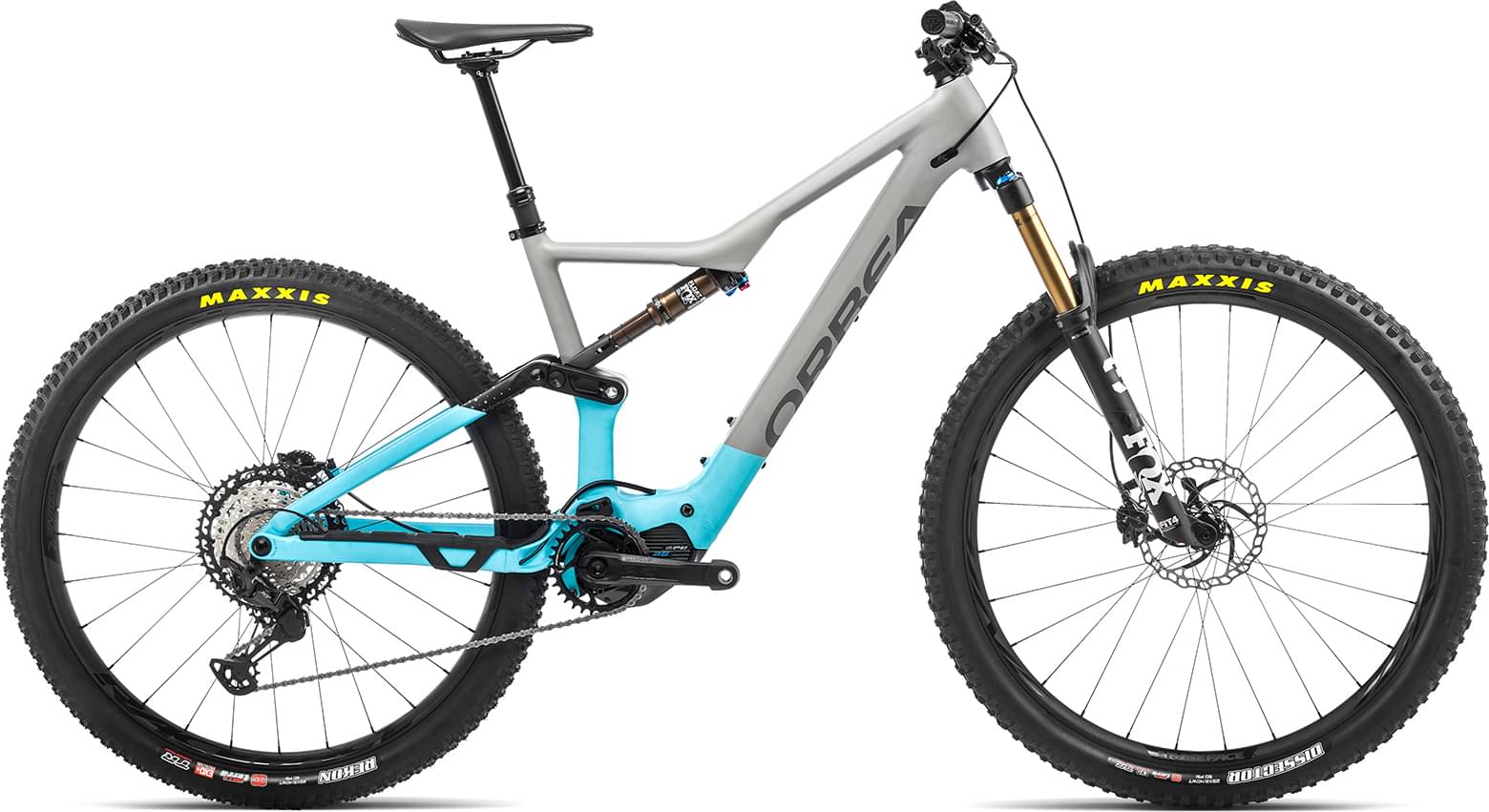

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
Suspension Fork
Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M8100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face TURBINE-R30 TLR 15/110mm IS
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano XT M8100 Hydraulic Disc
Disk Rotors
180mm Front /180mm Rear
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 540Wh
Remote
Shimano EW-EN100 Junction
Charger
Orbea Smart Charger (42V-4A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 53 mm | 49 mm | 44 mm | 36 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview
RISE H10 belongs to the Orbea E Rise model. Orbea released 36 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea RISE H30 2022 has a starting price of 5626$. Orbea RISE M-LTD 20mph 2022 on the other hand is the most expensive at 11599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Orbea released this model in 2022, its price was 7538$. Doing a quick comparison, we notice that RISE H10 price is 124.01% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory 3-Position Adjust rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on RISE H10 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea RISE H10 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orbea RISE H10 includes a dropper post. Therefore, climbing or descending will be a breeze.
