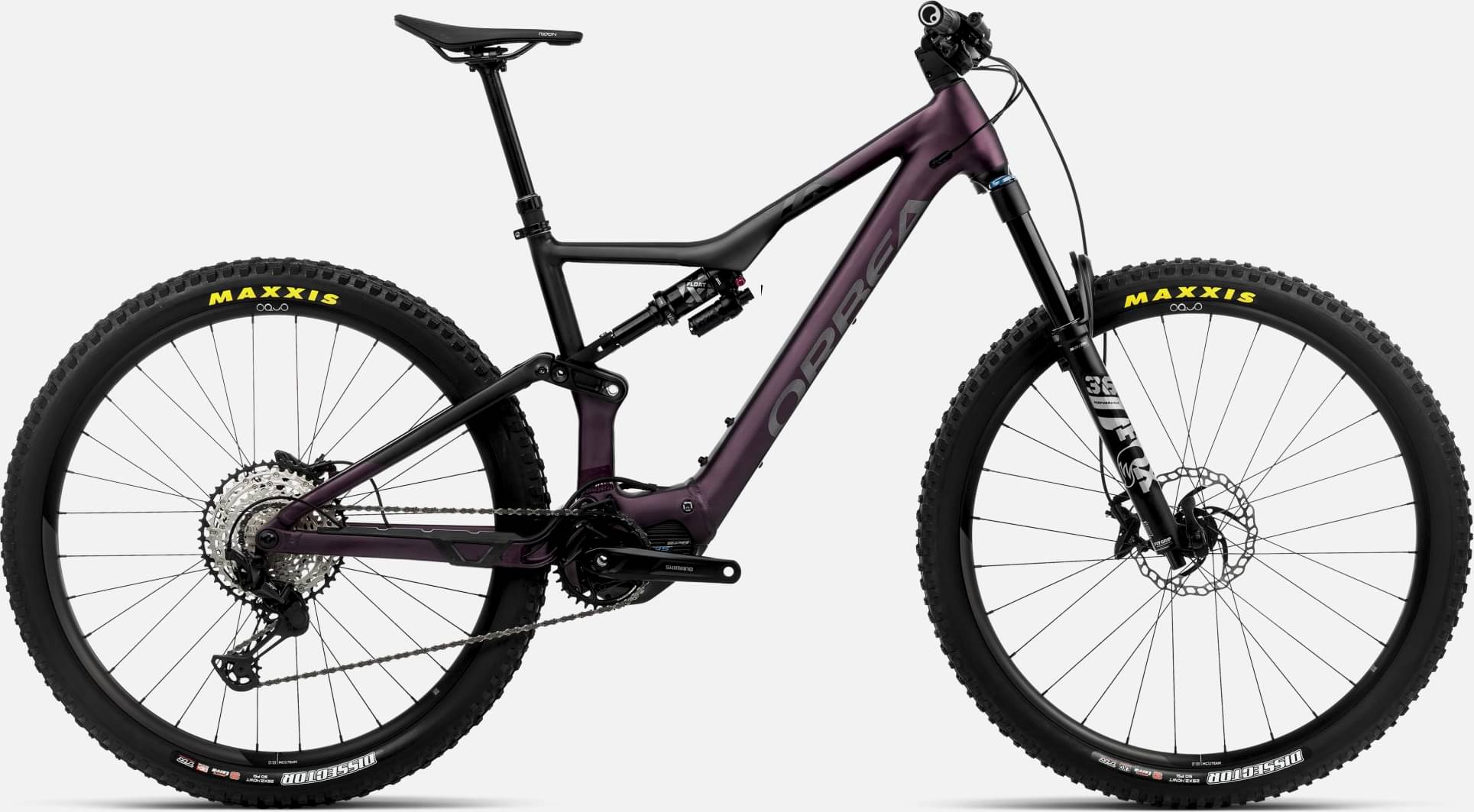

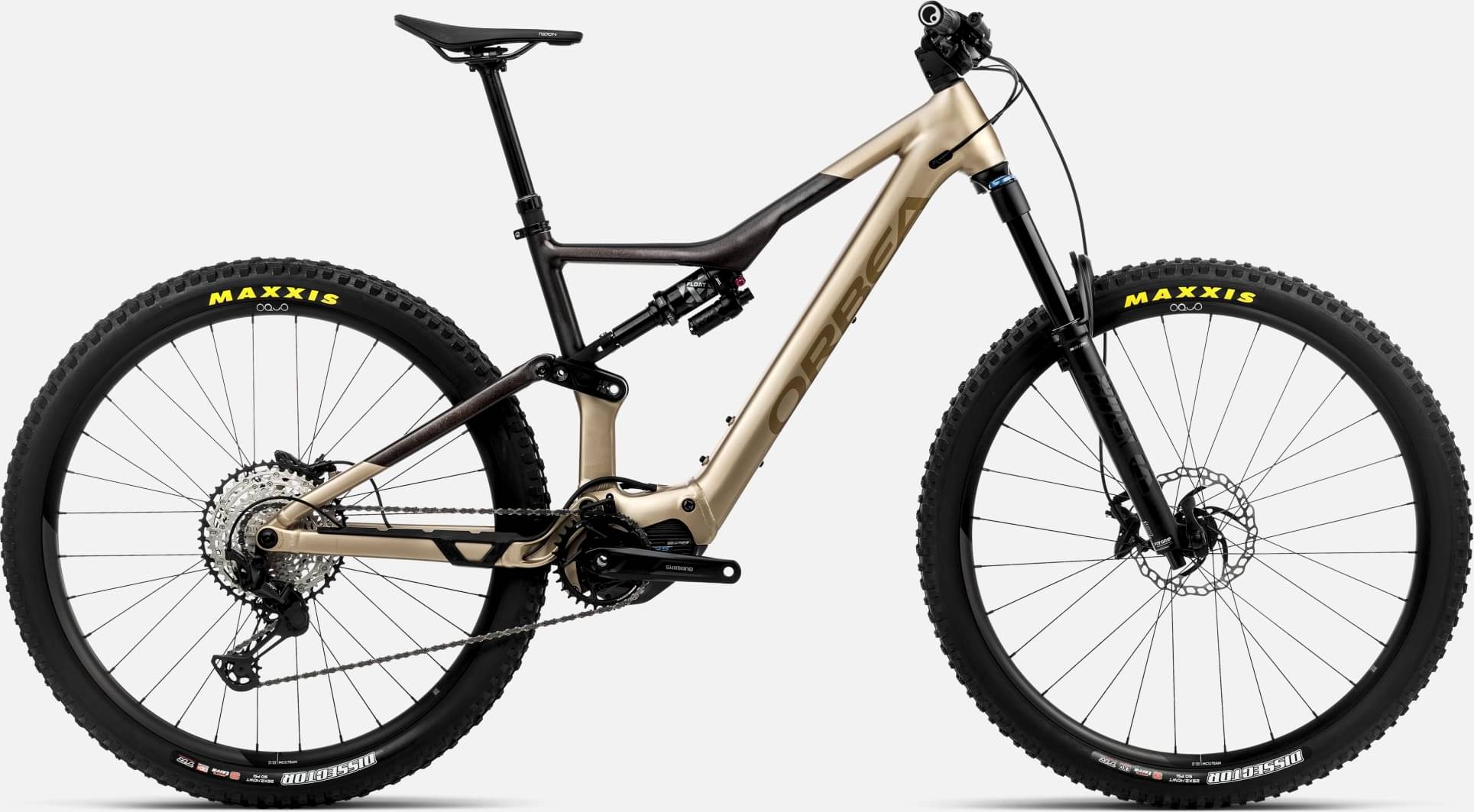

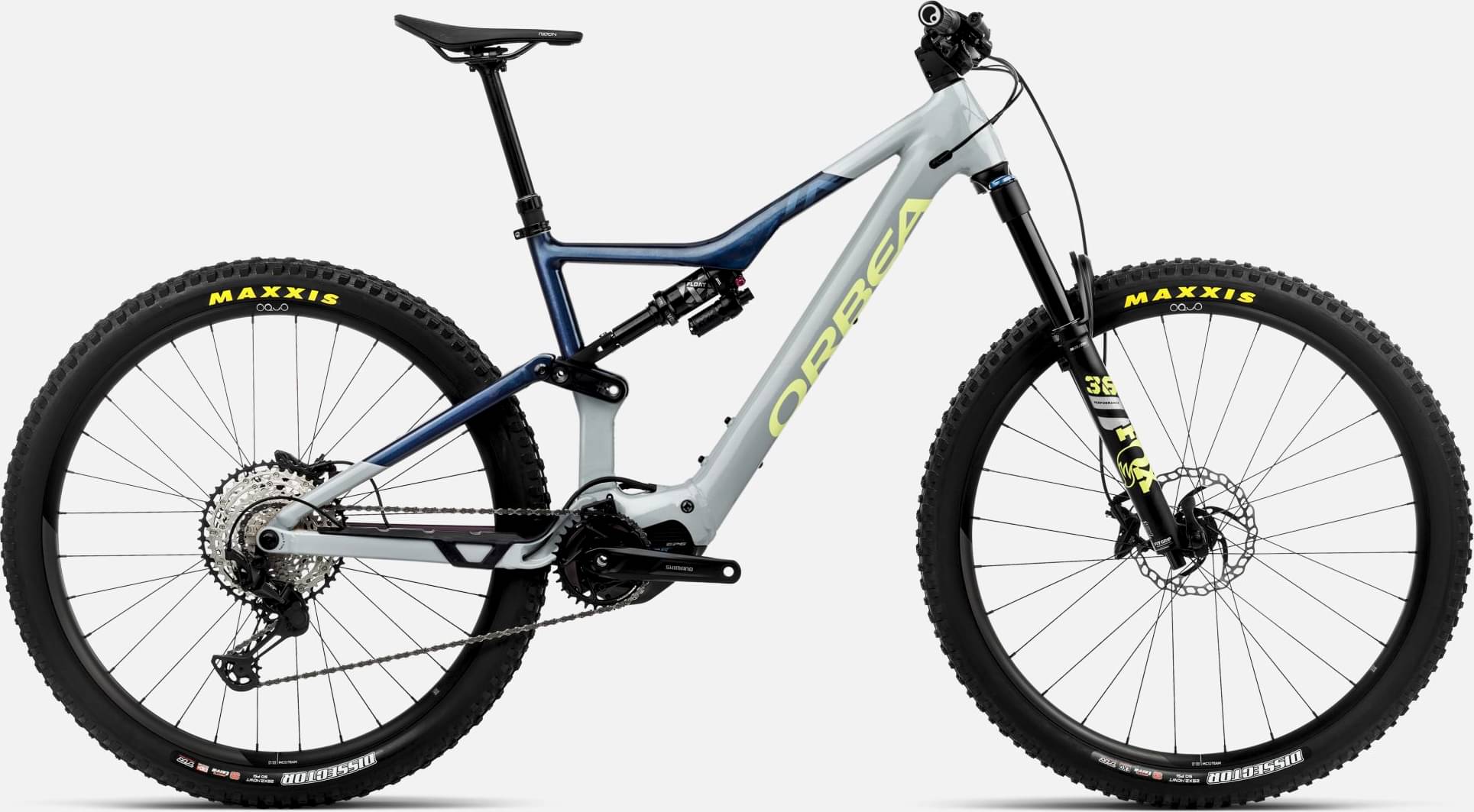

Orbea RISE H10 20mph 2024
2024 E-bike
Estimate price |
6,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Hydro 140mm travel 29" Boost 12x148
Suspension Fork
Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M7100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Oquo Mountain Control MC32TEAM, alloy hookless rim, DT350 6IS hub, 30mm internal width, Sapim D-Sprint / Race spokes, 29"
Tires
Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6120 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC21 Alu SL, Rise20, Width 800
Grips
Ergon GE10
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE H10 20mph completes the Orbea E Rise model. There are 36 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Orbea RISE H20 20mph 2024 has a starting price of 5999$. Orbea RISE M-LTD 20mph 2024 on the other hand is the most expensive at 11499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2024 for 6599$. Comparing this to the average Trail e-bike price, we see that the price is 96.11% more expensive.
RISE H10 20mph components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The RISE H10 20mph has a rear shock with a travel of 140mm. The model Fox FLOAT X Performance 2-Position Evol is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Orbea RISE H10 20mph 2024, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea RISE H10 20mph is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the RISE H10 20mph. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
