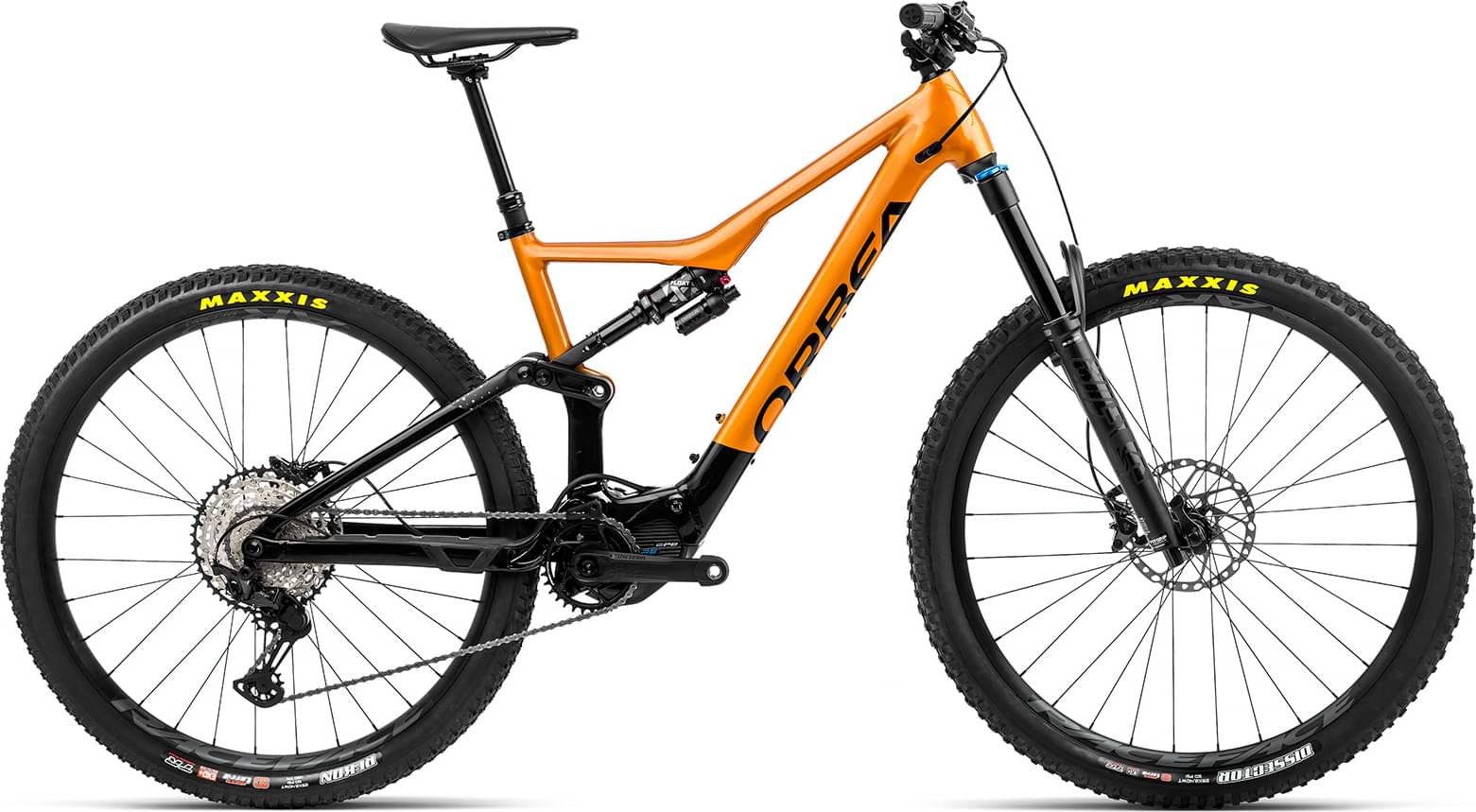

Orbea RISE H15 20mph 2022
2022 E-bike
Estimate price |
6,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
Suspension Fork
Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Disk Rotors
180mm Front /180mm Rear
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Aeffect 35 20mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 540Wh
Remote
Shimano SC-E7000
Charger
Orbea Smart Charger (42V-4A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 53 mm | 49 mm | 44 mm | 36 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview
RISE H15 20mph belongs to the Orbea E Rise model. Orbea released 36 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea RISE H30 2022 has a starting price of 5626$. Orbea RISE M-LTD 20mph 2022 on the other hand is the most expensive at 11599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 6799$. If we compare this with the average Trail e-bike cost we notice that the price is 102.05% more expensive.
RISE H15 20mph components
Fork
Orbea RISE H15 20mph 2022 e-bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox FLOAT X Performance 2-Position Evol, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on RISE H15 20mph are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
