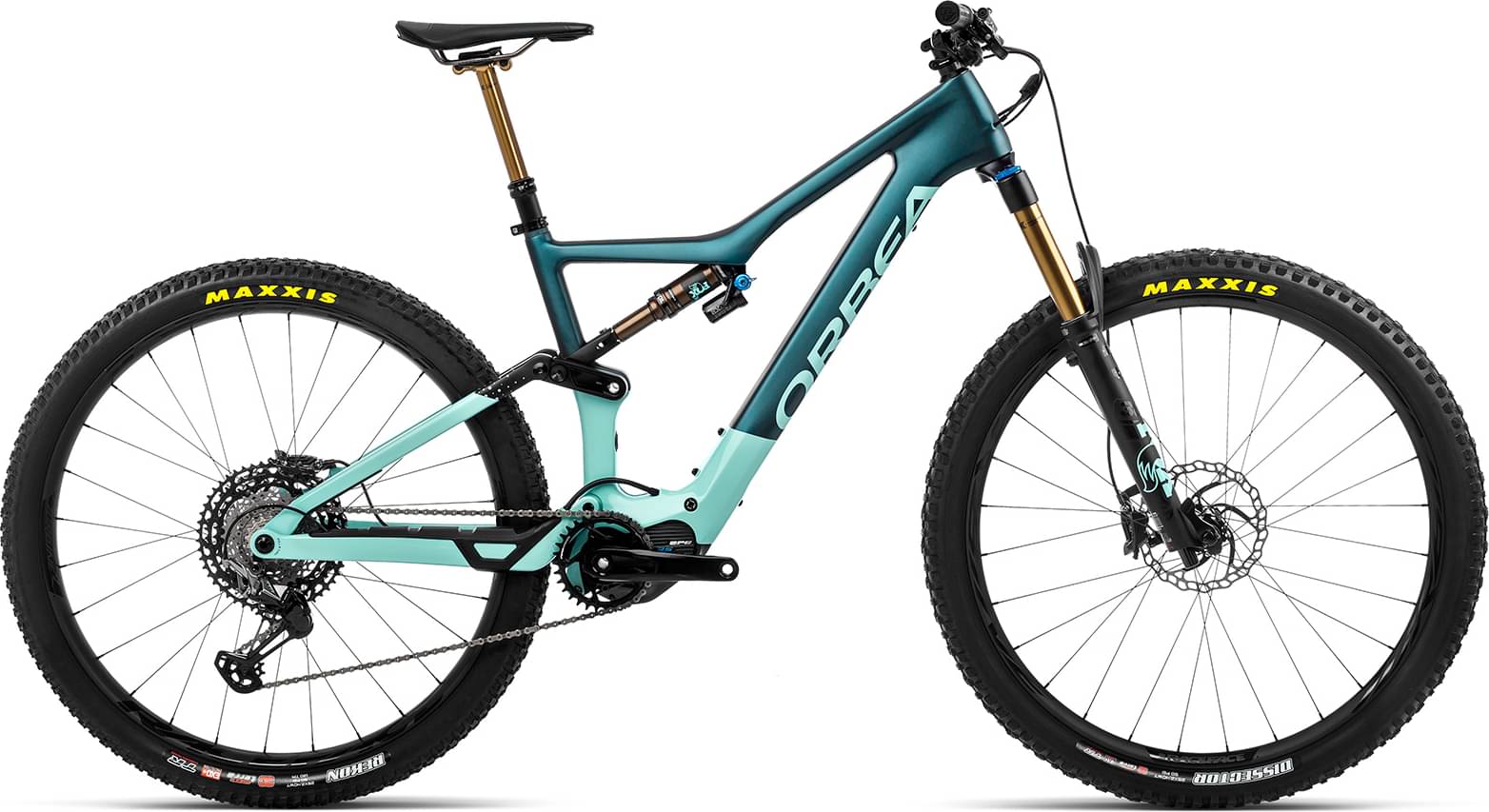

Orbea RISE M-TEAM 20mph 2022
2022 E-bike
Estimate price |
10,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Rear Shock
Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XTR M9100
Cassette
Shimano XTR M9100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano CN-9100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face TURBINE-R30 TLR 15/110mm IS
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano XTR M9120Hydraulic Disc
Disk Rotors
180mm Front /180mm Rear
Cockpit
Stem
Race Face Turbine R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga Kium rail
Seatpost
Fox Transfer Factory Kashima Dropper 31.6
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 360Wh
Remote
Shimano EW-EN100 Junction
Charger
Orbea RS Charger (36V-2A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE M-TEAM 20mph completes the Orbea E Rise model. 36 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Rise e-bikes models from 2022, by clicking here.
Model range prices
Orbea RISE H30 2022 is the most economical model, with a starting price of 5626$. Orbea RISE M-LTD 20mph 2022 on the other hand costs 11599$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10499$. Comparing this to the average Trail e-bike price, we see that the price is 212.01% more expensive.
RISE M-TEAM 20mph components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Orbea RISE M-TEAM 20mph e-bike has the Fox FLOAT X Factory 2-Position Evol model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Orbea RISE M-TEAM 20mph 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RISE M-TEAM 20mph comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Orbea RISE M-TEAM 20mph e-bike has 4 sizes, in the range of 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the RISE M-TEAM 20mph. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
