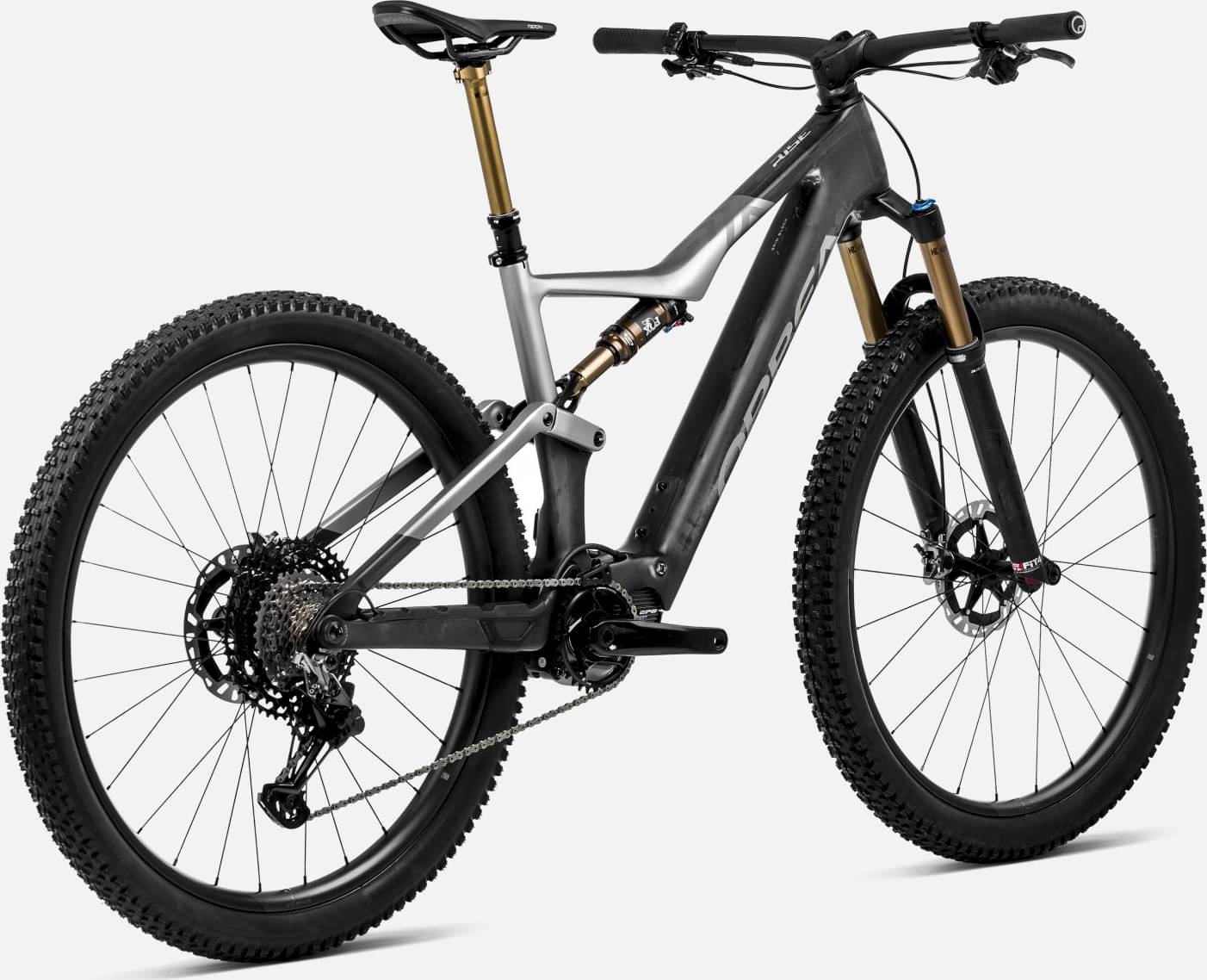

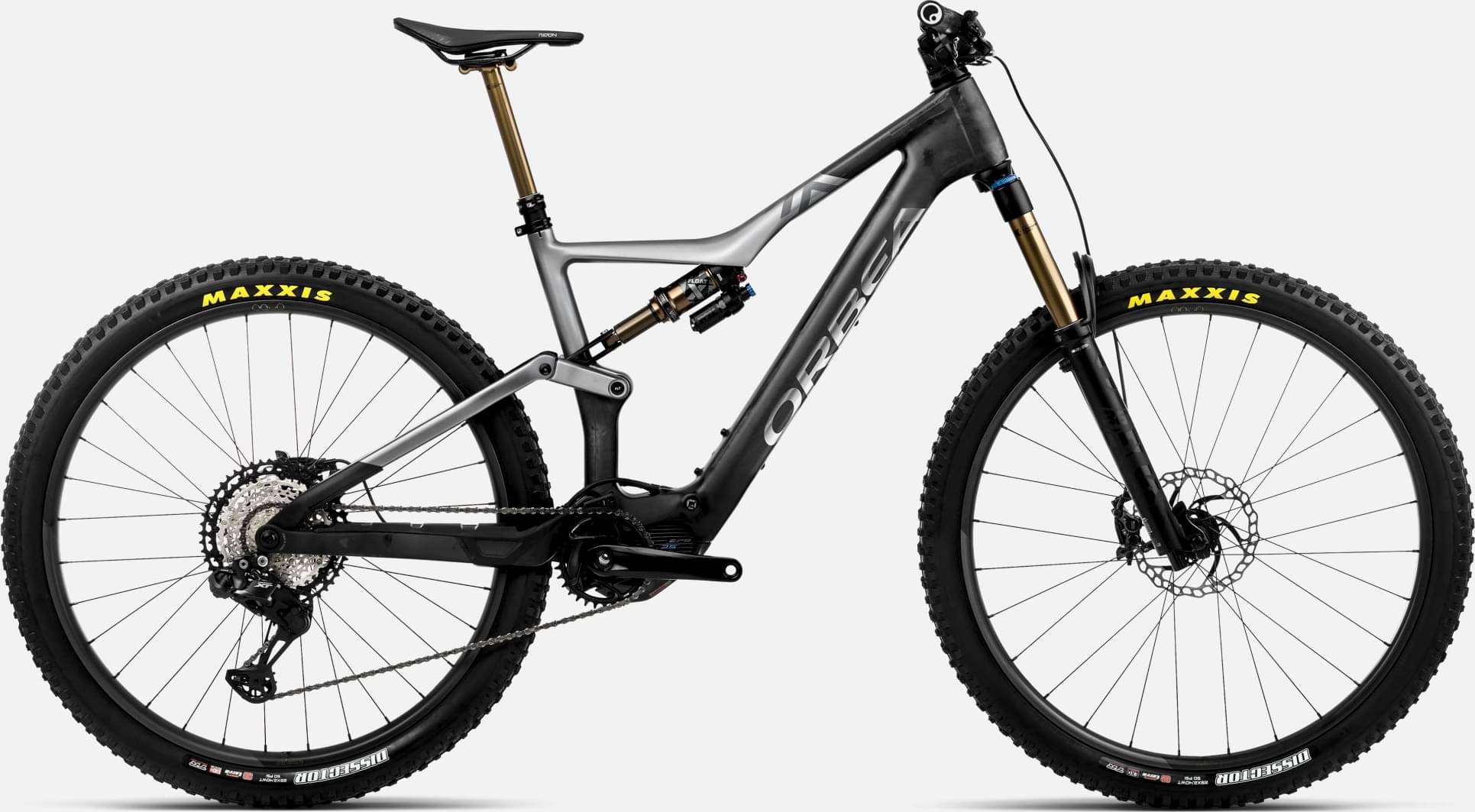

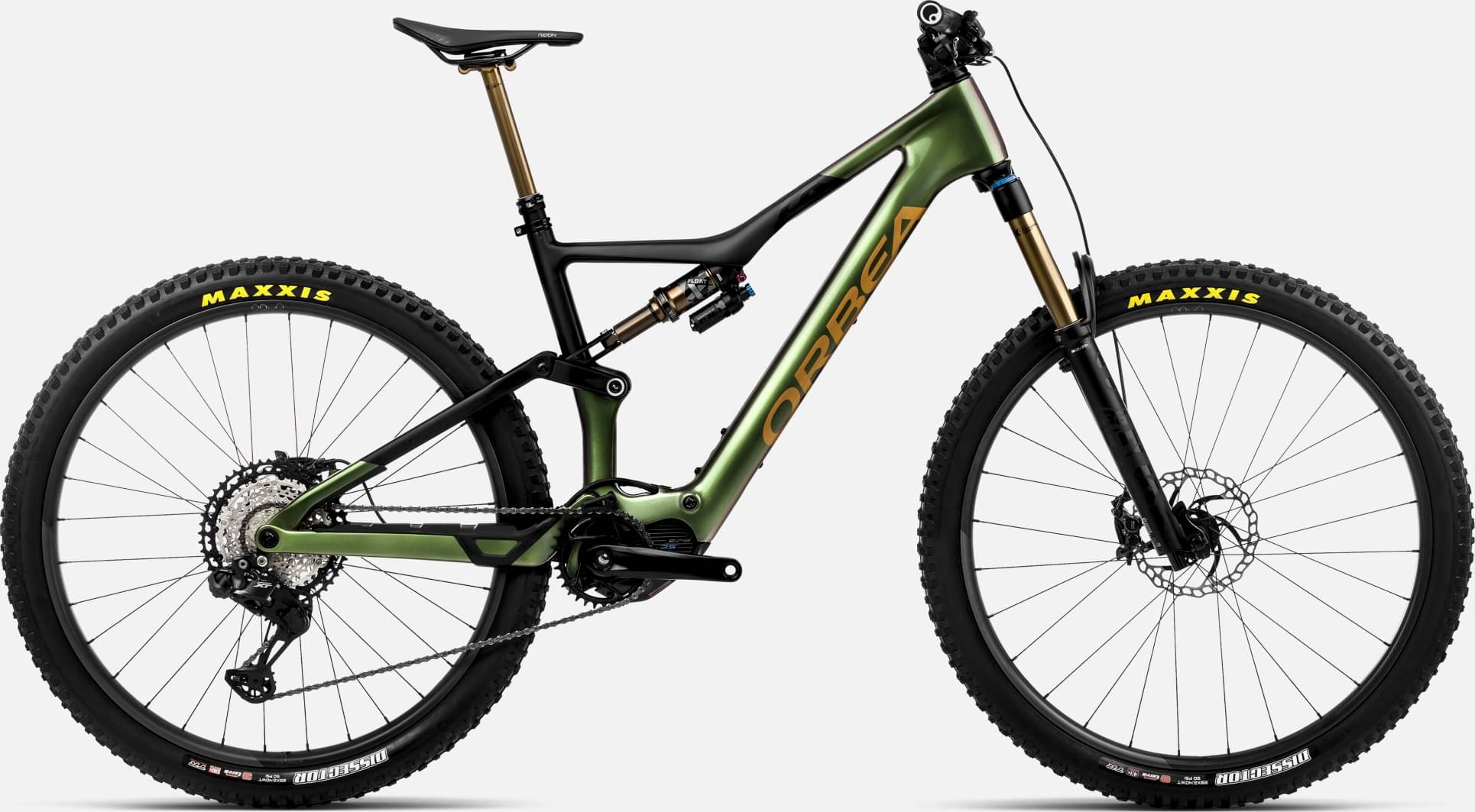

Orbea RISE M-TEAM 20mph 2024
2024 E-bike
Estimate price |
9,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset Ultegra Di2, e*thirteen -
Suspension Full -
Motor Shimano mid-drive -
Battery Orbea Internal 360Wh (Optional 540Wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Rear Shock
Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT Di2 M8150 12s SGS Shadow Plus
Shift Levers
Shimnano M8150
Cassette
Shimano CS-M8100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M8100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Oquo Mountain Control MC32LTD, carbon hookless rim, DT350 6IS hub, 30mm internal width, Sapim D-Sprint / Race spokes, 29"
Tires
Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Grips
Ergon GE10
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
Fox Transfer Factory Kashima Dropper 31.6
Motor & Battery
Motor
Shimano EP801-RS
Battery
Orbea Internal 360Wh (Optional 540Wh)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE M-TEAM 20mph is an Orbea E Rise model. 36 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Orbea RISE H20 20mph 2024 is the cheapest e-bike model and costs 5999$. Orbea RISE M-LTD 20mph 2024 is the most expensive one and costs 11499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2024 for 9999$. In conclusion, this e-bike price is 197.15% higher than the price of the average Trail e-bike.
RISE M-TEAM 20mph components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Orbea RISE M-TEAM 20mph e-bike has the Fox FLOAT X Factory 2-Position Evol model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Orbea RISE M-TEAM 20mph 2024, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RISE M-TEAM 20mph comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
RISE M-TEAM 20mph comes in 4 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
