Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset SLX, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano SLX M7100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Disk Rotors
180mm Front /180mm Rear
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 360Wh
Remote
Shimano EW-EN100 Junction
Charger
Orbea RS Charger (36V-2A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |

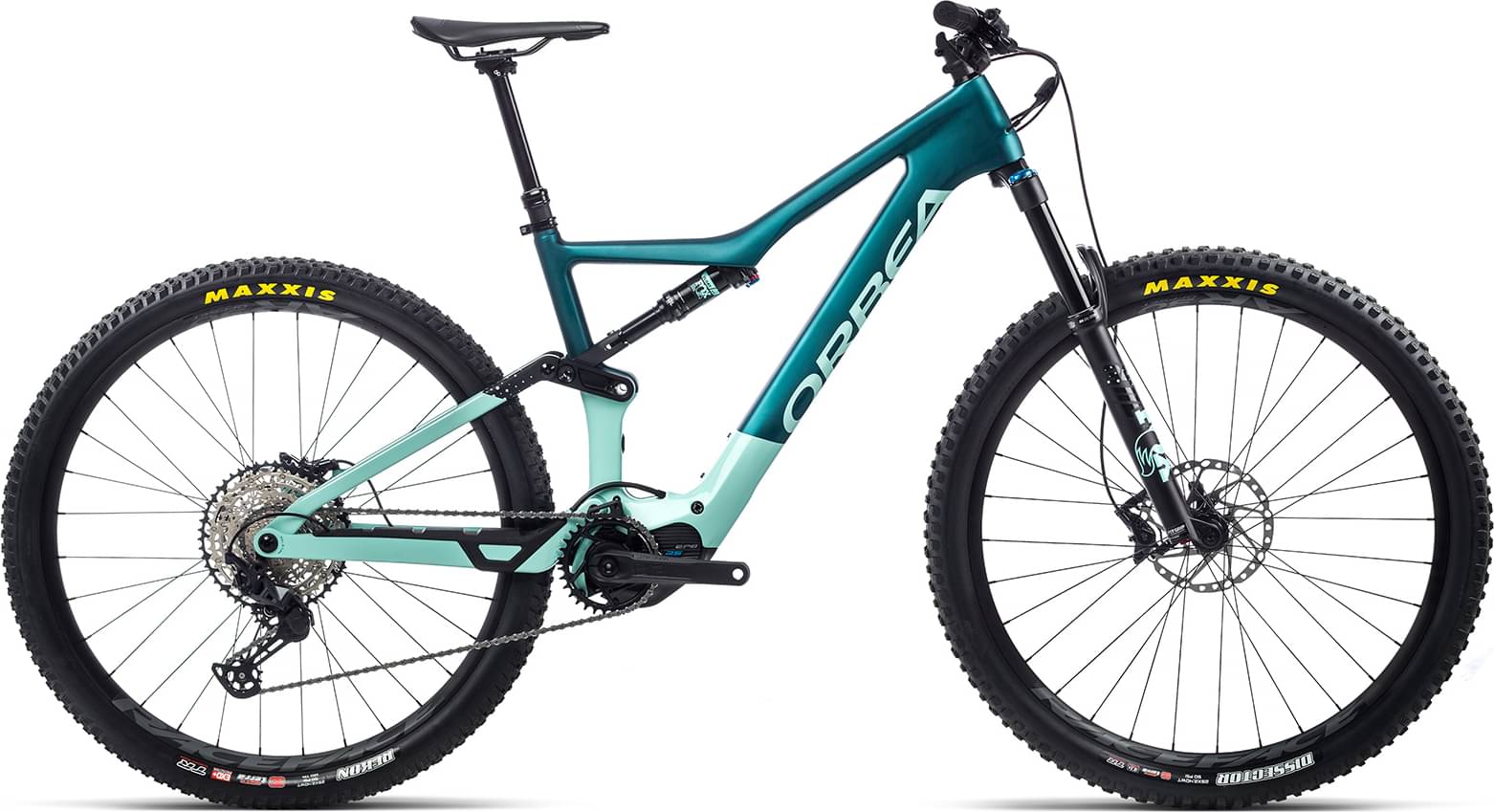

About this model
RISE M20 completes the Orbea E Rise model. There are 36 e-bikes that carry this model name. Take a sneak peek at all Orbea E Rise e-bikes models from 2022, by clicking here.
Model range prices
Orbea RISE H30 2022 is the most economical model, with a starting price of 5626$. Orbea RISE M-LTD 20mph 2022 on the other hand costs 11599$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 7007$. Comparing this to the average Trail e-bike price, we see that the price is 108.23% higher.
RISE M20 components
Fork
The RISE M20 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS Performance 3-Position Evol custom tune 210x55mm model, with a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the RISE M20 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea RISE M20 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
RISE M20 comes in 4 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
