Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
153cm - 167cm
SM
164cm - 173cm
MD
178cm - 184cm
LG
189cm - 192cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm.
Suspension Fork
Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system
Drivetrain
Rear Derailleur
Shimano Ultegra RX805 GS Direct mount
Front Derailleur
Shimano Ultegra Di2 R8050
Shift Levers
Shimano ST-8070
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
FSA SL-K Modular Adventure 30x46t
Bottom Bracket
PF30, press-fit
Chain
KMC X11-EL
Pedals
N/A
Wheels
Front Hub
Orbea Road 12x100mm, thread M12xP1.5
Rear Hub
Orbea Road 12x142mm, thread M12xP1.5
Rims
DT Swiss P 1850 Spline DB 23 CL TL
Tires
Schwalbe G-ONE Allround, 40-622, Black, Folding
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
FSA Energy
Handlebar
FSA Energy Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Fizik Antares R5 Versus EVO Regular
Seatpost
Orbea OC-III Carbon 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 285 mm | 285 mm | 288 mm |
| Front Center | 597 mm | 610 mm | 622 mm | 639 mm | 656 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 69 mm | 69 mm | 68 mm | 68 mm |
| Stack | 537 mm | 552 mm | 567 mm | 592 mm | 617 mm |
| Reach | 362 mm | 370 mm | 377 mm | 384 mm | 392 mm |
| Top Tube Length | 523 mm | 535 mm | 547 mm | 562 mm | 577 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 554 mm | 590 mm | 630 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 122 mm | 138 mm | 156 mm | 182 mm | 212 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1009 mm | 1022 mm | 1035 mm | 1052 mm | 1070 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm |
| Standover Height | 756 mm | 788 mm | 820 mm | 850 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 164 cm | 178 cm | 189 cm | 185 cm |
| Rider Max Height | 167 cm | 173 cm | 184 cm | 192 cm | 195 cm |

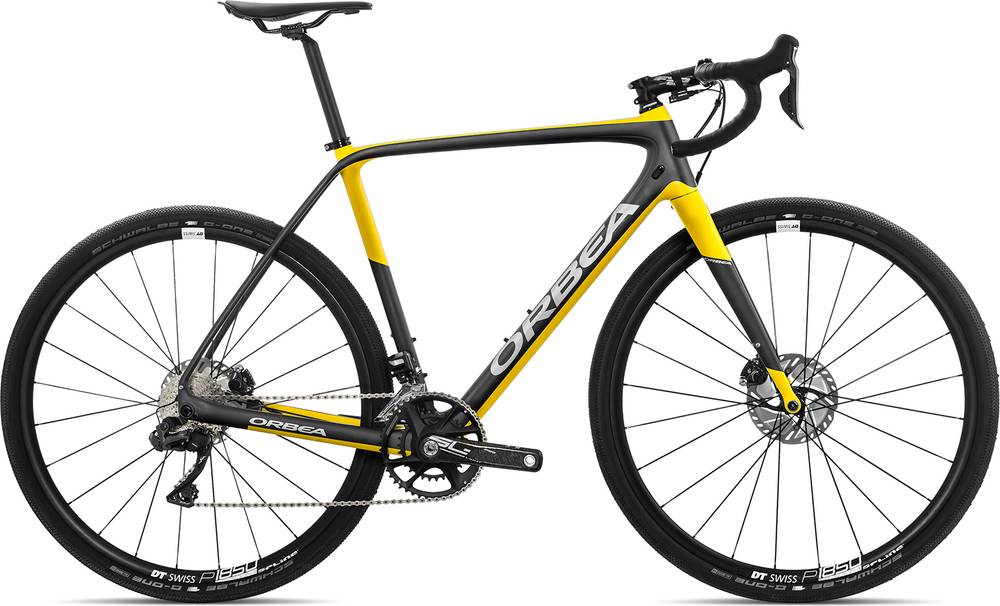

Model Overview
TERRA M20i-D is an Orbea Terra model. Orbea launched 68 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Orbea TERRA H40-D 2019 is the most affordable bike of this model and has a price of 1799$. On the other hand, Orbea TERRA M10-D 2019, is the most expensive and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 4799$. Comparing the average cost of a Gravel bike to this one, you will see that TERRA M20i-D price is 94.92% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
TERRA M20i-D components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Orbea TERRA M20i-D 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea TERRA M20i-D has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orbea TERRA M20i-D bike has 5 sizes, in the range of 153 cm – 195 cm (5.02 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
