Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
153cm - 167cm
SM
164cm - 173cm
MD
178cm - 184cm
LG
189cm - 192cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30mm, powermeter compatible, Thru Axle 12mm x 142mm rear, internal cable routing, EC/DC compatible, 27,2mm seat tube, MMS system
Suspension Fork
Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m MMS system
Drivetrain
Rear Derailleur
SRAM Rival 1 X-Horizon
Shift Levers
SRAM Rival
Cassette
SRAM Rival PG-1130 11-36t 11-Speed
Crank
SRAM Rival 1 40t
Bottom Bracket
PF30, press-fit
Chain
Fsa Team Issue
Pedals
N/A
Wheels
Rear Hub
Orbea Road 12x142mm
Rims
FULCRUM Racing 600 DB
Tires
Kenda Flintridge K1152 700x40 DTC 60TPI
Brakes
Brakes
SRAM Rival Hydraulic
Cockpit
Stem
Orbea OC-II
Handlebar
FSA Gossamer Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Selle Italia X3 Flow
Seatpost
Orbea OC-III Carbon 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 285 mm | 285 mm | 288 mm |
| Front Center | 597 mm | 610 mm | 622 mm | 639 mm | 656 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 69 mm | 69 mm | 68 mm | 68 mm |
| Stack | 537 mm | 552 mm | 567 mm | 592 mm | 617 mm |
| Reach | 362 mm | 370 mm | 377 mm | 384 mm | 392 mm |
| Top Tube Length | 523 mm | 535 mm | 547 mm | 562 mm | 577 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 554 mm | 590 mm | 630 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 122 mm | 138 mm | 156 mm | 182 mm | 212 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1009 mm | 1022 mm | 1035 mm | 1052 mm | 1070 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm |
| Standover Height | 756 mm | 788 mm | 820 mm | 850 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 164 cm | 178 cm | 189 cm | 185 cm |
| Rider Max Height | 167 cm | 173 cm | 184 cm | 192 cm | 195 cm |

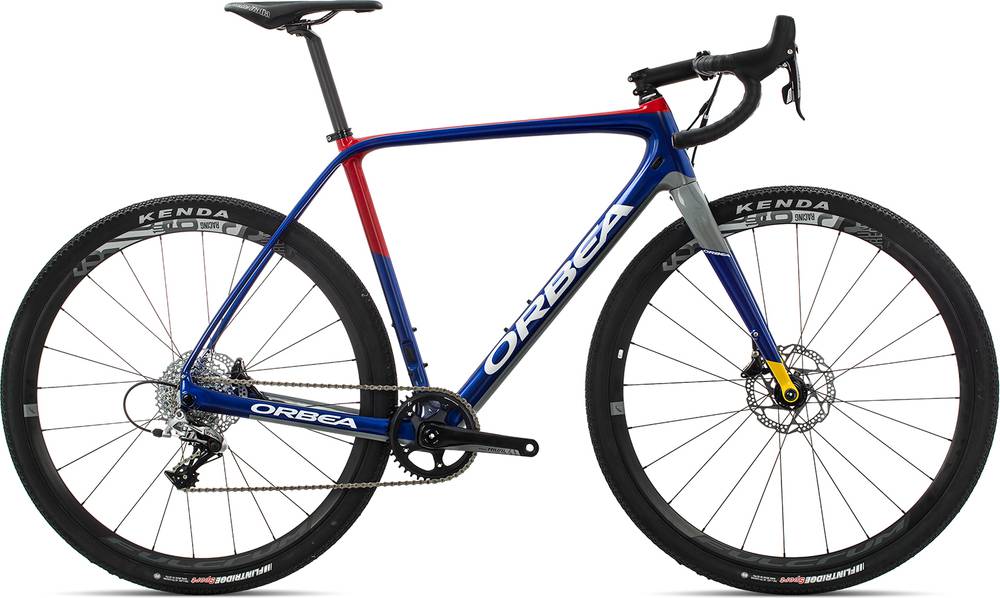

Model Overview
TERRA M31-D belongs to the Orbea Terra model. There are 68 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Orbea TERRA H40-D 2019 is the cheapest bike model and costs 1799$. Orbea TERRA M10-D 2019 is the most expensive one and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 2999$. Comparing the average cost of a Gravel bike to this one, you will see that TERRA M31-D price is 21.81% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on TERRA M31-D are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea TERRA M31-D is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 153 cm – 195 cm (5.02 ft – 6.4 ft). In short, you can easily find one that suits you.
