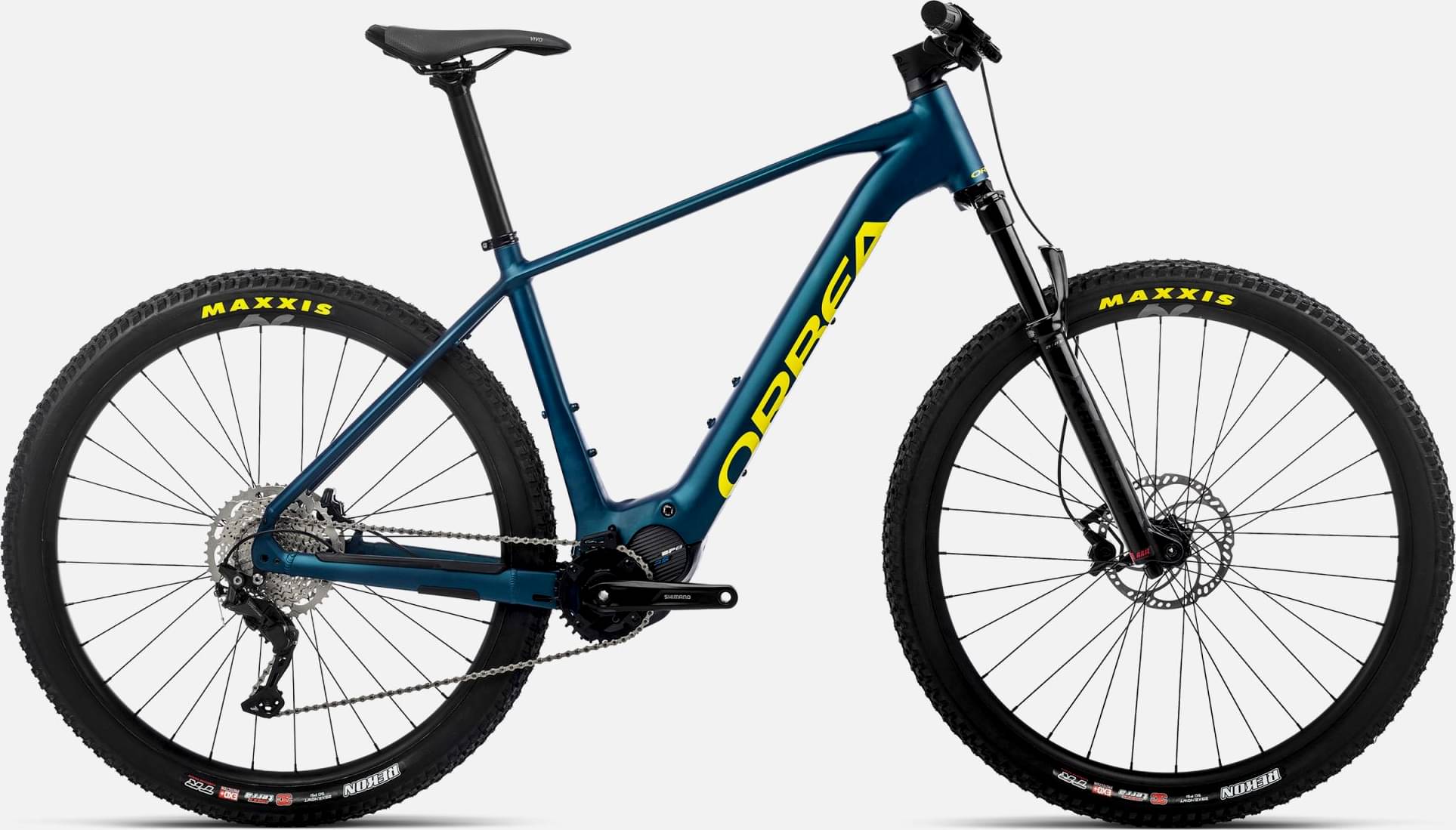

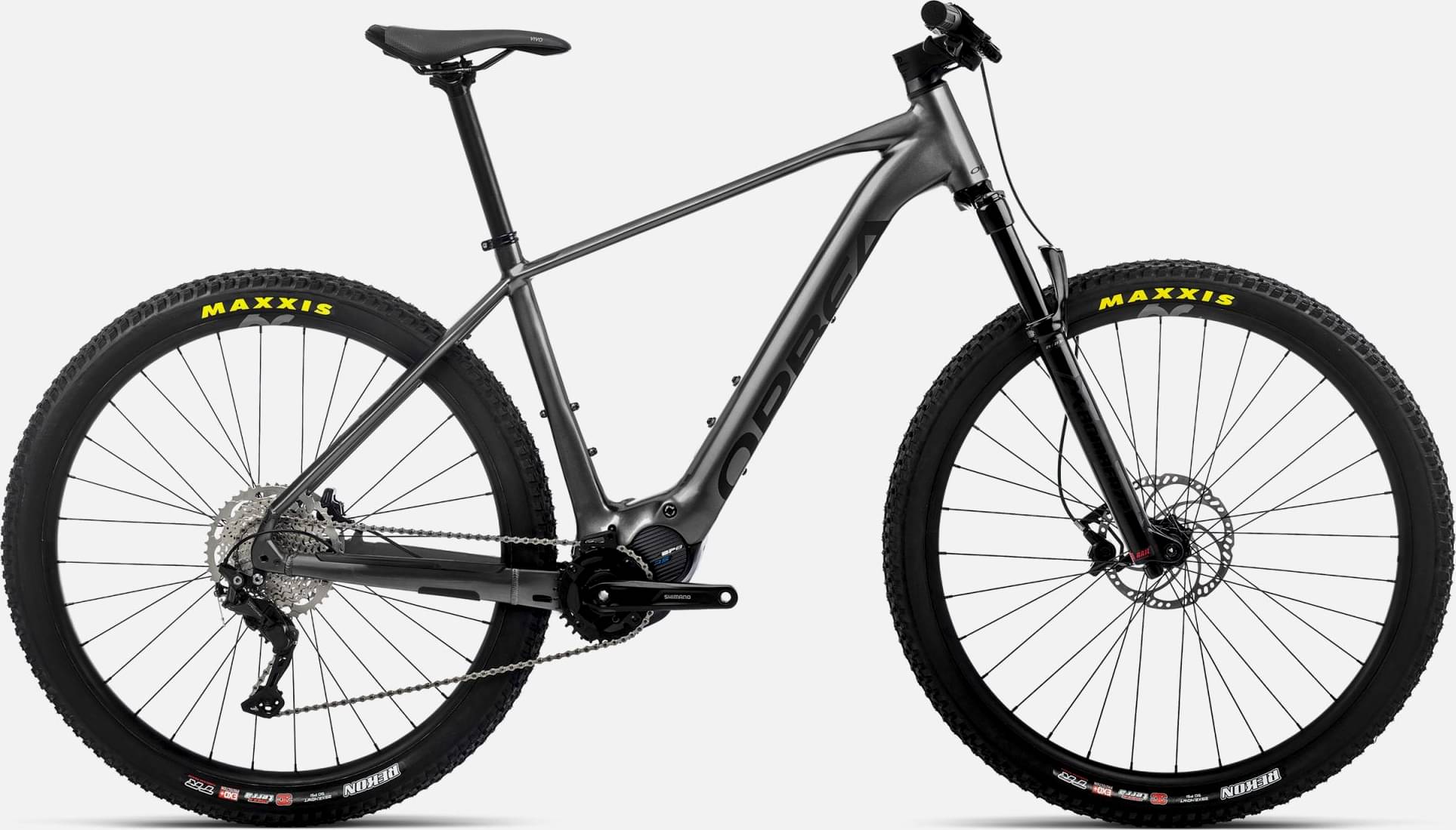

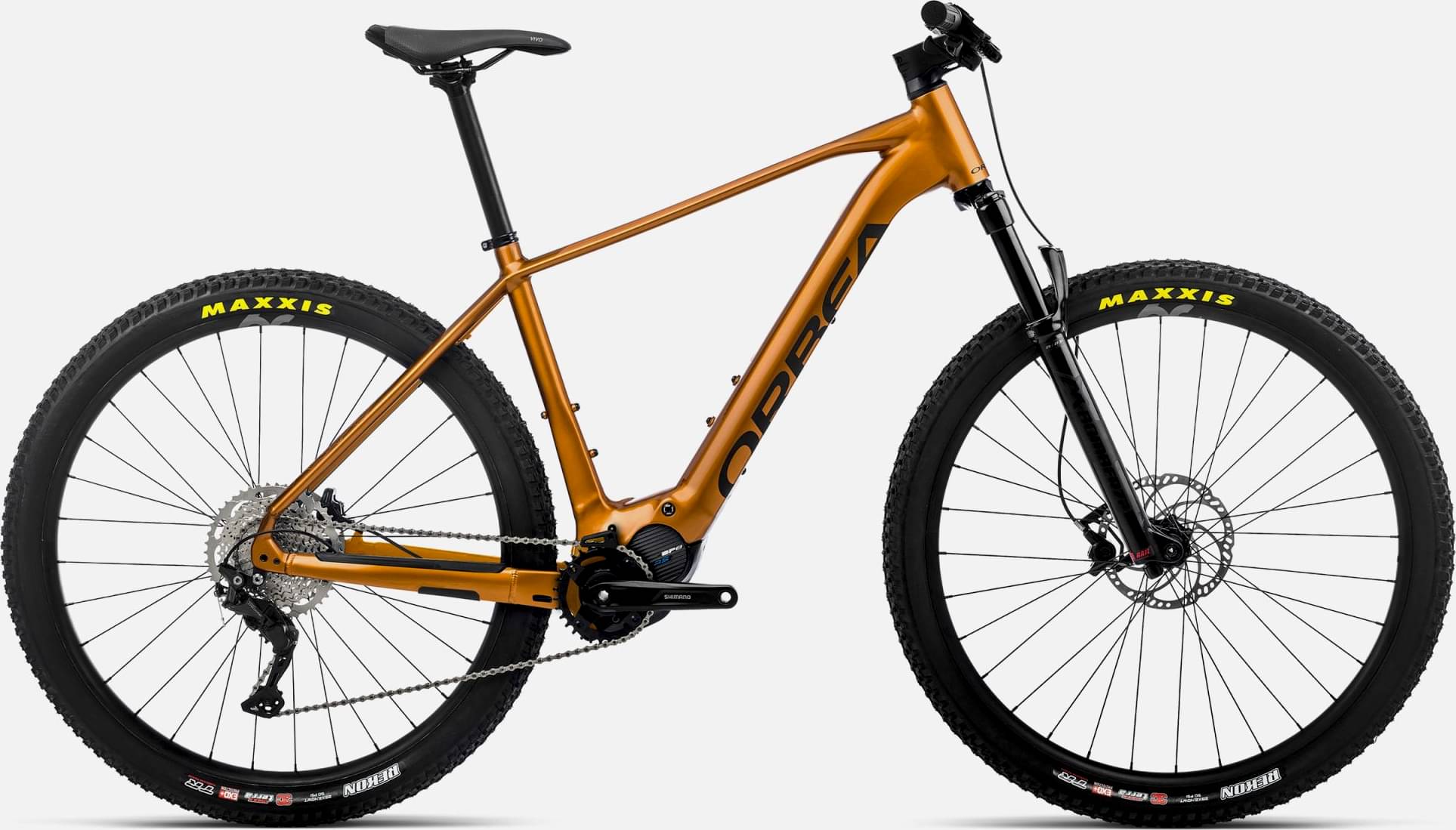

Orbea URRUN 30 20mph 2023
2023 E-bike
Estimate price |
4,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 252Wh Range Extender) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
Alloy EP8 32t
Bottom Bracket
STEPS, press-fit
Chain
KMC e10 Turbo Silver
Chain Guide
Orbea Chainguide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Magura MT30 Hydraulic Disc Easy Route Connection
Cockpit
Stem
Alloy forged, 35mm interface, -6º, ICR
Handlebar
Alloy, 35mm, Rise 20mm, 780mm
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo 145x269mm
Seatpost
Alloy, 31.6mm, Setback 0
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea Internal 540Wh (Optional 252Wh Range Extender)
Remote
EN600-L
Charger
Orbea Smart Charger (42V-4A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.551 mm | 1.47 mm | 1.448 mm |
| Bottom Bracket Height | 322 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 703 mm | 711 mm | 734 mm | 781 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 117 mm | 138 mm | 120 mm |
| Stack | 631 mm | 628 mm | 647 mm | 666 mm |
| Reach | 395 mm | 405 mm | 440 mm | 460 mm |
| Top Tube Length | 565 mm | 579 mm | 608 mm | 645 mm |
| Seat Tube Angle | 74.8 ° | 74.6 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 453 mm | 483 mm | 533 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm | 132 mm | 153 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1143 mm | 1150 mm | 1173 mm | 1220 mm |
| Bottom Bracket Drop | 54 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 798 mm | 826 mm | 848 mm | 882 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model
URRUN 30 20mph is part of the Orbea E Urrun model. Orbea launched 10 e-bikes of this model so far. Take a sneak peek at all Orbea E Urrun e-bikes models from 2023, by clicking here.
Model range prices
Orbea URRUN 40 20mph 2023 is the cheapest e-bike model and costs 3399$. Orbea URRUN 10 2023 is the most expensive one and costs 5716$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 4299$. Doing a quick comparison, we notice that URRUN 30 20mph price is 27.76% higher than the average cost of a Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
URRUN 30 20mph components
Fork
The URRUN 30 20mph comes factory-installed with the Marzocchi Bomber Z2 fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the URRUN 30 20mph model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The URRUN 30 20mph has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
URRUN 30 20mph comes in 4 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
