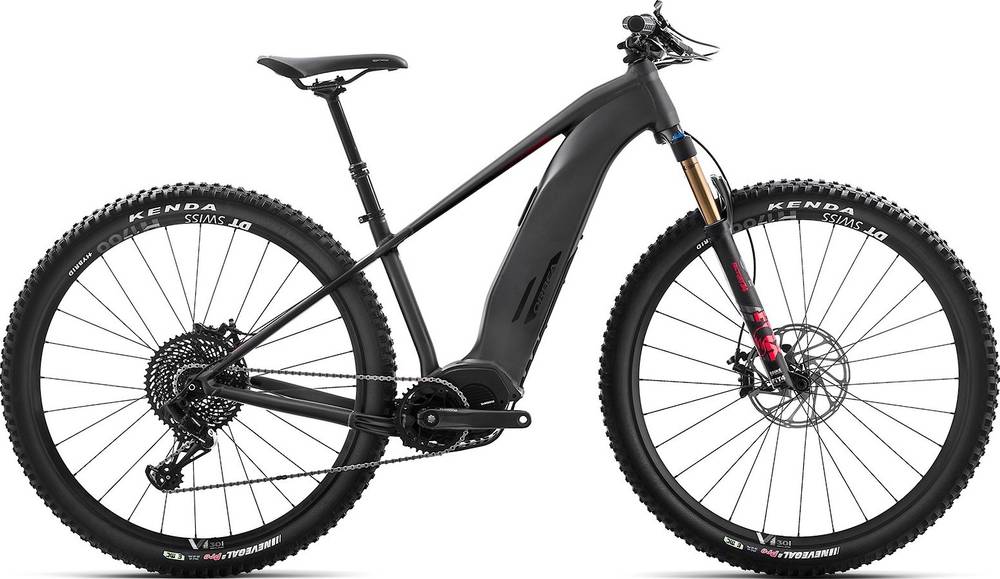

Orbea Wild HT 10 USA 2018
2018 E-bike
Estimate price |
4,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset EX1, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 Litium-ion -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Factory, FIT4 damper, Kashima, Boost, 3-position adjust
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM EX1
Front Derailleur
N/A
Shift Levers
SRAM EX1, 8-speed
Cassette
SRAM EX1 XG-899, 11-48 tooth, 8-speed
Crank
Shimano E80, 170mm length
Chain
SRAM EX1
Chain Guide
N/A
Pedals
VP-536, black
Wheels
Front Hub
27.5+: DT Swiss H-1700 Spline 35c TLR, Boost front and rear, 29”: DT Swiss H-1700 Spline 30c TLR, Boost front and rear
Rear Hub
27.5+: DT Swiss H-1700 Spline 35c TLR, Boost front and rear, 29”: DT Swiss H-1700 Spline 30c TLR, Boost front and rear
Rims
27.5+: DT Swiss H-1700 Spline 35c TLR, 29”: DT Swiss H-1700 Spline 30c TLR
Spokes
DT Swiss
Tires
27.5+: Kenda 1184A Havok, 2.8" 120TPI/TLR, eBike specific, 29”: Kenda 1184A Havok, 2.4" 60TPI/TLR, eBike specific
Brakes
Brakes
Avid Guide RE
Brake Levers
Avid Guide RE
Cockpit
Stem
Race Face Ride, 35mm clamp
Handlebar
Race Face Ride 35, 20mm rise, 760mm width
Headset
FSA Integrated
Seat
Saddle
fi'zi:k Gobi M7
Seatpost
Race Face Aeffect Dropper, 125mm drop
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 Litium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.65 mm | 1.58 mm | 1.53 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 675 mm | 696 mm | 727 mm | 757 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 95 mm | 95 mm | 95 mm | 97 mm |
| Stack | 641 mm | 654 mm | 668 mm | 682 mm |
| Reach | 382 mm | 397 mm | 422 mm | 447 mm |
| Top Tube Length | 582 mm | 602 mm | 631 mm | 660 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 390 mm | 415 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1120 mm | 1141 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Wild HT 10 USA completes the Orbea E Wild model. 77 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Orbea Wild 30 USA 2018 is the most affordable e-bike of this model and has a price of 3799$. On the other hand, Orbea Wild FS 10 USA 2018, is the most expensive and costs 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2018 for 4699$. If we compare this with the average Trail e-bike cost we notice that the price is 39.64% higher.
Wild HT 10 USA components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Wild HT 10 USA are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Wild HT 10 USA comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orbea Wild HT 10 USA comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
