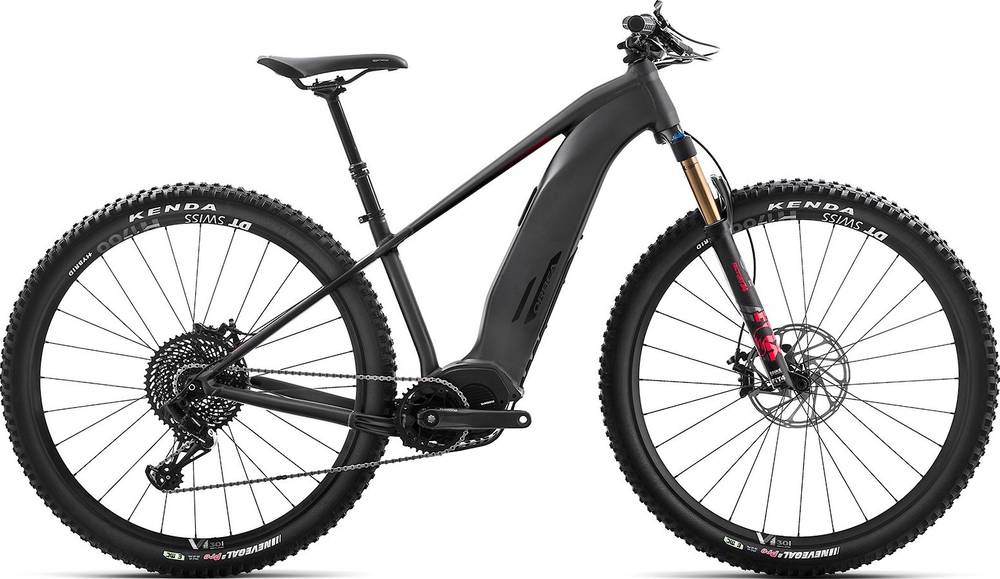

Orbea Wild HT 20 USA 2018
2018 E-bike
Estimate price |
4,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset SLX, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 Litium-ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance, 3-position, Boost
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7000 GS Shadow Plus, direct mount
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000, I-Spec II
Cassette
Sun Race, 11-46 tooth, 11-speed
Crank
Shimano E80, 170mm length
Chain
KMC X11eT
Chain Guide
N/A
Pedals
VP-536, black
Wheels
Front Hub
27.5+: SUNringlé Duroc 40 TL, Boost front and rear, 6 bolt, 29”: SUNringlé Duroc 35 TL, Boost front and rear, 6 bolt
Rear Hub
27.5+: SUNringlé Duroc 40 TL, Boost front and rear, 6 bolt, 29”: SUNringlé Duroc 35 TL, Boost front and rear, 6 bolt
Rims
27.5+: SUNringlé Duroc 40 TL, 29”: SUNringlé Duroc 35 TL
Spokes
SUNringlé
Tires
27.5+: Kenda 1184A Havok, 2.8" 120TPI/TLR, eBike specific, 29”: Kenda 1184A Havok, 2.4" 60TPI/TLR, eBike specific
Brakes
Brakes
Shimano XT M8000 with IceTech rotors
Brake Levers
Shimano XT M8000
Cockpit
Stem
Race Face Ride 35mm interface
Handlebar
Race Face Ride 35, 20mm rise, 760mm width
Headset
FSA Integrated
Seat
Saddle
Selle Royal 2077 DRN
Seatpost
Orbea Digit, 400mm length
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 Litium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.65 mm | 1.58 mm | 1.53 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 675 mm | 696 mm | 727 mm | 757 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 95 mm | 95 mm | 95 mm | 97 mm |
| Stack | 641 mm | 654 mm | 668 mm | 682 mm |
| Reach | 382 mm | 397 mm | 422 mm | 447 mm |
| Top Tube Length | 582 mm | 602 mm | 631 mm | 660 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 390 mm | 415 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1120 mm | 1141 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Wild HT 20 USA is part of the Orbea E Wild model. Orbea released 77 e-bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea Wild 30 USA 2018 has a starting price of 3799$. Orbea Wild FS 10 USA 2018 on the other hand is the most expensive at 6999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Orbea Wild HT 20 USA price was 4699$. If we compare this with the average Trail e-bike cost we notice that the price is 39.64% higher.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Wild HT 20 USA are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
