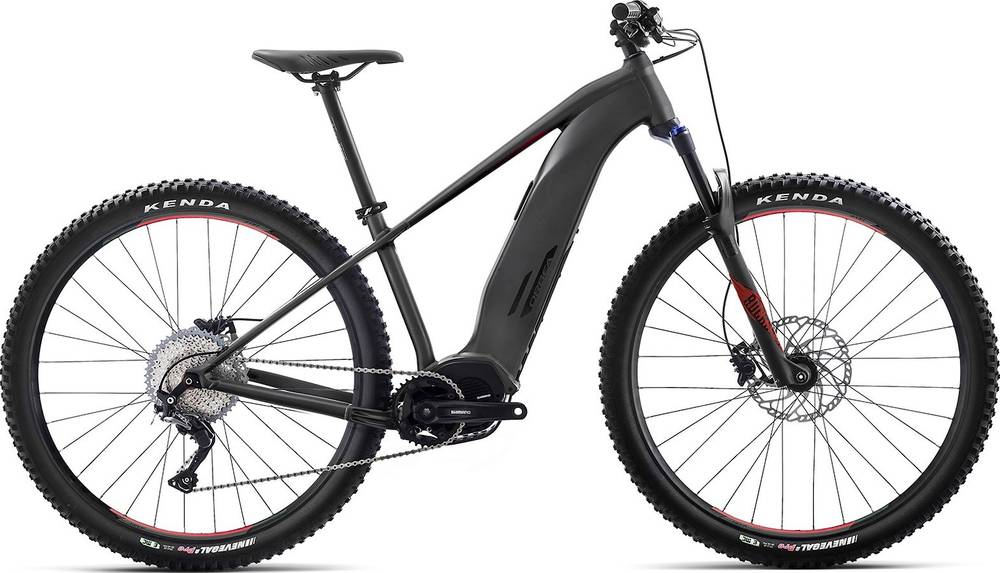

Orbea Wild HT 30 USA 2018
2018 E-bike
Estimate price |
3,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Gold RL
-
Groupset SLX, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 Litium-ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy Gold RL, Boost
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7000 GS Shadow Plus, direct mount
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000 I-Spec II
Cassette
Sun Race, 11-46 tooth, 11-speed
Crank
Shimano E80, 170mm length
Chain
KMC X11eT
Chain Guide
N/A
Pedals
VP-536, black
Wheels
Front Hub
27.5+: Orbea Tryp 35c Disc, Boost front and rear, 29”: Orbea Tryp 30c Disc, Boost front and rear
Rear Hub
27.5+: Orbea Tryp 35c Disc, Boost front and rear, 29”: Orbea Tryp 30c Disc, Boost front and rear
Rims
27.5+: Orbea Tryp 35c Disc, tubeless ready, 29”: Orbea Tryp 30c Disc, tubeless ready
Spokes
27.5+: Orbea Tryp 35c Disc, 29”: Orbea Tryp 30c Disc
Tires
27.5+: Kenda 1184A Havok, 2.8" 120TPI/TLR, eBike specific, 29”: Kenda 1184A Havok, 2.4" 60TPI/TLR, eBike specific
Brakes
Brakes
Shimano MT500
Brake Levers
Shimano MT500
Cockpit
Stem
Orbea, 35mm clamp
Handlebar
Orbea Riser, 35mm diameter, 780mm width
Headset
FSA Integrated
Seat
Saddle
Selle Royal 2077 DRN
Seatpost
Orbea Digit, 400mm length
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 Litium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.65 mm | 1.58 mm | 1.53 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 675 mm | 696 mm | 727 mm | 757 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 95 mm | 95 mm | 95 mm | 97 mm |
| Stack | 641 mm | 654 mm | 668 mm | 682 mm |
| Reach | 382 mm | 397 mm | 422 mm | 447 mm |
| Top Tube Length | 582 mm | 602 mm | 631 mm | 660 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 390 mm | 415 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1120 mm | 1141 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Wild HT 30 USA belongs to the Orbea E Wild model. Orbea released 77 e-bikes variations of this model so far. Take a sneak peek at all Orbea E Wild e-bikes models from 2018, by clicking here.
Model range prices
Orbea Wild 30 USA 2018 is the cheapest e-bike model and costs 3799$. Orbea Wild FS 10 USA 2018 is the most expensive one and costs 6999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2018 and its price was 3999$. If we compare this with the average Trail e-bike cost we notice that the price is 18.84% more expensive.
Overview of components
Fork
Orbea Wild HT 30 USA 2018 e-bike is equipped with the RockShox Judy Gold RL fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Wild HT 30 USA are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Orbea Wild HT 30 USA e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
