Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 750Wh Horizontal BBP3770 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 175cm
MD
160cm - 185cm
LG
170cm - 195cm
XL
180cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
RockShox 35 Silver TK Q15x110 Solo Air 160mm
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 34T Boost
Chain
Shimano M6100
Chain Guide
e*thirteen Plus Bosch CX Gen4 32-38t
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
SRAM DB8 Black Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Selle Royal Vivo 145x269mm
Seatpost
OC Mountain Control MC20, 31.6mm, Dropper
Motor & Battery
Motor
BOSCH Performance Line CX BDU3741
Battery
BOSCH Powertube 750Wh Horizontal BBP3770
Remote
BOSCH Mini Remote BRC3300
Charger
Bosch Charger 4A (230V) BPC3400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 776 mm | 800 mm | 830 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 433 mm | 453 mm | 478 mm | 503 mm |
| Top Tube Length | 571 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 415 mm | 415 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1245 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 698 mm | 698 mm | 698 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm | 205 cm |

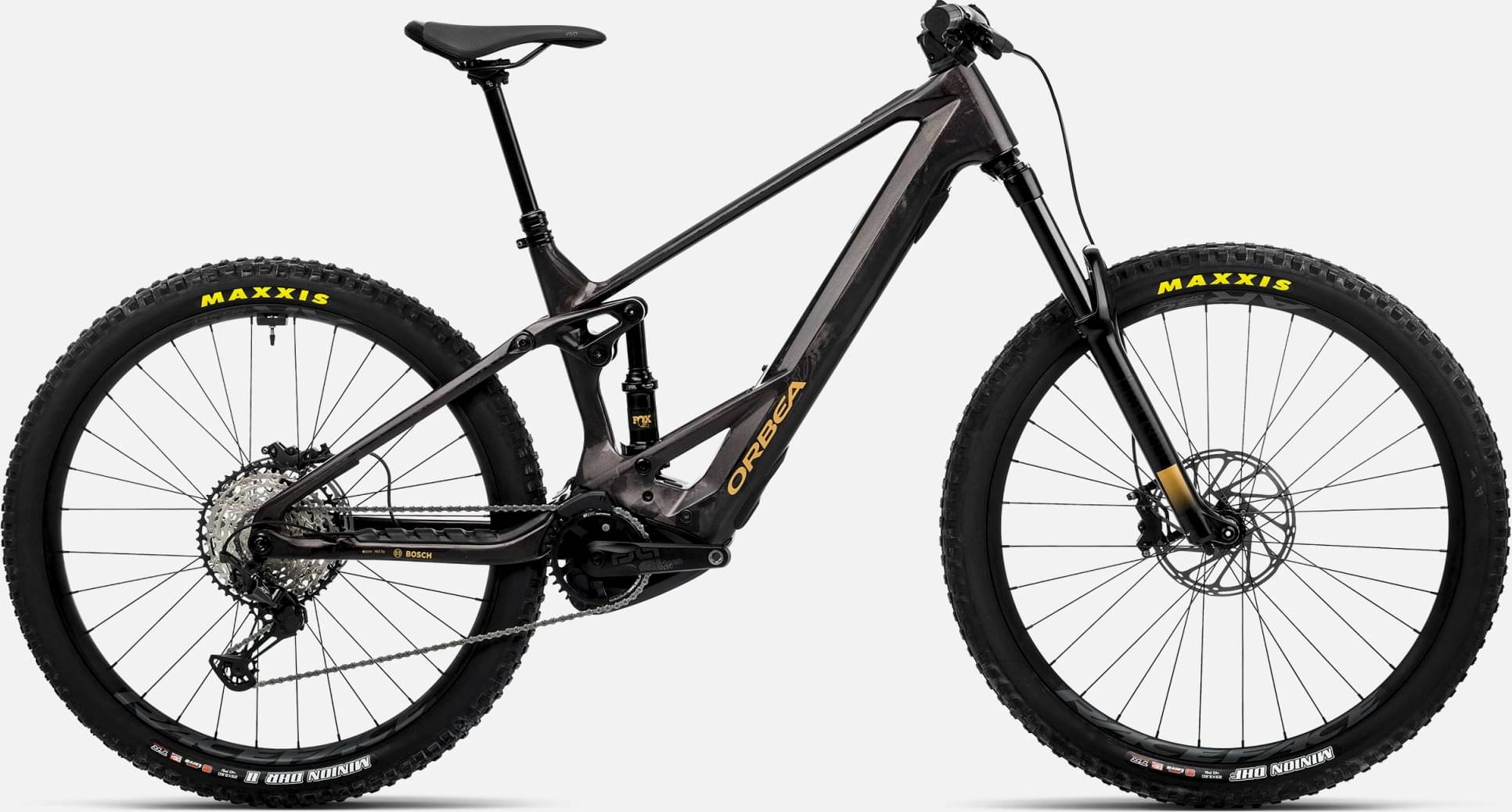

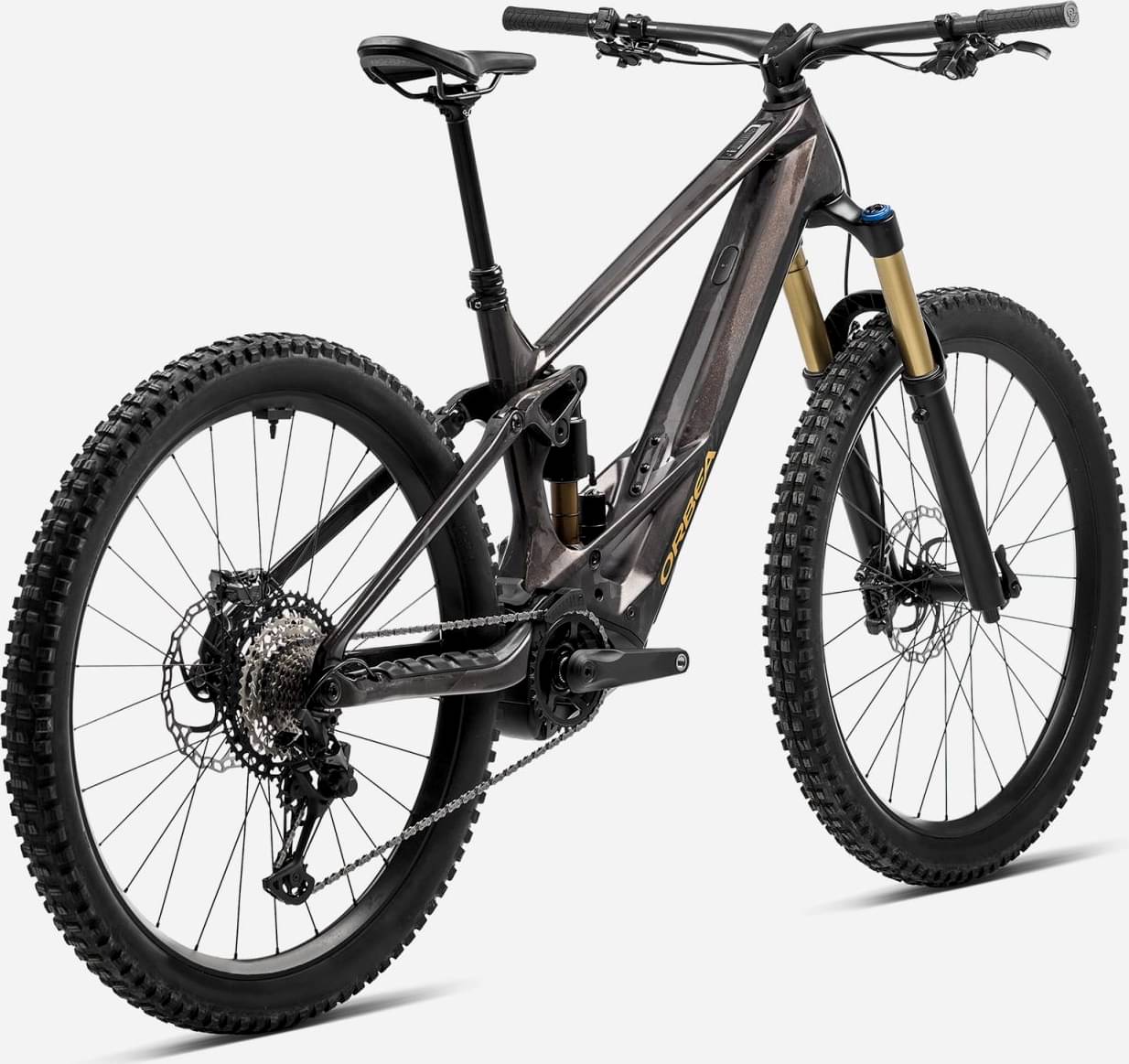

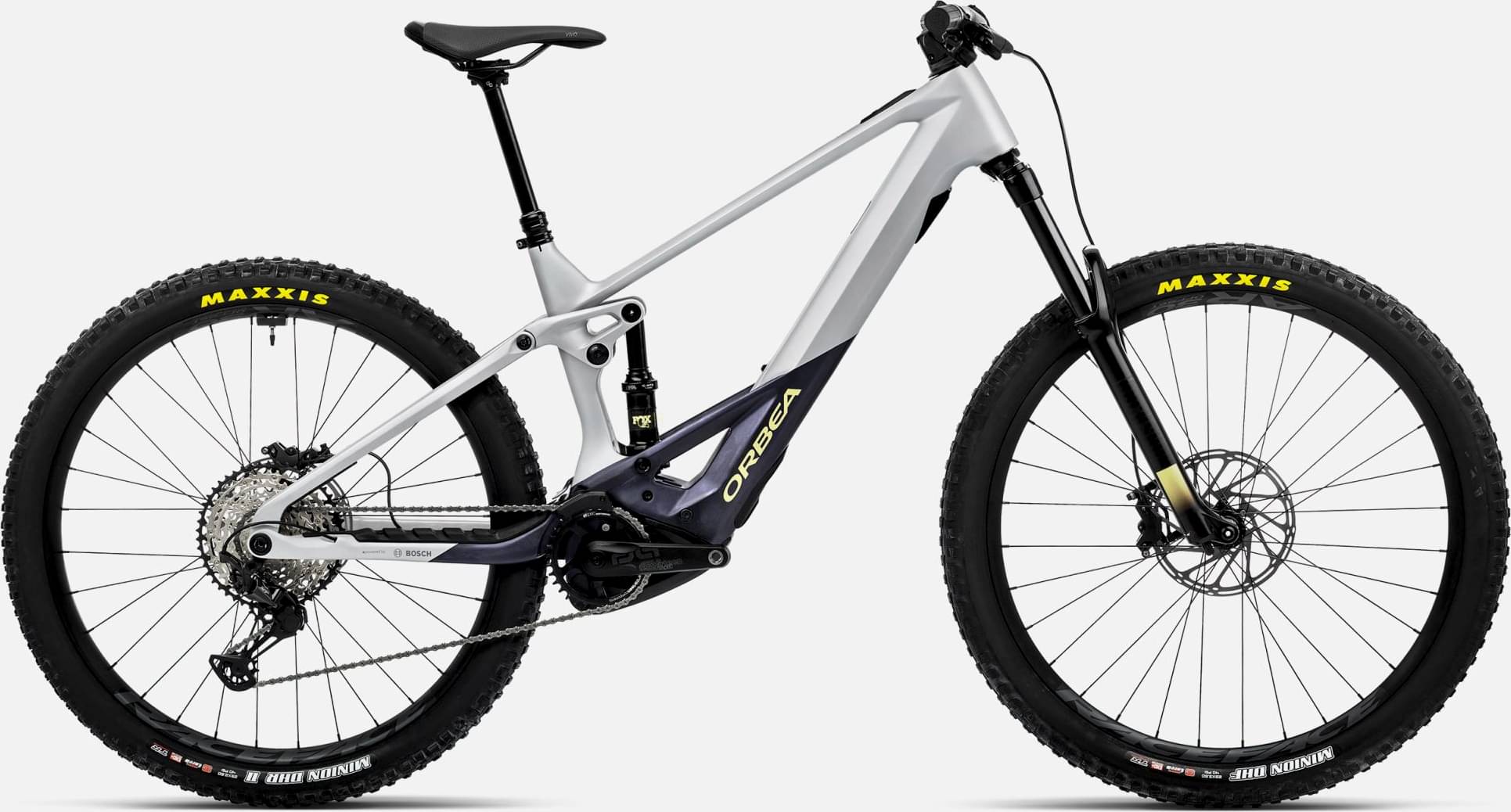

Model Overview
WILD M20 completes the Orbea E Wild model. There are 77 e-bikes that carry this model name. You can easily view all of the Orbea E Wild e-bikes models from 2023, here.
Model range prices
Orbea WILD H30 20mph 2023 is the most affordable e-bike of this model and has a price of 5699$. On the other hand, Orbea WILD M-LTD 2023, is the most expensive and costs 13800$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Orbea released this model in 2023, its price was 8514$. Doing a quick comparison, we notice that WILD M20 price is 77.93% more expensive than the average cost of an Enduro e-bike.
WILD M20 components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance Trunnion 3-Position, with a travel distance of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the WILD M20 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea WILD M20 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orbea model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
