Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
Tiagra 4720 Disc
Cassette
HG-50 11-34
Crank
Tiagra Compact 50/34
Pedals
Without pedals
Wheels
Rims
Rapid Red 900
Tires
G-One Speed Perf 35 Race Guard
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
X1 White
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.58 mm | 1.62 mm | 1.64 mm |
| Front Center | 589 mm | 599 mm | 610 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 66 mm | 63 mm | 60 mm |
| Stack | 562 mm | 586 mm | 611 mm | 631 mm |
| Reach | 363 mm | 370 mm | 377 mm | 385 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1005 mm | 1016 mm | 1027 mm | 1037 mm |
| Bottom Bracket Drop | 76 mm | 75 mm | 74 mm | 73 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |

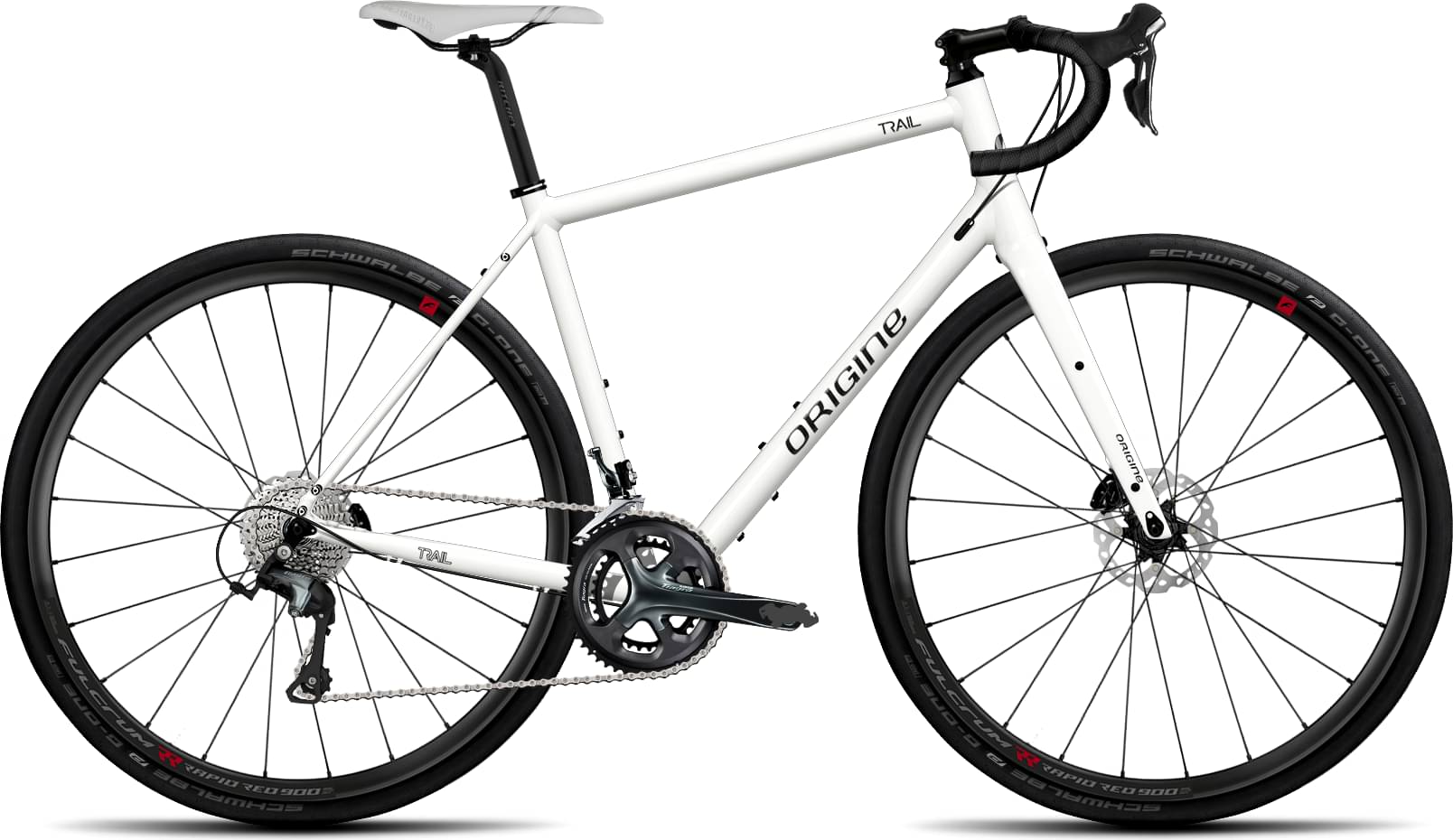

Model Overview
Trail T26 belongs to the Origine Trail model. Origine released 16 bikes variations of this model so far. Take a sneak peek at all Origine Trail bikes models from 2023, by clicking here.
Model range prices
Origine Trail F26 2023 is the most economical model, with a starting price of 1695$. Origine Trail T56 2023 on the other hand costs 2706$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 1800$. Doing a quick comparison, we notice that Trail T26 price is 36.78% smaller than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Trail T26 2023 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Origine Trail T26 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 197 cm (5.18 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
