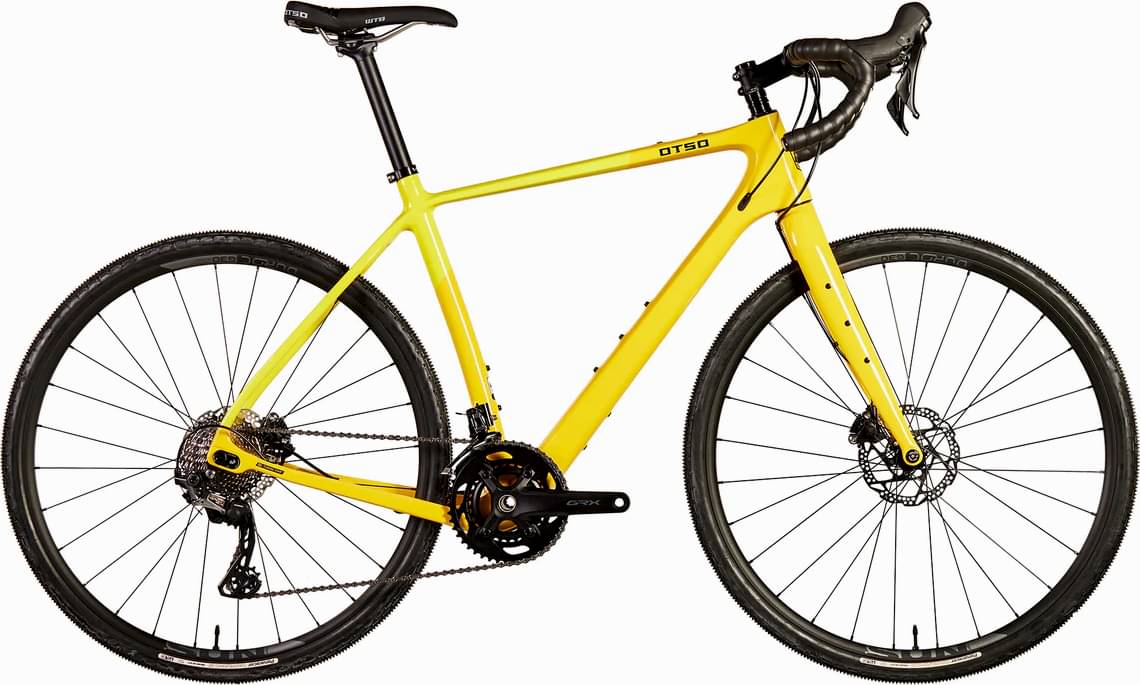

Otso Waheela C 1×12 Shimano GRX 800 2023
2023 Road
Estimate price |
4,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Shimano -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon with Tuning Chip® dropout system
Suspension Fork
None
Drivetrain
Cassette
NEW 1x12 Shimano GRX 800 (10-51T cassette)
Crank
40T Round - Stock Shimano
Bottom Bracket
English thread BSA, Ø68mm, Custom Options
Wheels
Rims
SUNringle G30 Expert 700c 26mm
Tires
Schwalbe G-One Allround 700x45 Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
Lithic Corundum 40cm
Headset
Wolf Tooth Performance Headset - Black
Seat
Saddle
WTB Volt Medium, 142mm width
Seatpost
Aluminum 30.9 350mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 617 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 548 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1035 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 744 mm | 772 mm | 805 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 198 cm |
About this model
Waheela C 1×12 Shimano GRX 800 is an Otso Waheela model. Otso launched 23 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Otso Waheela C – GRX 11-Speed Sale 1×11 Shimano GRX 600 2023 is the most economical model, with a starting price of 2962$. Otso Waheela C 1×13 Campagnolo Ekar 2023 on the other hand costs 6000$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4600$. If we compare this with the average Gravel bike cost we notice that the price is 86.84% more expensive.
Waheela C 1×12 Shimano GRX 800 components
Fork material
Waheela C 1×12 Shimano GRX 800 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Waheela C 1×12 Shimano GRX 800 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Otso Waheela C 1×12 Shimano GRX 800 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Otso Waheela C 1×12 Shimano GRX 800 bike has 4 sizes, in the range of 157 cm – 198 cm (5.15 ft – 6.5 ft). In short, you can easily find one that suits you.
