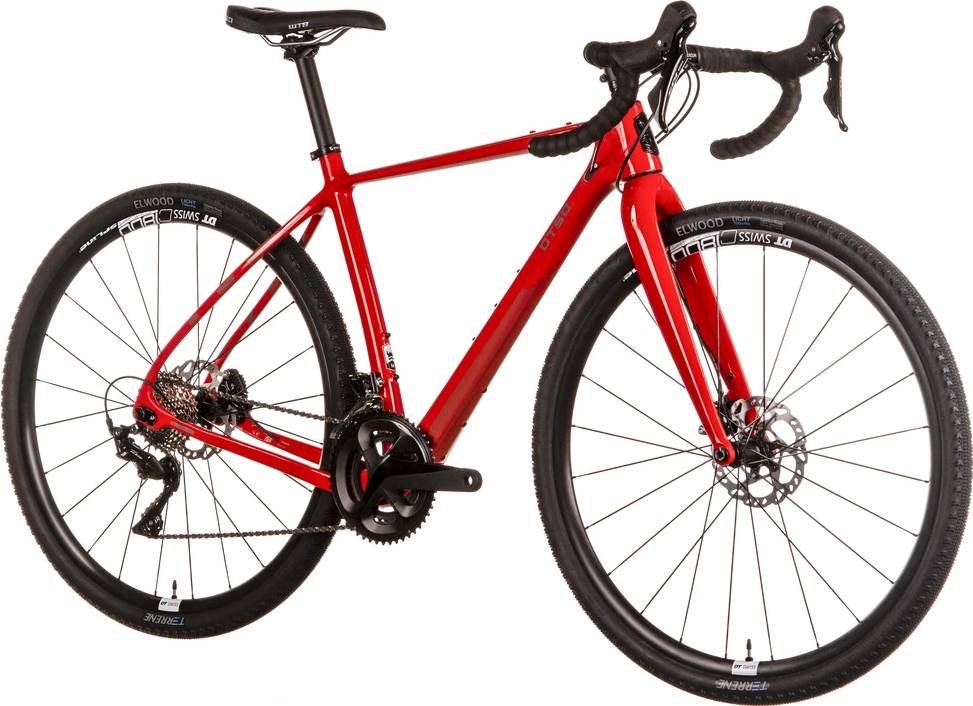

Otso Waheela C 2020
2020 Road
Estimate price |
3,600$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon with Tuning Chip® dropout system
Suspension Fork
Lithic full carbon fork, 15mm thru-axle
Drivetrain
Rear Derailleur
Shimano 105 GS, 11 speed
Front Derailleur
Shimano 105, braze-on mount
Shift Levers
Shimano 105 mechanical, 11 speed
Cassette
Shimano 105, 11-32t, 11 speed
Crank
Shimano RS510, 50/34
Bottom Bracket
Shimano english thread BSA, Ø68mm
Chain
Shimano HG-11X
Wheels
Rims
DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear hub spacing
Tires
Terrene Elwood 700x40 Light
Brakes
Brakes
Shimano 105 R7020 Hydraulic
Disk Rotors
flat mount (160mm)
Cockpit
Stem
6061 aluminum
Handlebar
Lithic Corundum aluminum compact drop with 16° flare
Grips
Cork handlebar tape, black
Headset
ZS44/28.6 upper, ZS56 lower
Seat
Saddle
WTB, Custom for Otso
Seatpost
6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 597 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 548 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1015 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 744 mm | 772 mm | 805 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Waheela C completes the Otso Waheela model. 23 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Otso Waheela S 2020 is the most affordable bike of this model and has a price of 2250$. On the other hand, Otso Waheela C 2020, is the most expensive and costs 3600$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 3600$. If we compare this with the average Gravel bike cost we notice that the price is 46.22% higher.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Otso Waheela C it’s weighing 9.3 kg (20.5 lbs). At this weight, is considerably heavier than average. In short, the average Gravel bike weight is 14.39% lower than this one.
Waheela C components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Waheela C model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Otso Waheela C is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Waheela C comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
