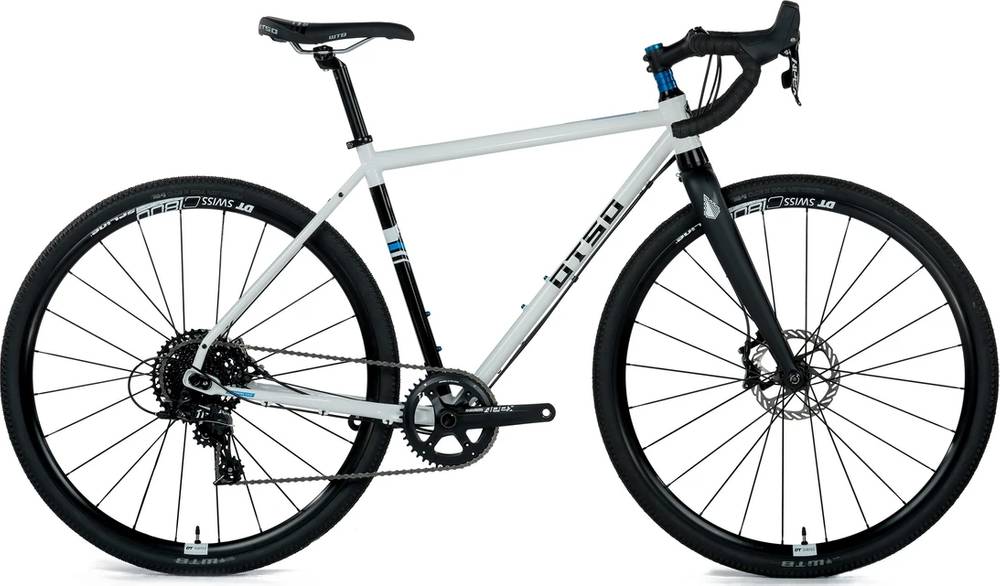

Otso Waheela S 2020
2020 Road
Estimate price |
2,250$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 with Tuning Chip™ dropout system
Suspension Fork
Lithic full carbon fork, 15mm thru-axle
Drivetrain
Rear Derailleur
Shimano 105 GS, 11 speed
Front Derailleur
Shimano 105, 28.6mm clamp
Shift Levers
Shimano 105 mechanical, 11 speed
Cassette
Shimano 105, 11-32t, 11 speed
Crank
Shimano 105, 50/34
Bottom Bracket
Shimano english thread BSA, Ø68mm
Chain
Shimano HG-11X
Wheels
Rims
DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear hub spacing
Tires
Terrene Elwood 700x40 Light
Brakes
Brakes
Tektro MD-C550, flat mount
Disk Rotors
flat mount (160mm)
Cockpit
Stem
6061 aluminum
Handlebar
Lithic Corundum aluminum compact drop with 16° flare
Grips
Cork handlebar tape, black
Headset
ZS44/28.6 upper, EC44/40.0 lower (optional 20mm extended lower cup included)
Seat
Saddle
WTB, Custom for Otso
Seatpost
6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 597 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 547 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1015 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 742 mm | 771 mm | 803 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Waheela S is part of the Otso Waheela model. Otso launched 23 bikes of this model so far. You can easily view all of the Otso Waheela bikes models from 2020, here.
Model range prices
Otso Waheela S 2020 is the cheapest bike model and costs 2250$. Otso Waheela C 2020 is the most expensive one and costs 3600$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 2250$. If we compare this with the average Gravel bike cost we notice that the price is 9.42% smaller.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 10.3 kg (22.71 lbs), the Waheela S model is much heavier than average. In other words, this model is 26.69% heavier than the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Otso Waheela S 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Otso Waheela S has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Waheela S comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
