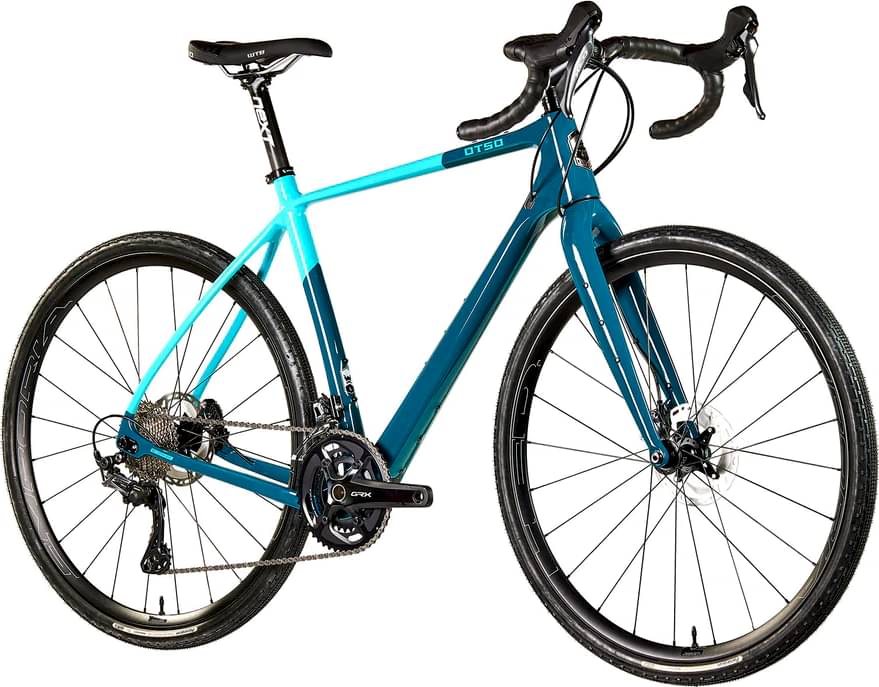

Otso Waheela C GRX 800 1x – 12-Speed 2023
2023 Road
Estimate price |
5,380$
Weight | 8.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon with Tuning Chip® dropout system
Suspension Fork
Lithic full carbon fork, 12mm thru-axle
Drivetrain
Rear Derailleur
Shimano GRX 822 1x, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano GRX 800 mechanical, 12-speed
Cassette
Shimano SLX M7100, 11-51T, 12-speed
Crank
Shimano GRX 800, 40T Chainring: 170mm S | 172.5mm M | 172.5mm L | 175mm XL
Bottom Bracket
Shimano english threaded BSA, Ø68mm
Chain
Shimano 12-speed
Wheels
Rims
HED Emporia GA Performance 700, 25mm inner width, 100x12 thru-axle front, 142x12 thru-axle rear
Tires
Schwalbe G-One Allround 700x45, black
Brakes
Brakes
Shimano RX820 Hydraulic
Cockpit
Stem
6061 aluminum: 60mm S | 70mm M | 80mm L | 90mm XL
Handlebar
FSA Carbon K-Wing AGX: 40cm S | 42cm M | 44cm L | 46cm XL
Headset
ZS44/28.6 upper, ZS56 lower
Seat
Saddle
WTB Volt 142mm
Seatpost
FSA SL-K Carbon 30.9 x 400mm, 0mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 617 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 548 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1035 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 744 mm | 772 mm | 805 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 198 cm |
About this model
Waheela C GRX 800 1x – 12-Speed is part of the Otso Waheela model. There are 23 bikes that carry this model name. Take a sneak peek at all Otso Waheela bikes models from 2023, by clicking here.
Model range prices
Otso Waheela C – GRX 11-Speed Sale 1×11 Shimano GRX 600 2023 is the cheapest bike model and costs 2962$. Otso Waheela C 1×13 Campagnolo Ekar 2023 is the most expensive one and costs 6000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Otso Waheela C GRX 800 1x – 12-Speed price was 5380$. In conclusion, this bike price is 118.52% more expensive than the price of the average Gravel bike.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 8.49 kg (18.72 lbs), the Waheela C GRX 800 1x – 12-Speed model is slightly heavier than average. In short, the average Gravel bike weight is 4.43% lower than this one.
Waheela C GRX 800 1x – 12-Speed components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Otso Waheela C GRX 800 1x – 12-Speed 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Waheela C GRX 800 1x – 12-Speed has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 198 cm (5.15 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
