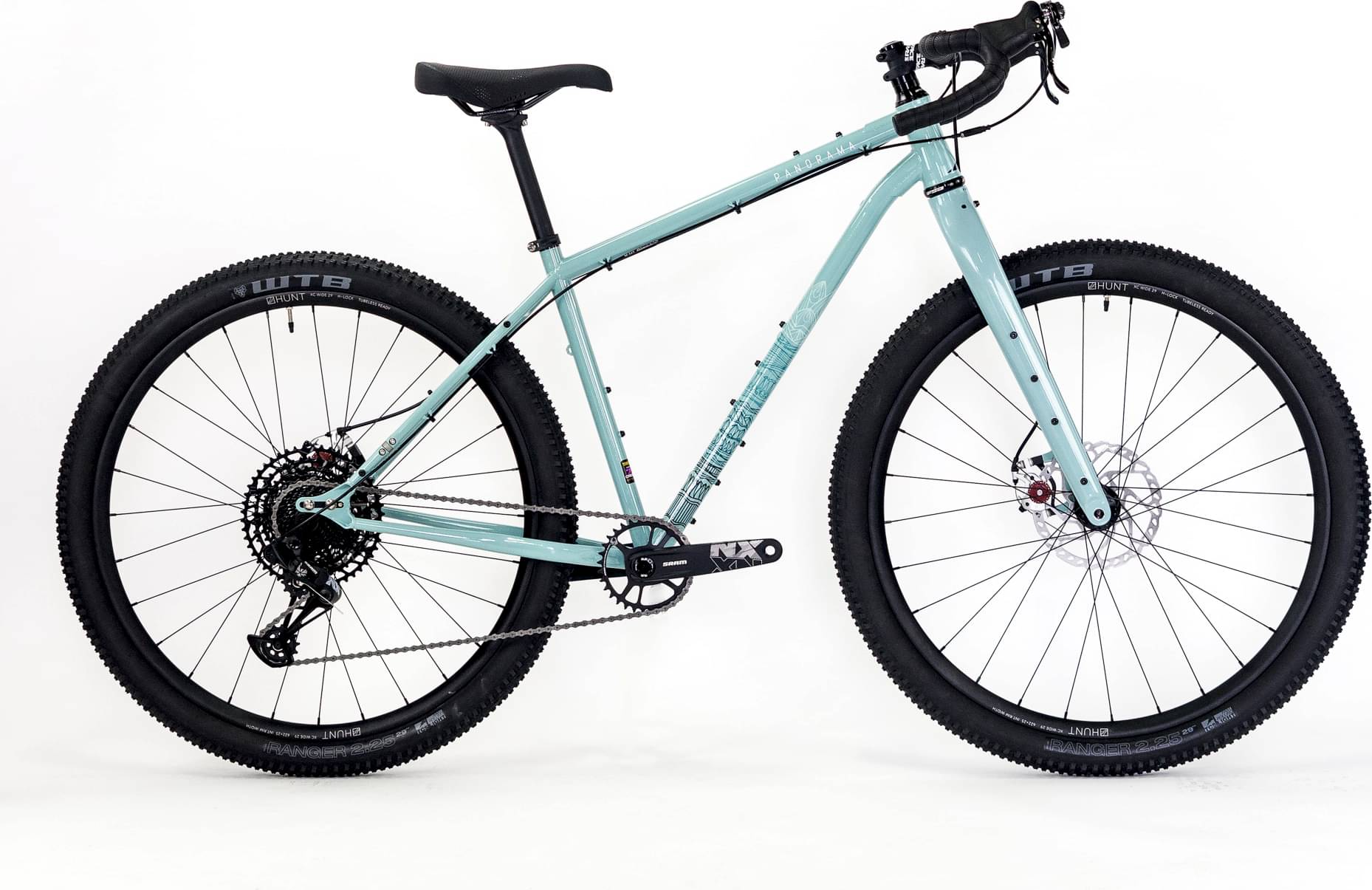

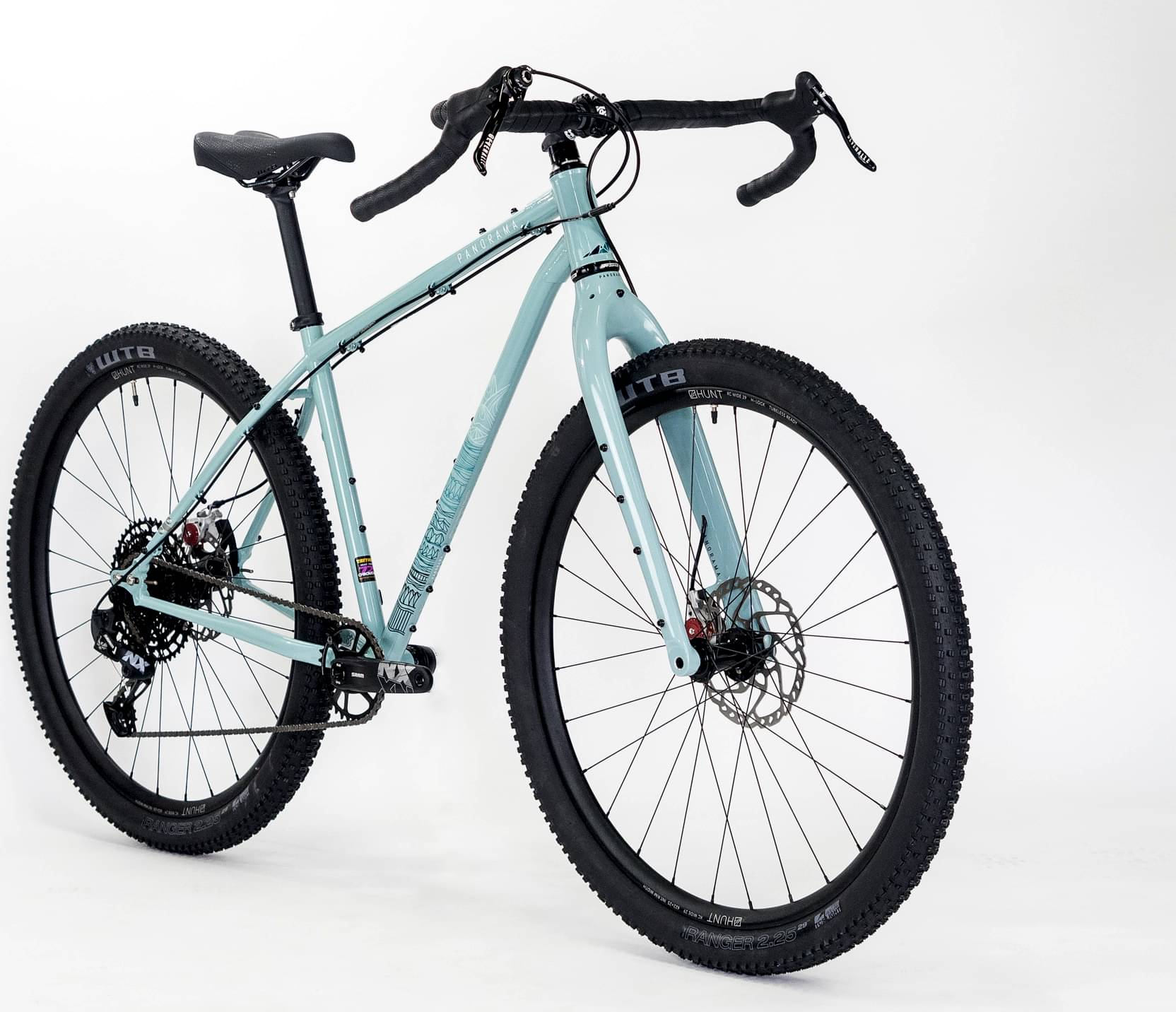

panorama Taïga EXP Rival+Ratio Technology 2023
2023 Road
Estimate price |
2,860$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Rear 100mm -
Groupset GX Eagle, Rival -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REYNOLDS 725 STEEL FRAME, INTERNAL CABLE ROUTING FOR DROPPER SEAT POST, SLIDING DROPOUTS – SINGLE SPEED / ROLHOFF COMPATIBLE, BELT DRIVE COMPATIBLE, POST MOUNT BRAKE STD, REAR RACK MOUNT, TRIPLE WATER BOTTLE MOUNT UNDER AND ON TOP OF THE DOWNTUBE, WATER BOTTLE MOUNT ON SEAT TUBE, GAS TANK MOUNT ON TOP OF TOP TUBE, ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION), 12MMX148MM BOOST REAR SPACING, 73mm BSA BOTTOM BRACKET, TAPERED 1-1/2¨ x 1-1/8¨ HEAD TUBE, HEADSET: TOP ZS44 LOWER EC49, DIA 29.8MM SEAT POST CLAMP, DIA 27.2MM SEAST POST, DIA 28.6MM FRONT DERAILLEUR CLAMP, MAXIMUM TIRE CLEARANCE: 29¨X2.6¨ or 27.5¨X2.8¨, MAX CHAINRINGS: 42T/28T, SUSPENSION FORK COMPATIBLE (GEOMETRY CORRECTED TO 100MM TRAVEL FORK)
Suspension Fork
100% CARBON, TRIPLE CARGO CAGE MOUNTS, 15MMX110MM BOOST SPACING, INTERNAL CABLE ROUTING FOR DYNAMO HUB, TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨, MAX TIRE CLEARANCE : 29¨X2.6¨ or 27.5¨X2.8¨, 480mm LENGTH (100mm SUSPENSION FORK EQUIVALENT AT 25% SAG)
Drivetrain
Rear Derailleur
SRAM GX EAGLE + RATIO TECHNOLOGY KIT
Shift Levers
SRAM RIVAL + RATIO TECHNOLOGY KIT 1X12
Cassette
SRAM NX EAGLE PG1210 11-50T
Crank
RACE FACE AEFFECT, 32T
Bottom Bracket
RACE FACE BSA TEAM
Chain
SRAM NX EAGLE 12 SPEEDS
Pedals
Not included
Wheels
Rims
HUNT TRAIL WIDE MTB, CUSTOM BUILT FOR PANORAMA CYCLES WITH 32 SPOKES
Tires
TERAVAIL EHLINE, 29”X2.3, LIGHT AND SUPPLE
Brakes
Brakes
TRP SPYRE ROAD POST MOUNT
Cockpit
Stem
RACE FACE RIDE, 31.8MMX60MM, 6DEG
Handlebar
RITCHEY VENTURE MAX XL, 31.8MM X 520MM
Headset
FSA NO.9M/CUP/CC/NO.12B
Seat
Saddle
PANORAMA SPEC, 273mm X 148mm
Seatpost
KALLOY SP-3D2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.67 mm | 1.69 mm |
| Front Center | 611 mm | 631 mm | 654 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 100 mm | 95 mm | 95 mm |
| Stack | 600 mm | 628 mm | 656 mm |
| Reach | 371 mm | 375 mm | 388 mm |
| Top Tube Length | 544 mm | 558 mm | 589 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 415 mm | 470 mm | 515 mm |
| Head Tube Angle | 69 ° | 69.7 ° | 69.7 ° |
| Head Tube Length | 92 mm | 120 mm | 150 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1050 mm | 1070 mm | 1093 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 808 mm | 858 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 190 cm |
Model Overview
Taïga EXP Rival+Ratio Technology belongs to the Panorama Taiga model. Panorama launched 7 bikes of this model so far. You can easily view all of the Panorama Taiga bikes models from 2023, here.
Model range prices
Panorama Taïga EXP Gevenalle 2023 is the most affordable bike of this model and has a price of 2566$. On the other hand, Panorama Taïga EXP RIVAL + RATIO TECHNOLOGY 2023, is the most expensive and costs 2856$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Panorama released this model in 2023, its price was 2856$. Comparing the average cost of a Gravel bike to this one, you will see that Taïga EXP Rival+Ratio Technology price is 16% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
Taïga EXP Rival+Ratio Technology has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Taïga EXP Rival+Ratio Technology bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 190 cm (5.31 ft – 6.23 ft). In short, it won’t be difficult to find the right one for you.
