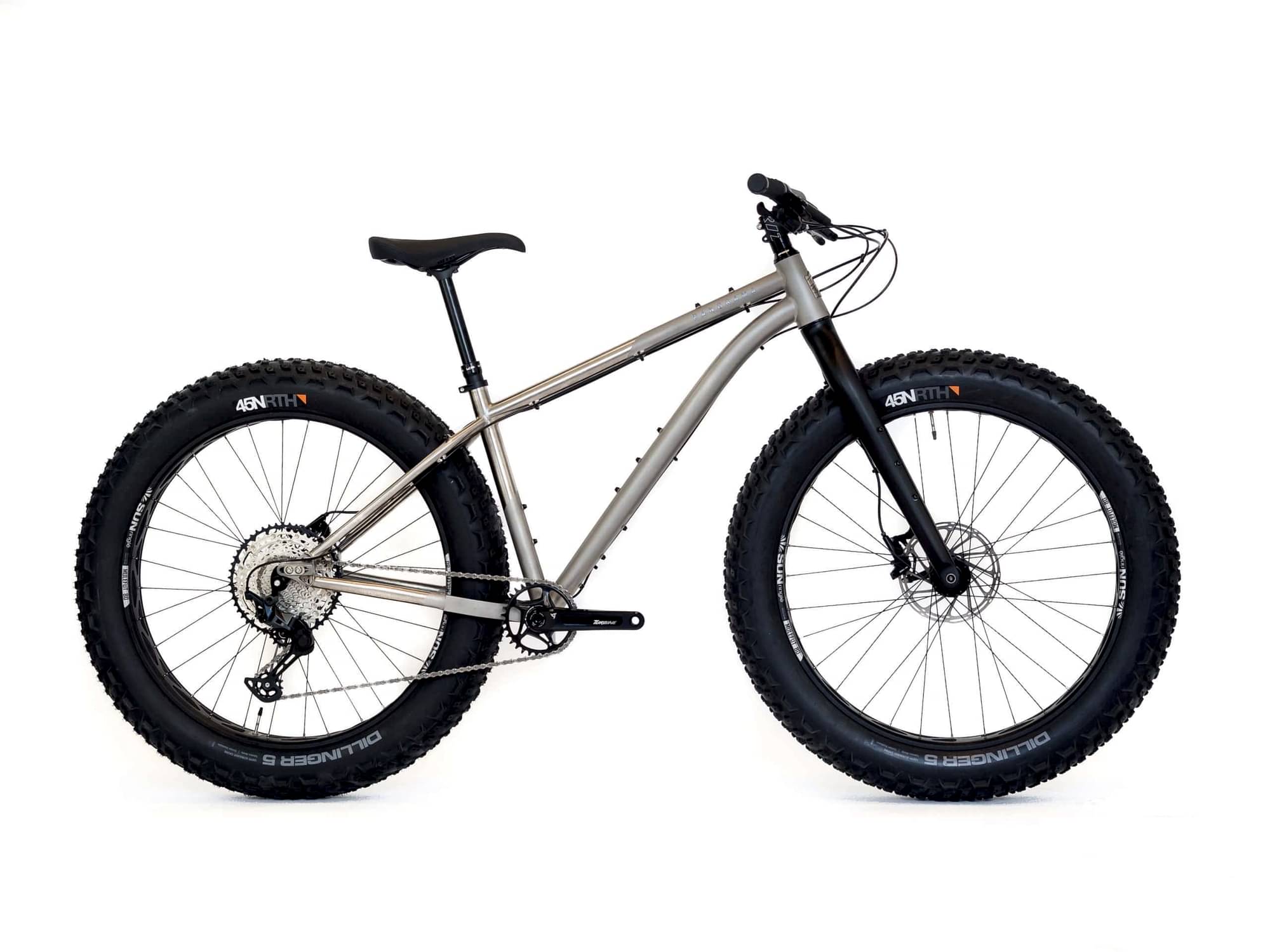

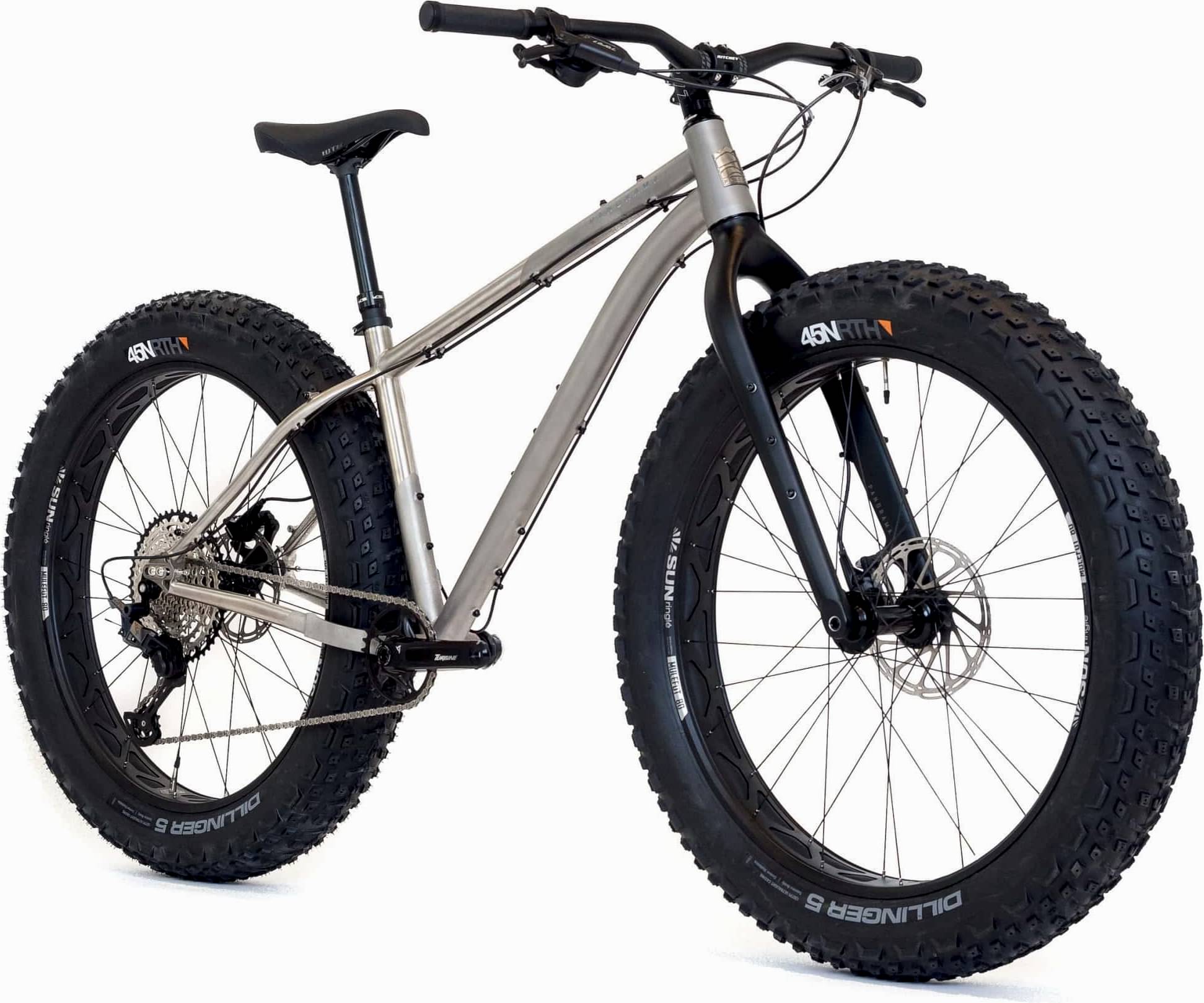

panorama Torngat Ti SLX/Deore 2023
2023 Mountain
Estimate price |
4,052$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 185mm -
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL-2.5V TITANIUM FRAME, CONFIGURABLE Q-FACTOR BETWEEN 185MM/205MM, ADJUSTABLE SLIDING DROPOUTS, SPLIT SEAT STAY – BELT DRIVE DRIVETRAIN (ROHLOFF), INTERNAL CABLE ROUTING FOR DROPPER SEAT POST, POST MOUNT BRAKE STD, REAR RACK MOUNT, TRIPLE WATER BOTTLE MOUNT UNDER AND OVER THE DOWNTUBE, WATER BOTTLE MOUNT ON SEAT TUBE, GAS TANK MOUNT ON TOP OF TOP TUBE, 12MMX177MM REAR SPACING, PF107 BOTTOM BRACKET, TAPERED 1-1/2¨ x 1-1/8¨ HEAD TUBE, DIA 34.9MM SEAT POST CLAMP, DIA 31.6MM SEAST POST, HEADSET: TOP ZS44 LOWER ZS56, MAXIMUM TIRE CLEARANCE: 27.5¨X4.5¨ (Q-FACTOR 205); 27.5¨X4¨ OU 29¨X3¨ (Q-FACTOR 185), BRUSHED/BEADBLASTED FINISH WITH ANODIZED AND LASER-ENGRAVED LOGOS
Suspension Fork
CUSTOM CARBON CONSTRUCTION, AXLE TO CROWN ADAPTED TO 120MM SUSPENSION (29”), THREE PACK MOUNTS ON EACH SIDE, 15MMX150MM AXLE, TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨, MAXIMUM TIRE CLEARANCE: 27.5¨X4.5¨; 26¨X5¨ ; 29¨X3¨
Drivetrain
Rear Derailleur
SHIMANO SLX M7100, 12s,
Shift Levers
SHIMANO SLX M7100, 12s,
Cassette
SHIMANO DEORE M6100-12, 10-51T, 12s,
Crank
RACE FACE TURBINE, 170MM, CINCH, 2X SPINDLES INCLUDED
Bottom Bracket
RACE FACE PF 30mm SPINDLE
Chain
KMC X12, 12s
Pedals
Not included
Wheels
Rims
SUN RINGLE MULEFÜT 80SL V2, 27.5?, 32 HOLES, SUNRINGLE SRC MICROSPLINE HUB,
Tires
VEE SNOW AVALANCHE 27.5X4.5?, 120TPI, TUBELESS READY, STUDDABLE, OPTION2
Brakes
Brakes
SRAM LEVEL,
Cockpit
Stem
OPTION 1: RITCHEY MTB trail, Alloy 31.8X45mm, OPTION 2: RACE FACE RIDE, 35MM, 50MM X 6DEG
Handlebar
OPTION 1: RITCHEY MTN Comp 10D Rizer, 31.8x800mm, 20mm rise, 10D backswept, OPTION 2: RACE FACE CHESTER 35MM, 35MM RISE, 780MM
Headset
FSA NO.9M/NO.12B
Seat
Saddle
WTB PURE
Seatpost
KS E20I DROPPER POST, 100/125/150MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.4 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Front Center | 686 mm | 725 mm | 741 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 101 mm | 93 mm | 100 mm |
| Stack | 609 mm | 617 mm | 632 mm |
| Reach | 408 mm | 437 mm | 453 mm |
| Top Tube Length | 582 mm | 609 mm | 634 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 425 mm | 480 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1124 mm | 1163 mm | 1179 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 699 mm | 742 mm | 808 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 166 cm | 176 cm |
| Rider Max Height | 169 cm | 179 cm | 195 cm |
About this model
Torngat Ti SLX/Deore completes the Panorama Torngat model. 5 bikes variations carry this model name so far. Take a sneak peek at all Panorama Torngat bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Panorama Torngat 27.5 SUN RINGLE MULEFÜT 80SL V2, 27.5”, 32 HOLES 2023 has a starting price of 2313$. Panorama Torngat Ti SLX/XT 2023 on the other hand is the most expensive at 4143$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4045$. Comparing this to the average Fatbike bike price, we see that the price is 132.07% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Torngat Ti SLX/Deore components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Torngat Ti SLX/Deore bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Torngat Ti SLX/Deore comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 154 cm – 195 cm (5.05 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Panorama Torngat Ti SLX/Deore comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
