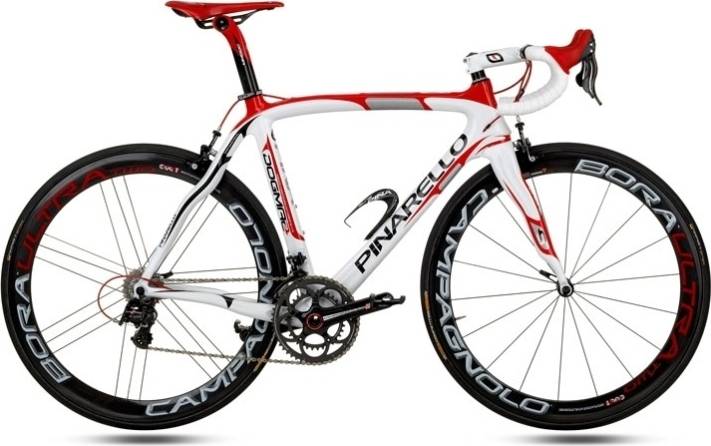

Pinarello Dogma 2 Frameset 2019
2019 Road
Estimate price |
5,750$
Weight | 0.92 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon 60HM1K Torayca
Suspension Fork
Onda Carbon 60HM1K 1” 1/8 - 1” 1/4 integral system
Drivetrain
Front Derailleur
Braze-On Required
Bottom Bracket
70mm / Italian
Cockpit
Headset
Pinarello Integrated
Seat
Seatpost
Most Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 499 mm | 504 mm | 516 mm | 526 mm | 536 mm | 546 mm | 551 mm | 558 mm | 566 mm | 576 mm | 588 mm | 621 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 435 mm | 455 mm | 480 mm | 515 mm | 530 mm | 545 mm | 555 mm | 565 mm | 575 mm | 590 mm | 610 mm | 635 mm |
| Head Tube Angle | 69.15 ° | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 135 mm | 149 mm | 157 mm | 168 mm | 175 mm | 189 mm | 215 mm | 255 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma 2 Frameset is part of the Pinarello Dogma model. 171 frames variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pinarello Dogma F10 Disk Frameset 2019 is the cheapest frame model and costs 4999$. Pinarello Dogma FS Frameset 2019 is the most expensive one and costs 10000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 5750$. In conclusion, this frame price is 135.17% higher than the price of the average Race frame.
Race frames average weight
Race frames weigh an average of 1.41 kg (3.11 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Dogma 2 Frameset has a weight of 0.92 kg (2.03 lbs). To sum up, it’s 53.26% lighter than the average weight of Race frames.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
