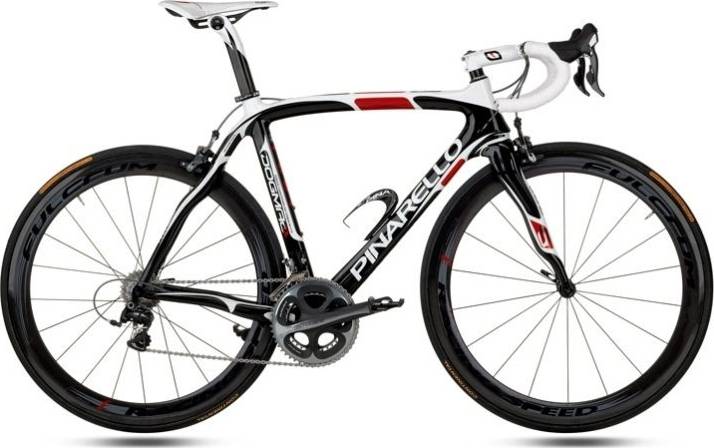

Pinarello Dogma 2 Frameset 2020
2020 Road
Estimate price |
5,750$
Weight | 0.92 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon 60HM1K Torayca
Suspension Fork
Onda Carbon 60HM1K 1” 1/8 - 1” 1/4 integral system
Drivetrain
Front Derailleur
Braze-On Required
Bottom Bracket
70mm / Italian
Cockpit
Headset
Pinarello Integrated
Seat
Seatpost
Most Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 499 mm | 504 mm | 516 mm | 526 mm | 536 mm | 546 mm | 551 mm | 558 mm | 566 mm | 576 mm | 588 mm | 621 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 435 mm | 455 mm | 480 mm | 515 mm | 530 mm | 545 mm | 555 mm | 565 mm | 575 mm | 590 mm | 610 mm | 635 mm |
| Head Tube Angle | 69.15 ° | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 135 mm | 149 mm | 157 mm | 168 mm | 175 mm | 189 mm | 215 mm | 255 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma 2 Frameset belongs to the Pinarello Dogma model. There are 171 frames that carry this model name. Take a sneak peek at all Pinarello Dogma frames models from 2020, by clicking here.
Model range prices
The most economical model, the Pinarello Dogma 60.1 Frameset 2020 has a starting price of 5500$. Pinarello Dogma FS Frameset 2020 on the other hand is the most expensive at 10000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Pinarello Dogma 2 Frameset price was 5750$. Comparing the average cost of a Race frame to this one, you will see that Dogma 2 Frameset price is 135.17% higher.
Average weight for Race frames
Race frames have an average weight of 1.41 kg (3.11 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 0.92 kg (2.03 lbs), Pinarello frame is much lighter than average. To sum up, it’s 53.26% lighter than the average weight of Race frames.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
